Product Description
DESCRIPTION AND FEATURES

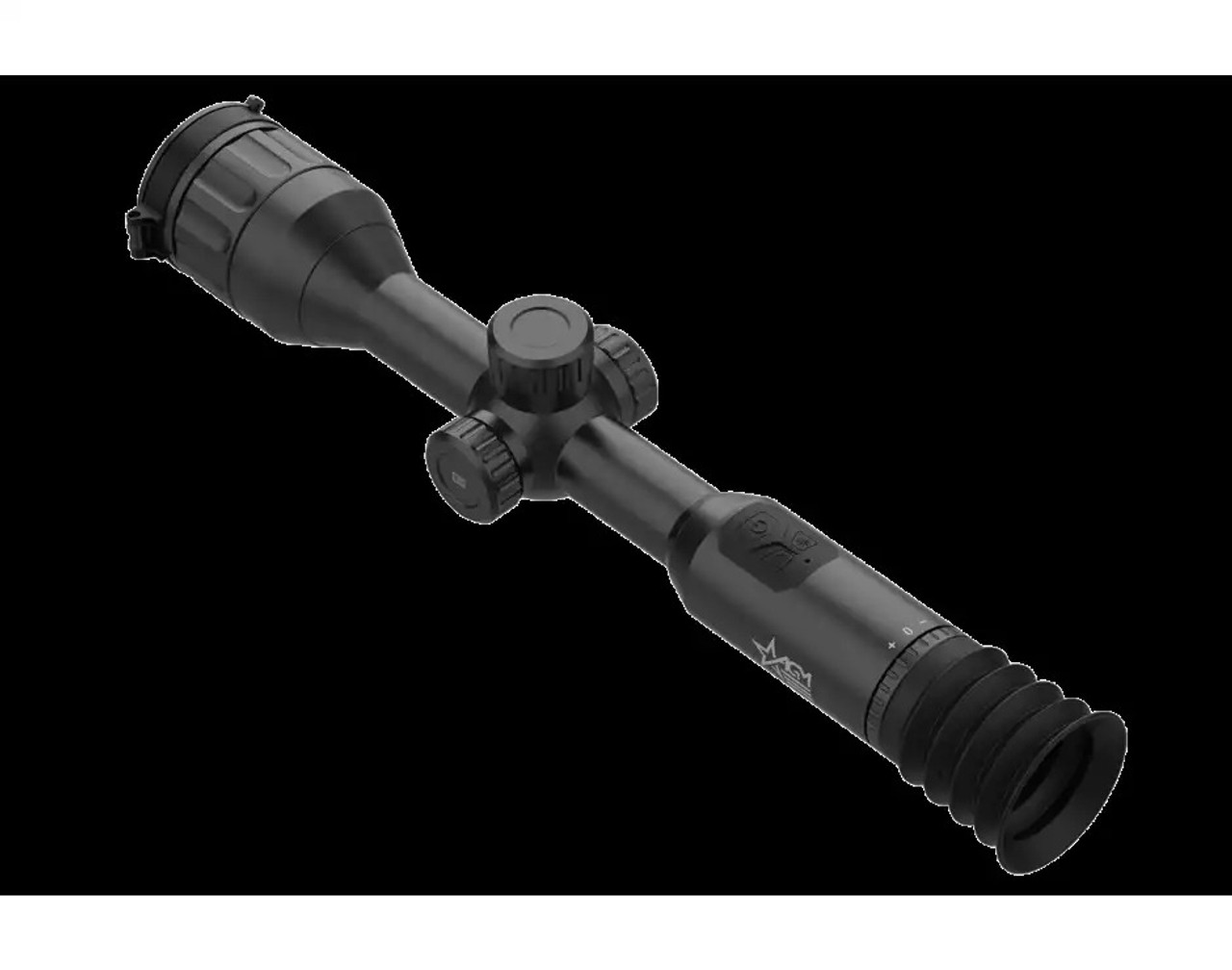

AGM Adder is the thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 35mm lens designed for medium range shooting, while the 50mm lens model will be great for long range missions.
Riflescope has 640×512 high-sensitivity thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.
The scope is equipped with unique dual power system. Two builtin 18650 rechargeable batteries with one CR123A replaceable Lithium battery provide up to 15 hours of continuous operation. The device has fast 64GB EMMC storage for on-board video recording and image capturing. Shot Activated Recording (SAR) function allows you not to worry about having to start recording manually each time. Wi-Fi module for live video streaming and video/images recording via application are also available. AGM Adder scope has the ability to work in conjunction with an external laser rangefinder. Data transfer between the optional rangefinder and the scope is carried out via Bluetooth connection.
The Adder can be mounted to the weapon using standard scope mounts for 30mm tubes. The traditional-style 30mm tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extreme detection range of up to 2600 meters.
- 640×512 thermal resolution
- 12μm high-sensitivity detector
- Fast 50 Hz imaging
- High-resolution OLED display
- 1x, 2x, 4x, 8x digital zoom
- On-board video and audio recording
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Fast 64GB EMMC built-in storage
Refresh rate: 50 Hz
Resolution: 640×512
FOV: 8.7° × 7.0°
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
SPECIFICATIONS
Palettes: Black Hot, White Hot, Red Hot, Fusion
Reticle: 5 types, 4 colors, on/off
Boresight Adjustment: Digital Controlled
Boresight Increment: 0.15 mil / 0.51 MOA
Distance Measurement: Yes (Stadiametric); Optional Laser Rangefinder
Scene Mode: Jungle, Recognition
Picture In Picture Mode (PIP): Yes
Video Recording: Yes
Defective Pixels Correction (DPC): Yes
Uniformity Correction: Auto, Manual, External Correction
Detector type: 12μm, Uncooled, 50 Hz, < 35 mK (25°C, F# = 1.0)
Standby Mode: Yes
Resolution: 640 × 512
Detection Range: 2600 m/yd
Lens system: 50 mm; F/1.0
Optical magnification: 2.5× - 20×
Field of view (H × X): 8.7° × 7.0°
Digital zoom: 1×, 2×, 4×, 8×
Diopter adjustment range: -5 to +5 dpt
Eye relief: ≥ 60 mm
Display: 1024×768, 50 Hz, OLED
Storage: 64 GB EMMC
Battery Type: Two 18650 Rechargeable Batteries (built-in) and one CR123 Battery
CVBS Output: Yes (via USB)
Battery Life (Operating): Up to 12 hr
Power supply: 5 VDC/2 A, USB Type-C Supports QC3.0
Operating Temperature Range: -30°C to +55°C (-22°F to +131°F)
Degree of Protection: IP67
Weight: 970 g ( 2.14 lb)
Overall Dimensions: 420 × 78 × 82 mm (16.5 × 3.1 × 3.2 in)
