Product Description
DESCRIPTION AND FEATURES

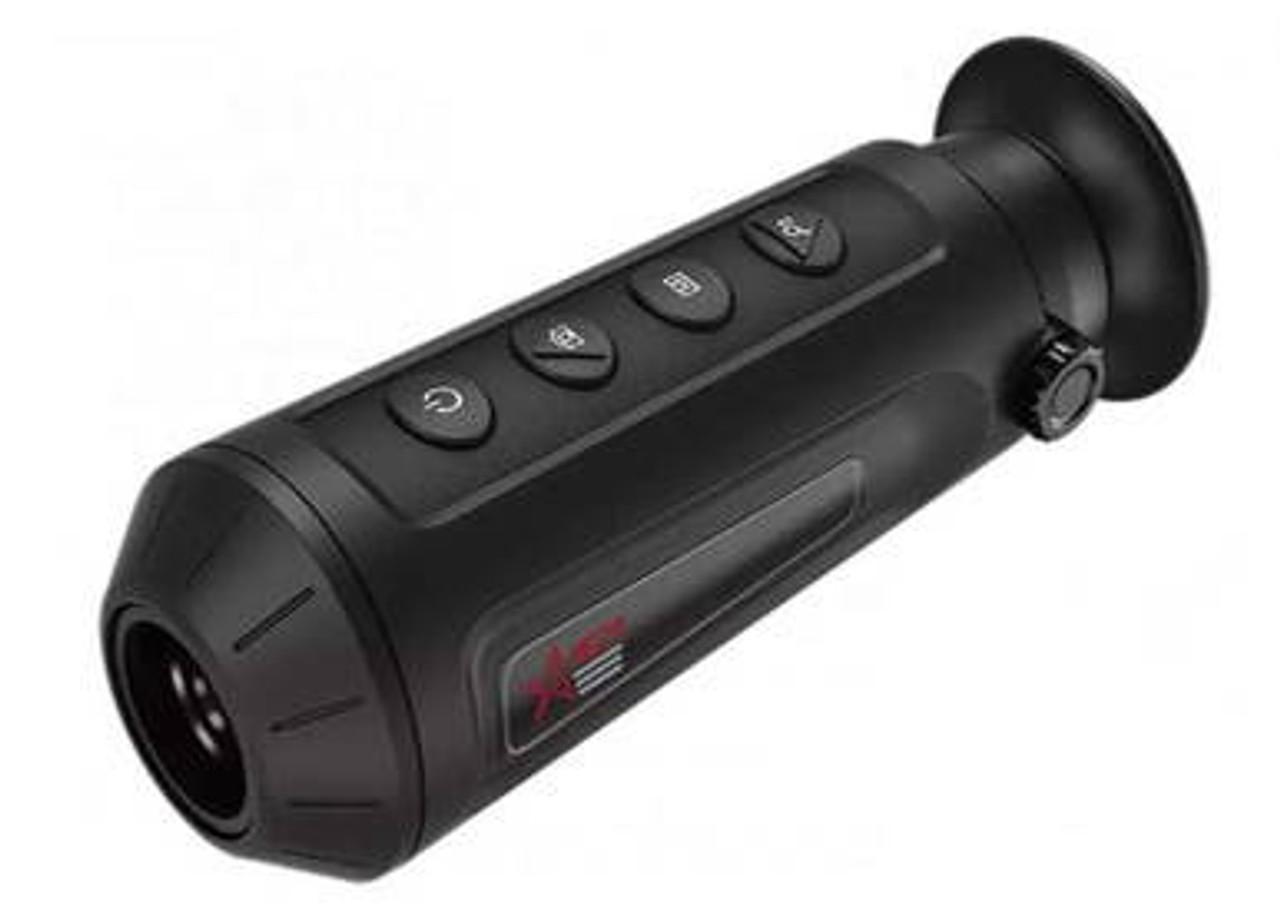

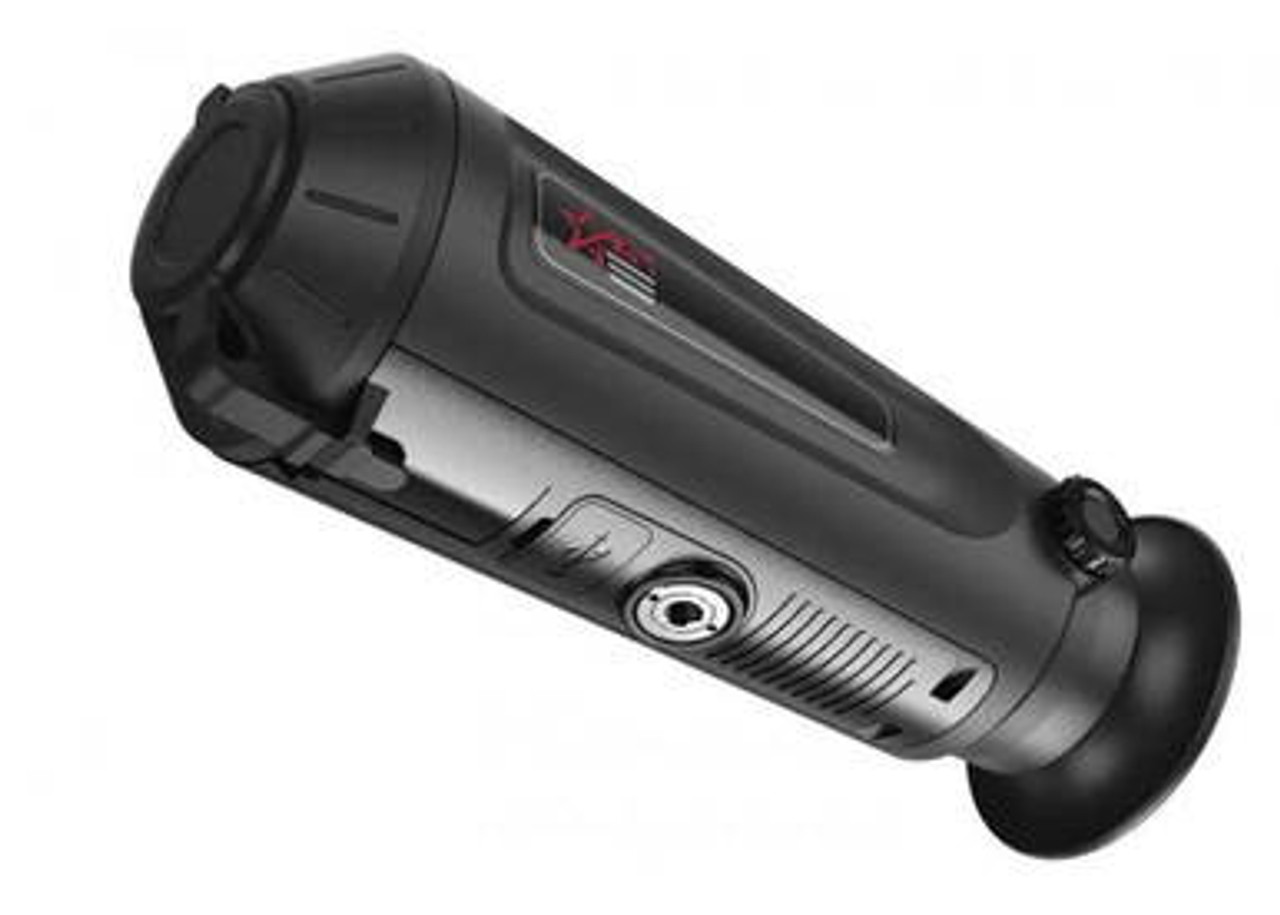

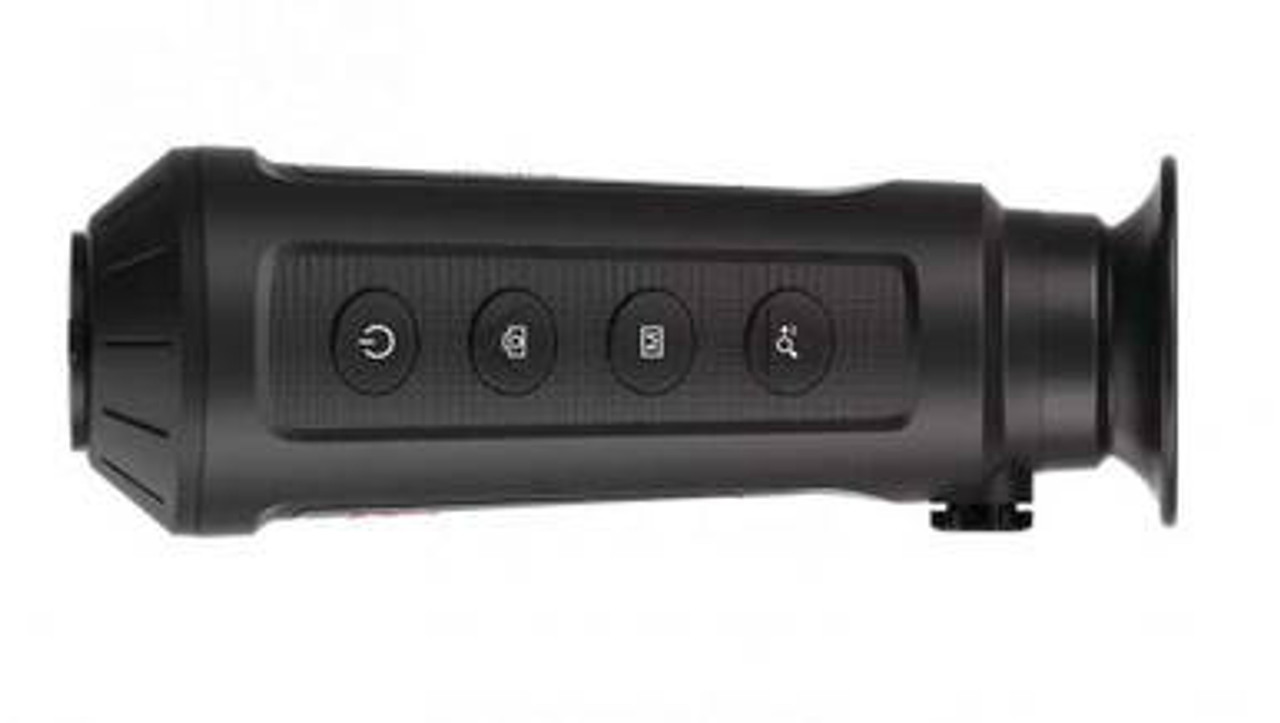

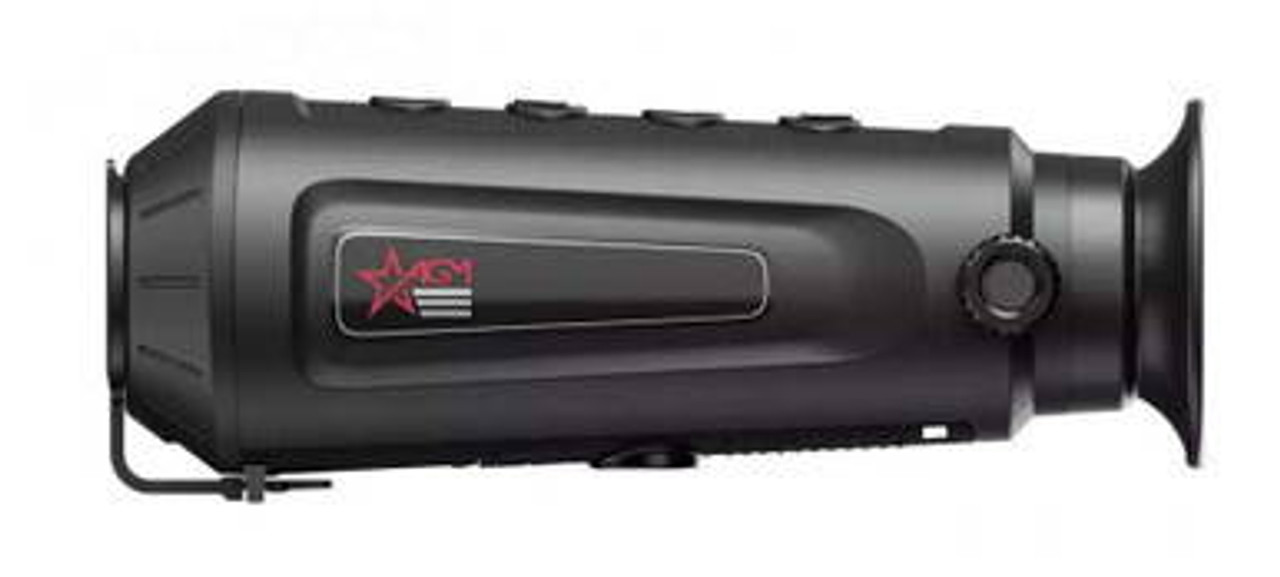

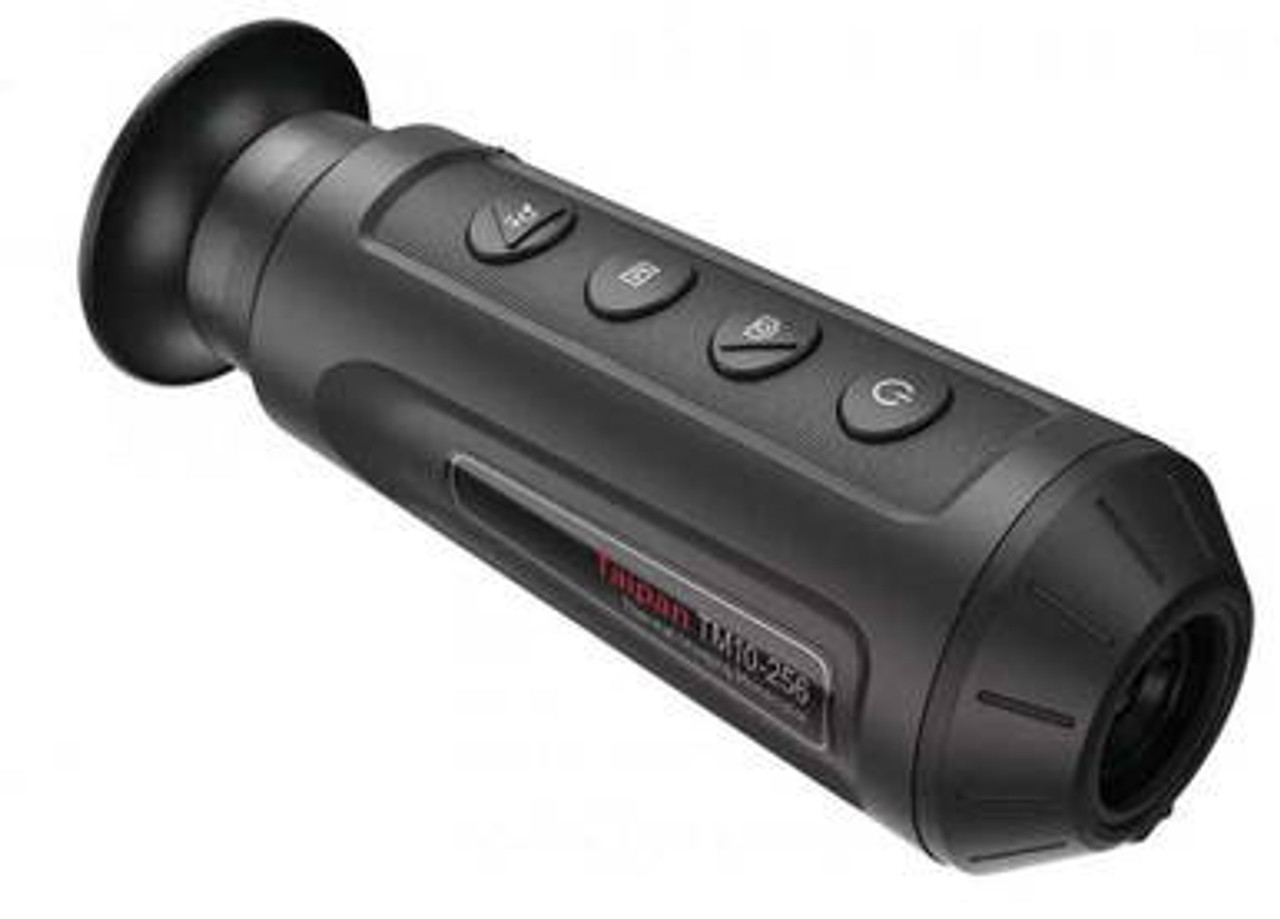

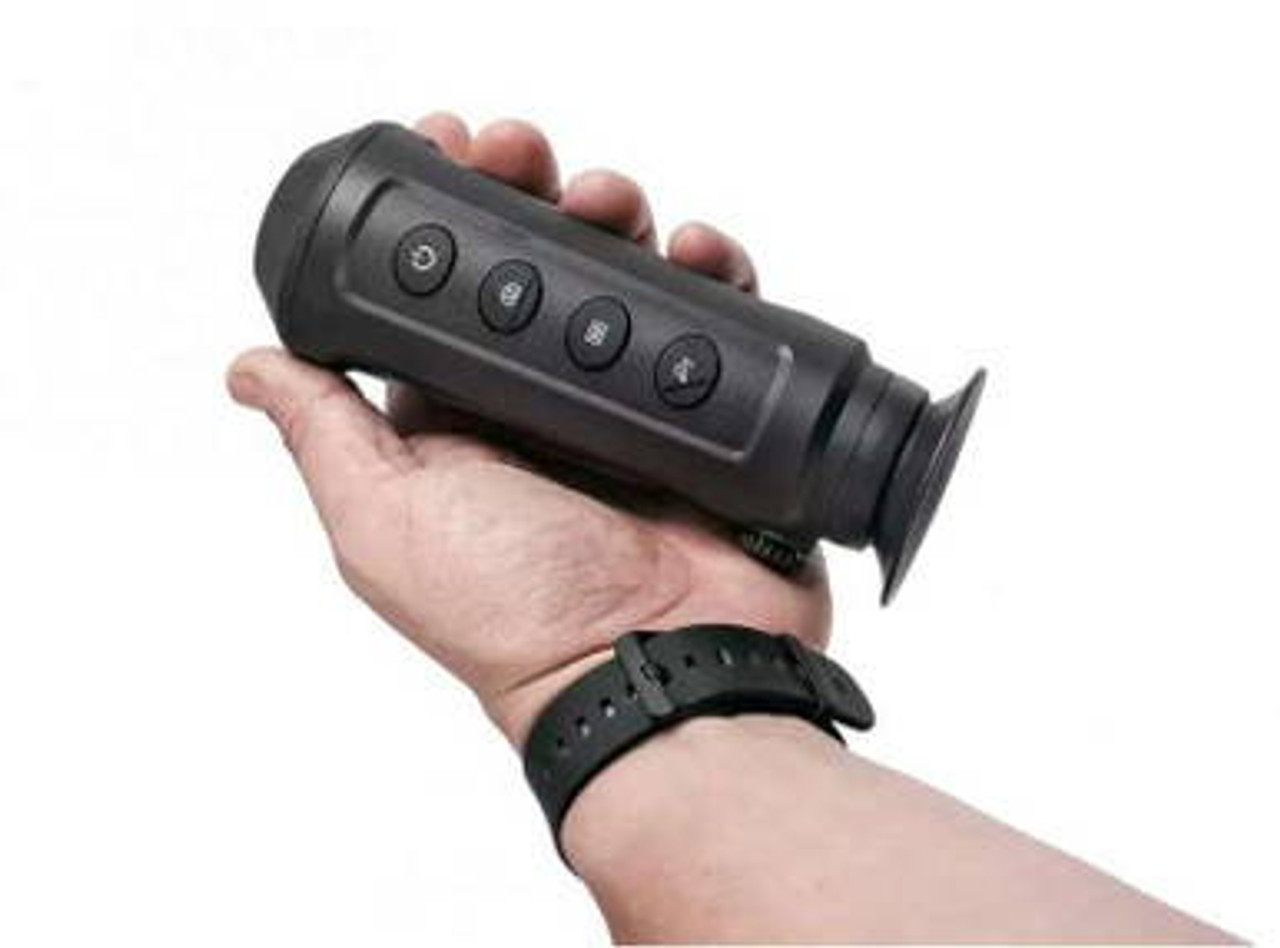

The Taipan TM10-256 handheld observational thermal monocular is equipped with a 256×192 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.
Warning: California's Proposition 65
FUNCTIONS:
Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
- 256×192 resolution, 12 μm, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR
- 720 × 540 LCOS display
- Built-in rechargeable Lithium battery
- Up to 8 hours continuous running (with Wi-Fi hotspot function off)
- “Auto Power Off” and “Sleep” modes
- Wi-Fi hotspot
- Type-C interface
- Limited 3-year warranty
Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Refresh rate: Sensor 25 Hz / OLED 50 Hz
Resolution: 256x192
FOV: 18.00° × 13.55°
SPECIFICATIONS

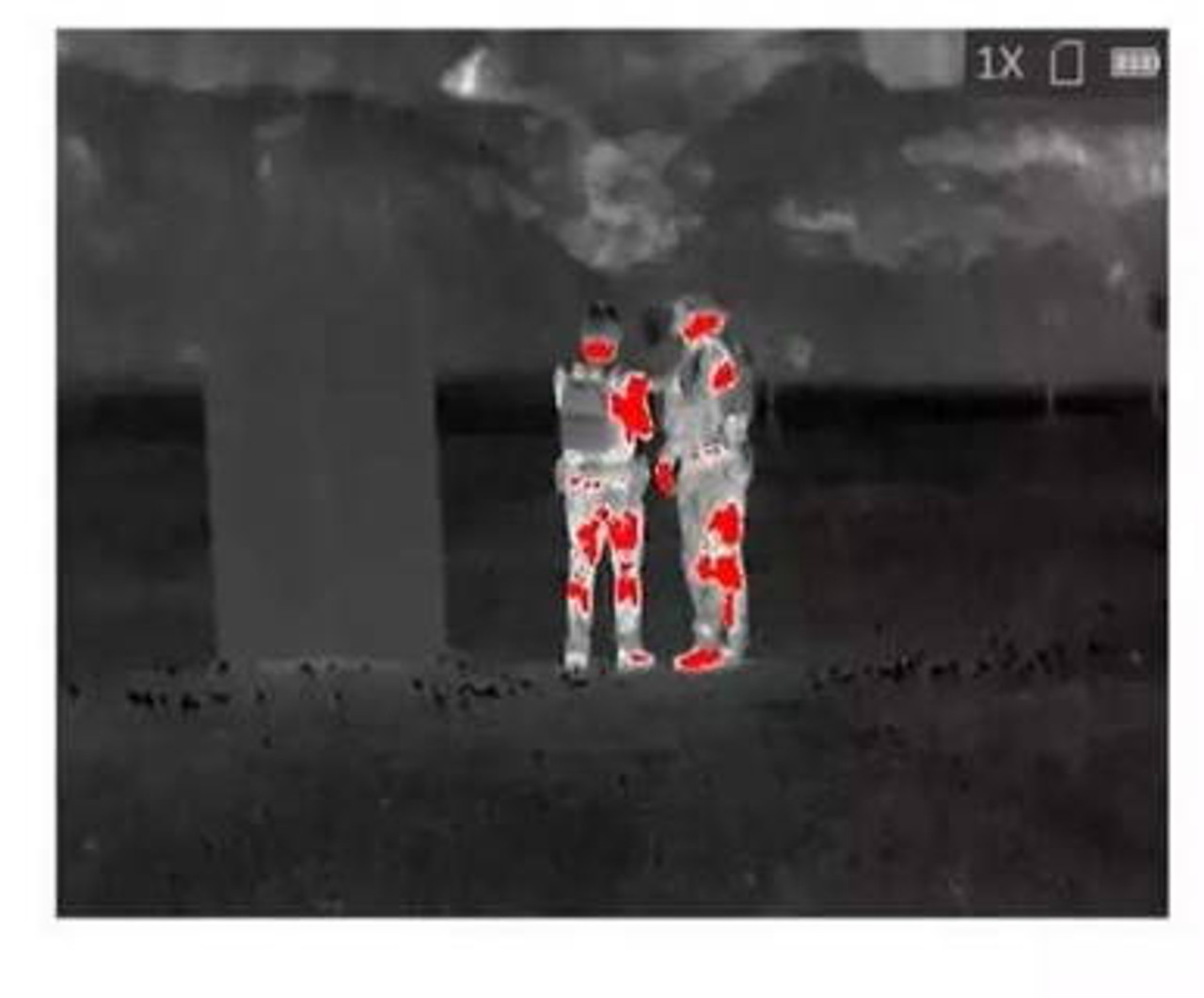

Palettes - Black Hot, White Hot, Red Hot, Fusion
Working Temperature -20°C to 55°C (-4°F to 131°F)
Interface - USB Type-C
Pixel Interval - 12 μm
Multi Language menu - Yes
Drop Test Height - 1.5 m (4.9 feet)
Detector type - Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband - 8μm to 14μm
FFC (Flat Field Correction) - Auto, Manual, External Correction
Highest Temperature Spot Tracking - Yes
Standby Mode - Yes
Refresh rate - Sensor 25 Hz / OLED 50 Hz
Aperture - F1.0
Resolution - 256×192
Detection Range - 458 m
NETD - Less than 35 mk (@25°C), F#=1.0
Lens (focal length) - 10 mm
Power - 5 VDC/2 A, 1.5 W
Field of view (H × X) - 18.00° × 13.55° (H × V)
Digital zoom - 1×, 2×, 4×, 8×
Monitor - 720×540, 0.2 inch, LCOS
Storage - Built-in memory module (8 GB)
Record Video - On-board video recording
Capture Snapshot - Yes
Battery Type - Built-in rechargeable Lithium battery
Wi-Fi - Yes
CVBS Output - Yes (via USB)
Battery Operating Time - Up to 8 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display - Yes
Weight - 260 g (0.57 lb)
Overall Dimensions - 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)
Protection Level - IP67
