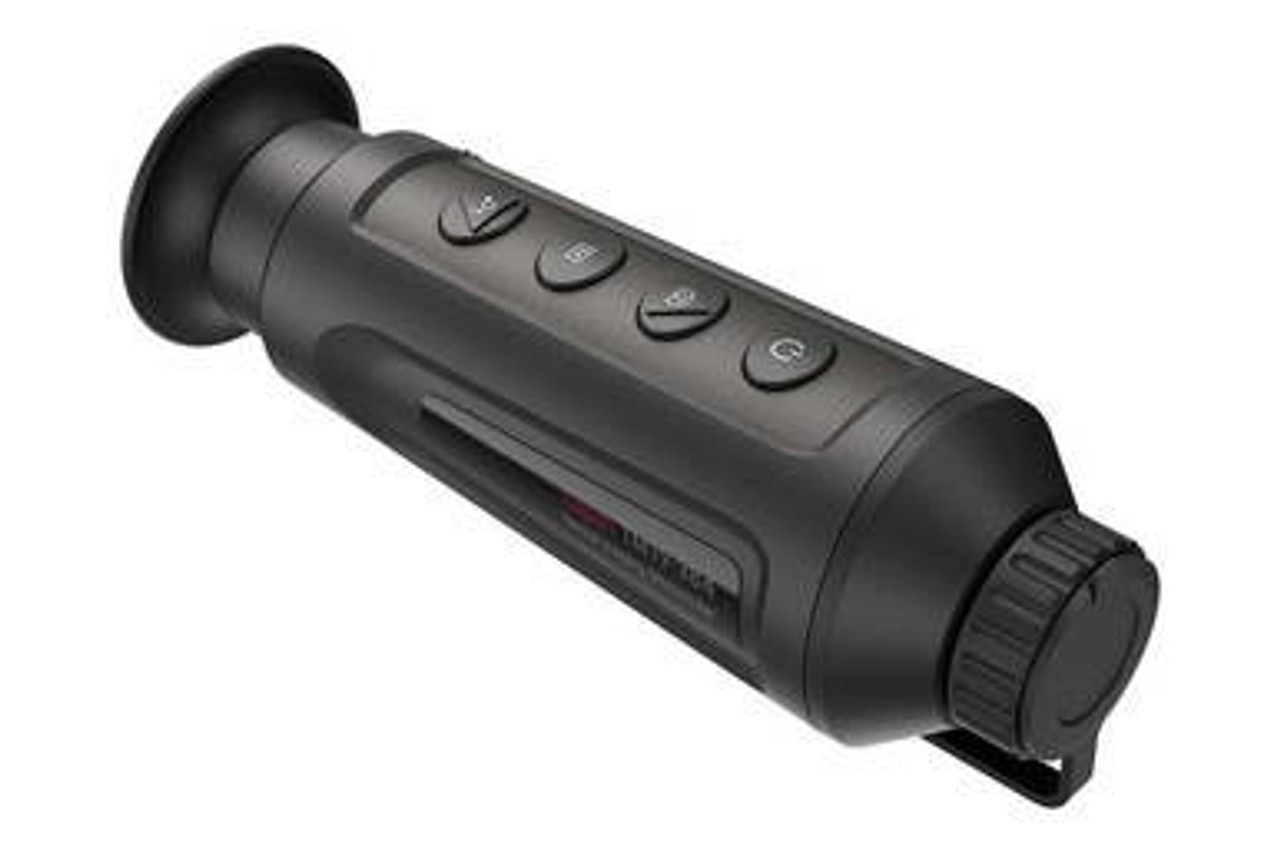

AGM Taipan TM19-384 Thermal Imaging Monocular 12 Micron 384x288 (50 Hz)

DESCRIPTION AND FEATURES

The Taipan handheld observational thermal monocular is equipped with a 384×288 infrared detector and a 1280×960 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.

FUNCTIONS:

Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark: The device detects and marks the hot spot of highest temperature.

Mode Switch: Device supports pallet switch and distance measurement.

Storage: Built-in memory module supports video recording/snapshot capturing.

Digital Zoom: Device supports 1×, 2×, 4×, and 8× digital zoom.

Wi-Fi Hotspot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

384×288 resolution, 12 μm, high sensitivity detector

Adaptive AGC, DDE, 3D DNR

1280 × 960 resolution 0.4-inch LCOS display

Built-in rechargeable Lithium battery

More than 7.5 hours continuous running (with Wi-Fi hotspot function off)

Wi-Fi hotspot

Type-C interface

Limited 3-year warranty

SPECIFICATIONS:

Interface: USB Type-CPixel Interval12 μm

Multi Language menu: Yes

Drop Test Height: 1.5 m (4.9 feet)

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband: 8μm to 14μm

FFC (Flat Field Correction): Auto, Manual, External Correction

Highest Temperature Spot Tracking: Yes

Standby Mode: Yes

Refresh rate: 50 Hz

Aperture: F1.0

Resolution384×288

Detection Range: 897 m

NETD: Less than 35 mk (@25°C), F#=1.0

Lens (focal length): 19 mm

Power: 5 VDC/2 A, 1.5 WField of view (H × X)13.8° × 10.4° (H × V)

Digital zoom: 2×, 4×, 8×

Monitor: 1280×960, 0.4 inch, LCOS

Imaging palettes: Black Hot, White Hot, Red Hot, Fusion

Storage: Built-in memory module (8 GB)

Record Video: On-board video recording

Capture Snapshot: Yes

Battery Type: Built-in rechargeable Lithium battery

Wi-Fi: Yes

CVBS Output: Yes (via USB)

Battery Operating Time: More than 7.5 hours continuous running (with Wi-Fi hotspot function off)

Battery Capacity Display: Yes

Weight: 310 g (0.68 lb)

Working Temperature/ Humidity: -20°C to 55°C (-4°F to 131°F)

Overall Dimensions: 171 × 61 × 57 mm (6.73 × 2.4 × 2.2 in)

Protection Level: IP67
