Product Description
DESCRIPTION AND FEATURES

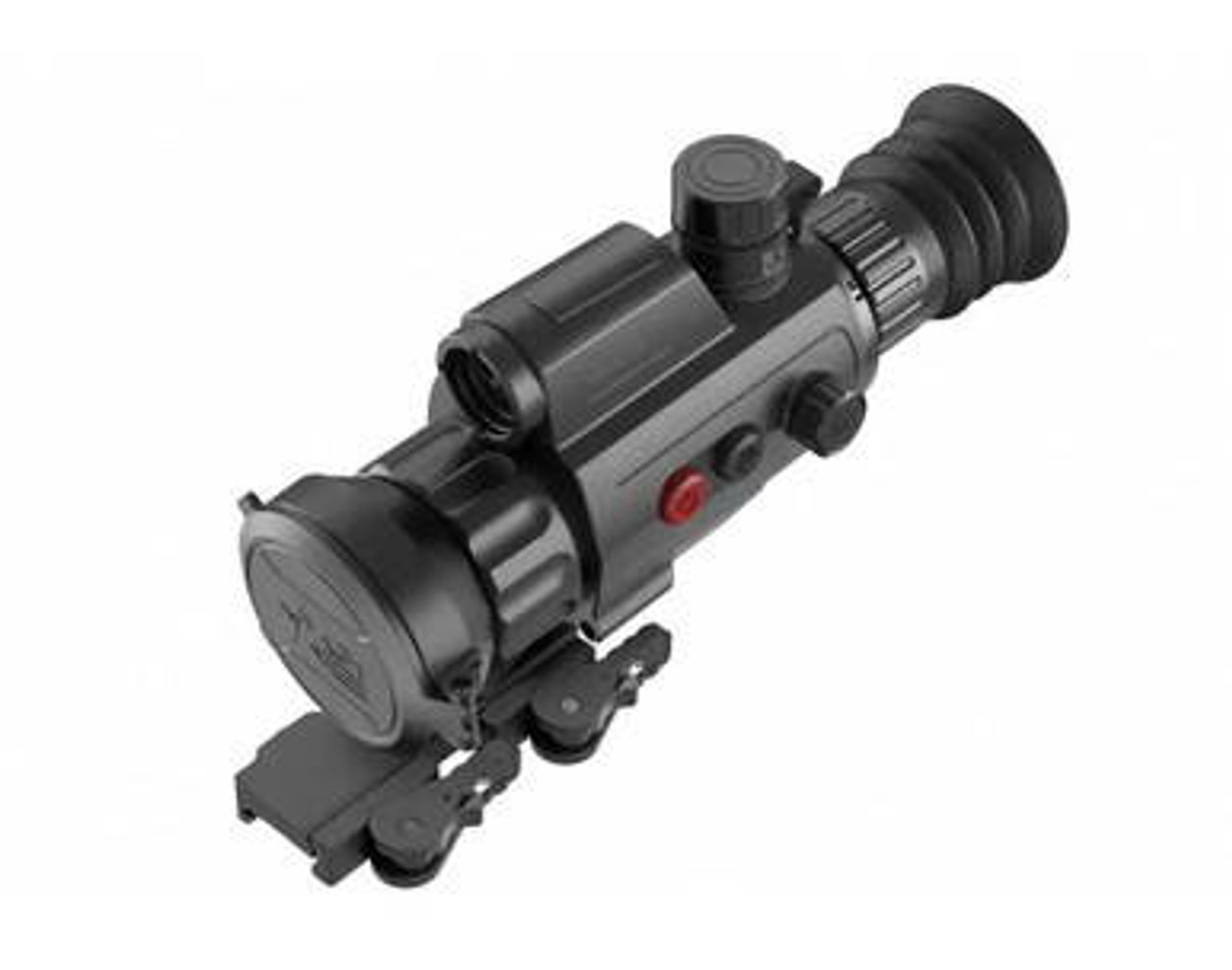

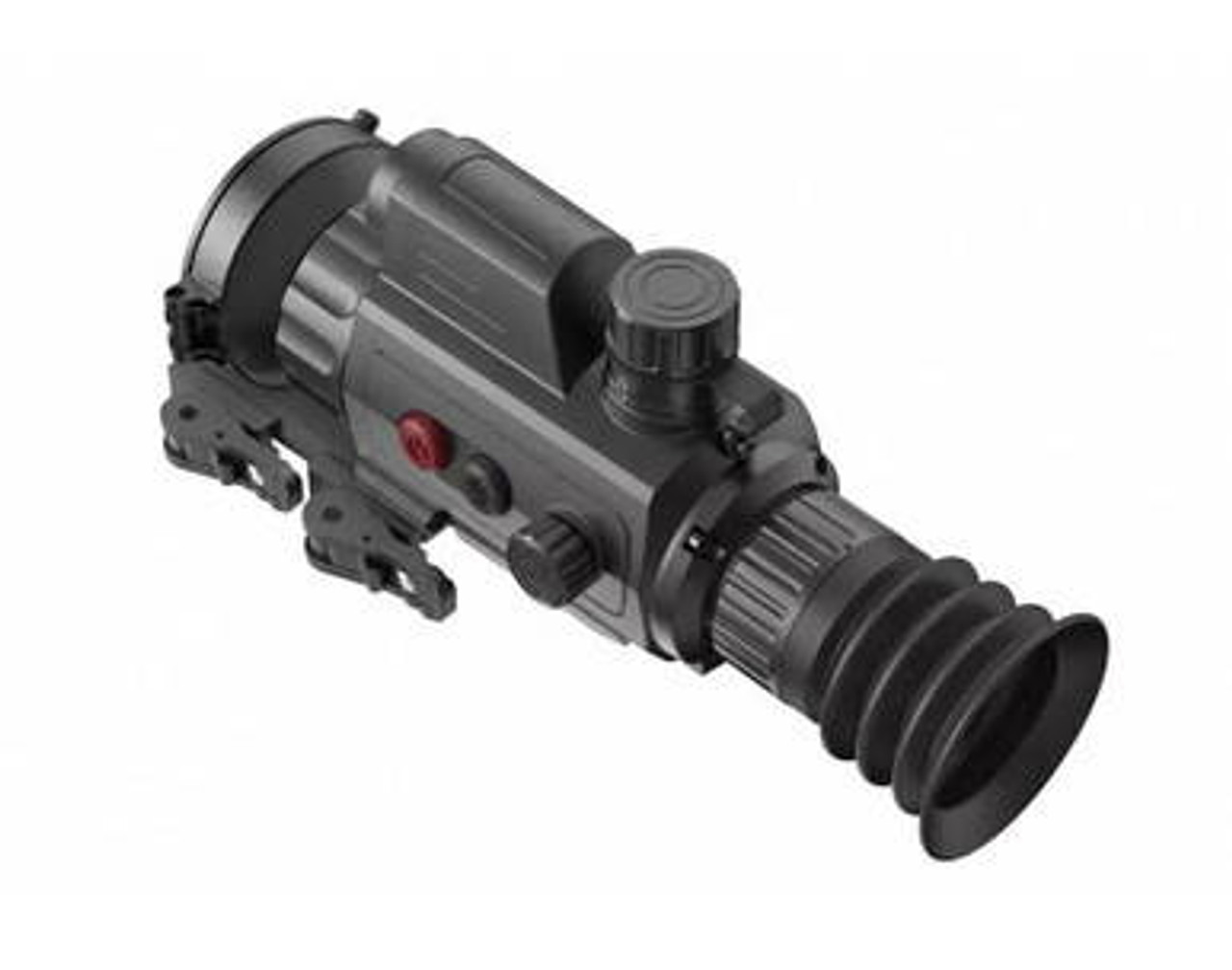

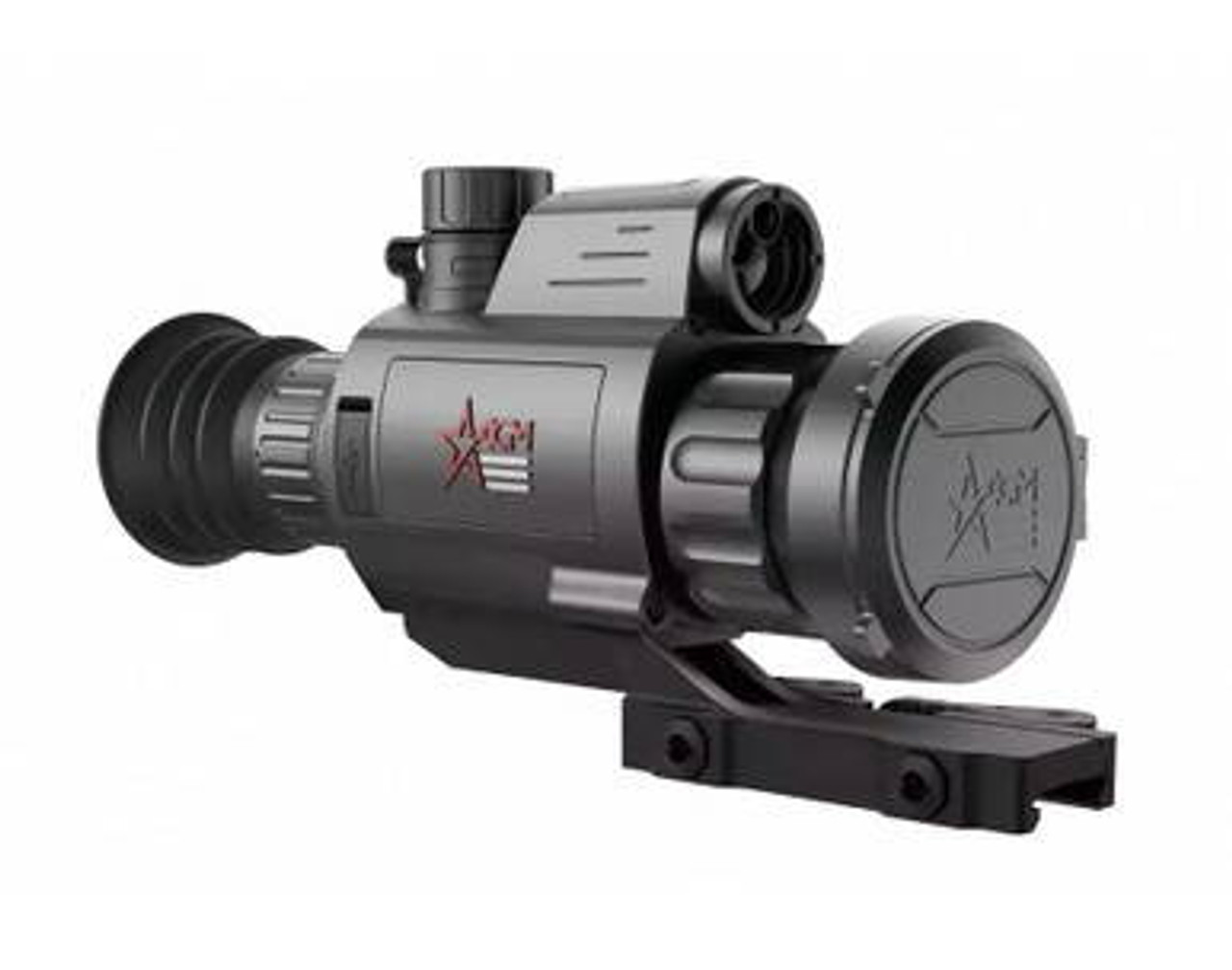

The AGM Varmint LRF TS50-640 scope is a compact thermal imaging scope developed for 24-hour operation under any weather and environmental conditions. Available in multiple configurations: 384x288(50 Hz) thermal detector or 640x512 (50 Hz) thermal detector, and 35mm or 50mm objective lens. These options allow the customer to choose the perfect unit for their needs. The 35mm lens is designed for medium-range applications, while the 50mm lens will be better suited for long-range engagements.
Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Varmint LRF provides a clear image under harsh environment conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The device can be used as a thermal riflescope or handheld monocular, and can be applied to scenarios such as patrolling, hunting, static observation, and more.
The built-in laser range finder of the AGM Varmint LRF is designed to determine the exact distance between the observer and the target. Measurement results are displayed on the scopes monitor. One 18650 rechargeable battery gives the device up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on-board video recording and image capturing. An internal Wi-Fi module for live video streaming and video/image recording via application are also included.
Warning: California's Proposition 65
- 12μm high sensitivity thermal detector
- Fast 50Hz imaging
- 1x, 2x, 4x, 8x Digital zoom
- Adjustable color palettes
- Built-in laser rangefinder
- High resolution OLED display
- Various reticle types and colors
- On-board video recording and snapshot
- Built-in EMMC storage (16 GB)
- Wi-Fi data transmission
- Standby mode
- Up to 4.5 hours continuous runtime
- External power supply compatibility
- Waterproof & shockproof
- Limited 3-year warranty
CHARACTERISTICS:
Detector type: 12 μm VOx Uncooled Focal Plane Arrays
Refresh rate: 50Hz
Resolution: 640 × 512
FOV: 8.78° × 7.03°
DOWNLOADS:
EXPORT RESTRICTIONS:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
SPECIFICATIONS
Palettes - Black Hot, White Hot, Red Hot, Fusion
Reticle - 5 types, 4 colors, on/off
Drop Test Height - 1.5 m (4.9 ft)
Boresight Adjustment - Digital Controlled
Boresight Increment - 0.15 mil / 0.51 MOA
Scene Mode - Yes
Picture In Picture Mode (PIP) - Yes
Hotspot - Yes
Observation Distance - 2,500 m
Detector type - 12 μm VOx Uncooled Focal Plane Arrays
Response Waveband - 8 μm to 14 μm
FFC (Flat Field Correction) - Auto, Manual, External Correction
Highest Temperature Spot Tracking - Yes
Standby Mode - Yes
Refresh rate - Sensor 50Hz / OLED 50Hz
Aperture - F1.0
Resolution - 640 × 512
Laser Rangefinder - Up to 600 m, ±2 m accuracy
Laser Wavelength - 905 nm
Optical magnification - 2.5x – 32x
Lens (focal length) - 50 mm
Field of view (H × X) - 8.78° × 7.03°
Digital zoom - 1x, 2x, 4x, 8x
Monitor - 1024x768, 0.39 inch, OLED
Eye relief - 45 mm
Storage - Built-in 16 GB EMMC
Record Video - On-board video recording
Capture Snapshot - Yes
Battery Type - One 18650 (3.7V) Lithium Rechargeable Batteries
CVBS Output - Yes (via USB)
Battery Operating Time - Up to 4.5 hours
Battery Capacity Display - Yes
External power supply - 5 VDC/2 A, USB Type-C
Operating Temperature Range -20°C to 55°C (-4°F to 131°F)
Weight - 776 g (1.7 lb)
Overall Dimensions - 217 × 78 × 106 mm (8.5 × 3.1 × 4.2 in)
Protection Level - IP67
