Product Description

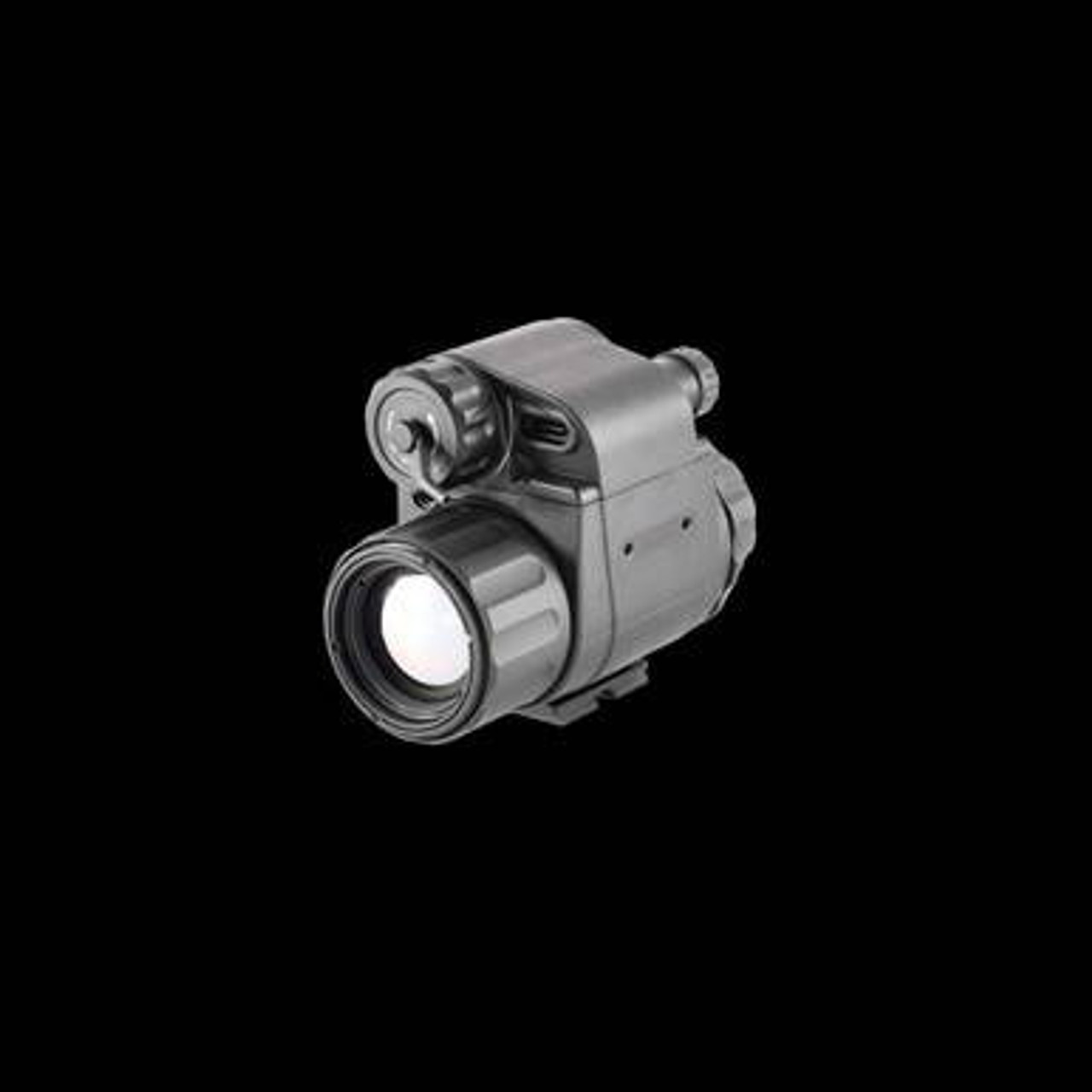

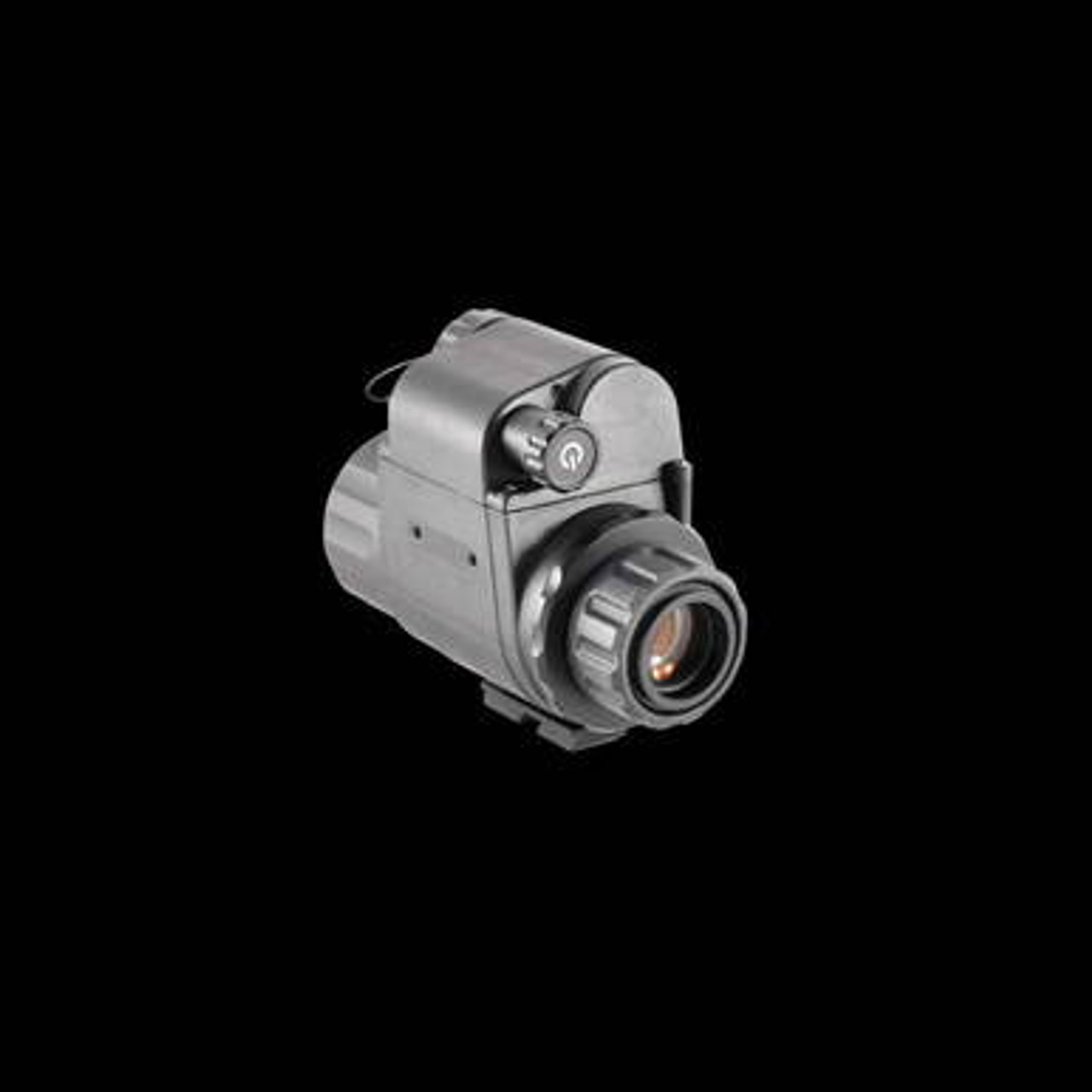

The InfiRay USA Mini MH25 monocular is the smallest fully multi-functional 12 micron thermal imaging monocular on the market. It can be used as a handheld monocular or helmet mounted monocular. The IRay Mini features bluetooth, picture-in-picture, and compatibility with rechargeable 16650 batteries as well as external power supply.
Flexible Mounting Options and Friendly Operation

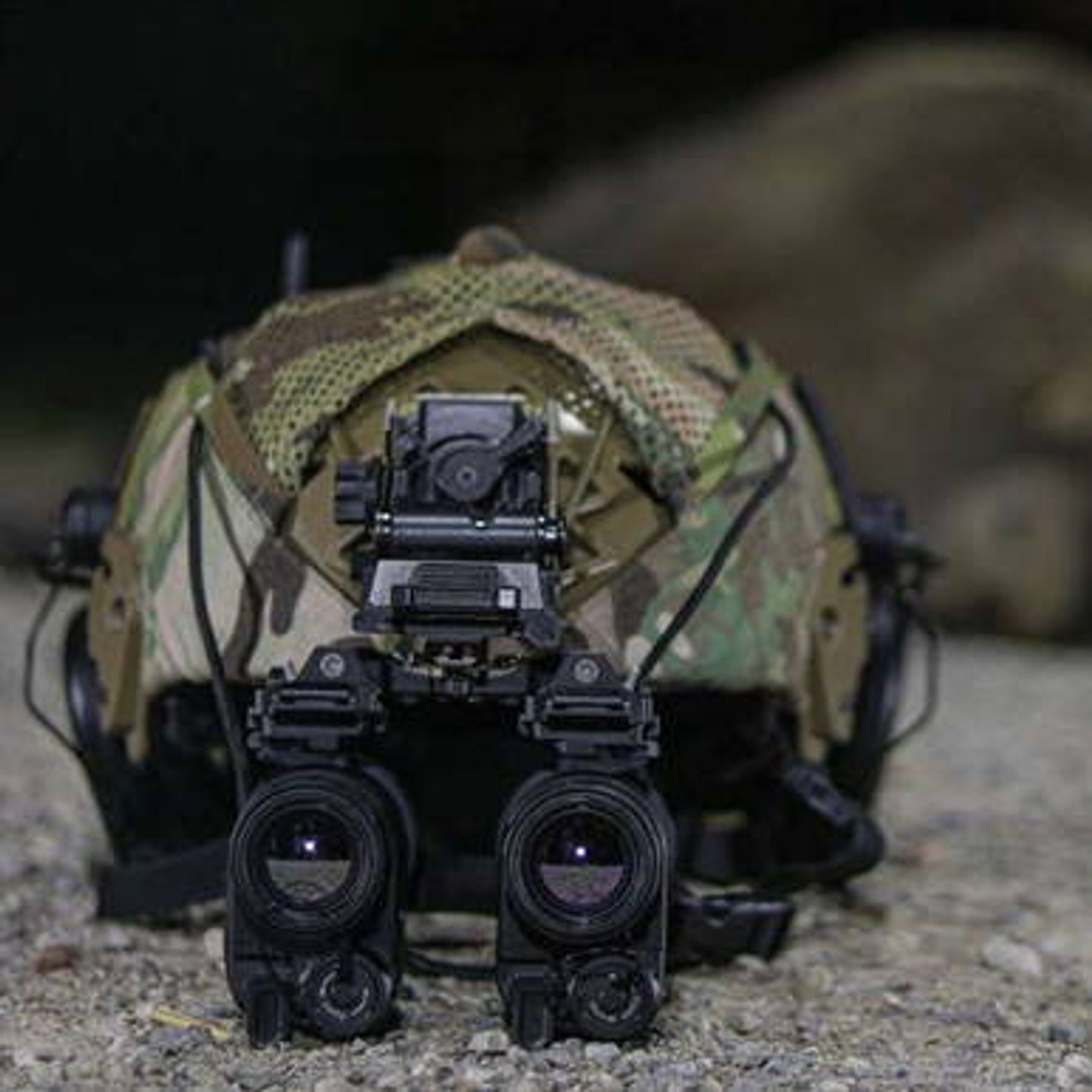

For hands-free operation there are 2 mounting points designed to allow for a wide variety of dovetail helmet mounts. The Mini's display icons flip automatically when orientation is flipped.
The MH25 is operated by an intuitive clearly labeled menu and user friendly rotary button. This one button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark.
Power Supply Options
Using the included battery extender the Mini is compatible with CR123A, CR123, 16340, and 16650 batteries. Using 1 16650 the Mini will run for 3 hours, and using the included power cable with a 10,000 mah USB battery the Mini will run for 18 hours.
About IRay
IRAY technology has been developing and producing infrared FPA detectors, thermal cores, and other thermal products outside of the US for more than a decade. IRay has completely independent intellectual property rights and is committed to providing professional thermal imaging solutions across the globe. More than 50% of IRay's employees are R&D engineers and IRay has been awarded 219 technical patents.
-
Optics
Optical Magnification - 1XDigital Magnification - 8X, steppedObjective Focal Length - 25mm f/1.0Objective Diameter - 25mmObjective F# - F1.0Objective Focusing Range - 2 meters to infinityHorizontal Angular Field of View - 17.5Vertical Angular Field of View - 14Detection Range - 1375 YardsEyepiece Focal Length -27mmEye Relief - 20mmExit Pupil - 14mmDiopter Range - -4 - +3Display Type - LCOSDisplay Resolution - 1280×960 -
Features & Performance
Power Source - 1 X CRC123A or 1 X 16650Video Output - Analog RS-170/NTSC viaImage Capture - NoOnboard Recording - Photo and VideoBluetooth - Yes
Wifi - No
Country of Manufacture - China
Connector Output - Video/USBStartup Time - Under 5 SecondsWarranty - 5 YearsRun Time - 16650 - 3hrs RCR123A - 1.5hrsConnector Type - USB-C -
Environmental Specifications
Ingress Protection - IP67Recoil Rating - None -
Physical
Housing Material - Aluminum/ABSMounting Interface - MUM rail, Dovetail optionalWeight - 8.64 OzHeight - 4.8 inWidth - 2.8 inLength - 5.03 -
Sensor Specifications
Device Technology - Thermal ImagingSensor Resolution - 640×512Sensor Pixel Size - 12μmSensor Frame Rate - 50hzThermal Sensitivity - <50mkSpectral Response - 8-12 MicronsSensor Type - InfiRay MICRO IINon-Uniformity Correction (NUC) - Manual, Automatic, Semi-Automatic
