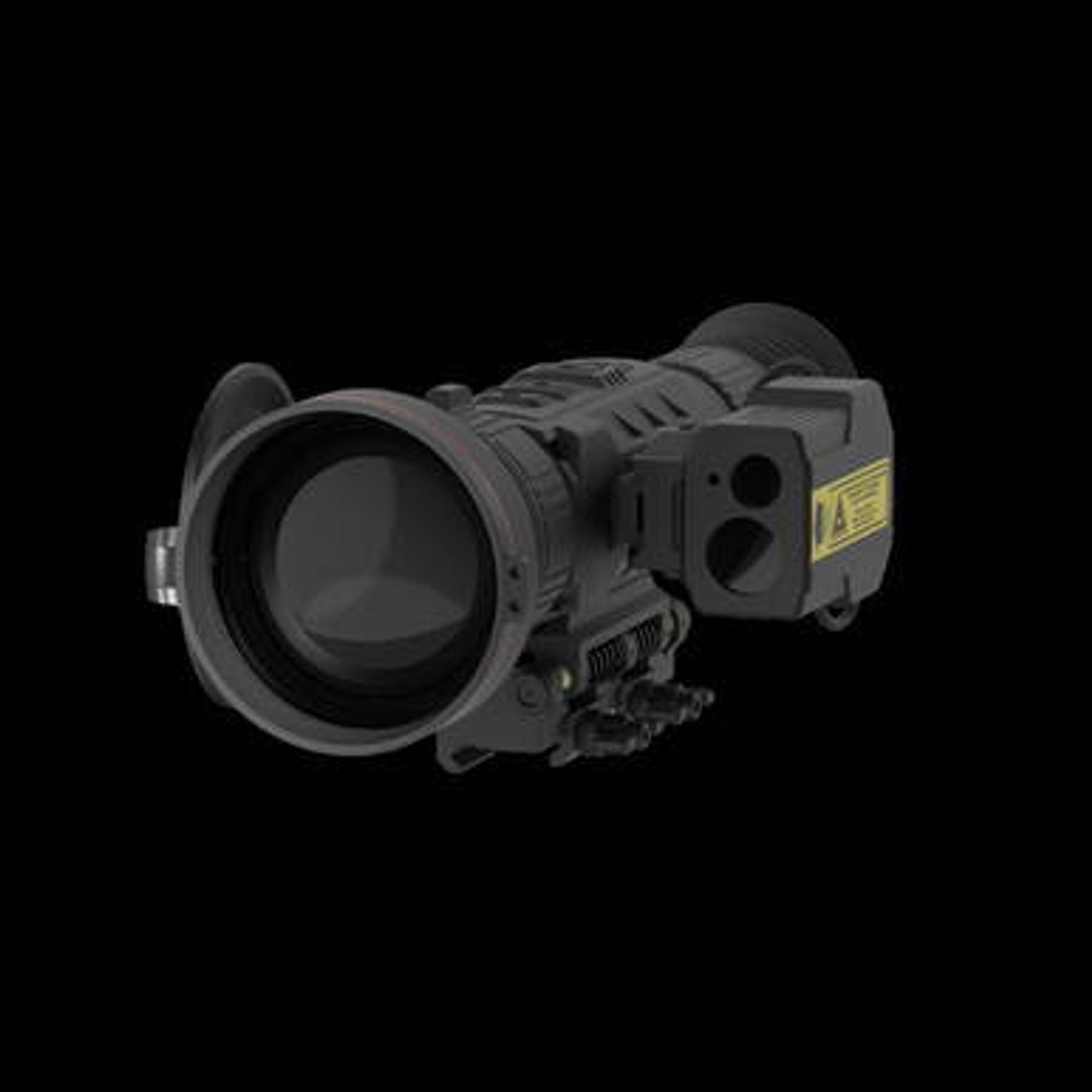

  • InfiRay Outdoor InfiRay RICO HD 1280 2X 75mm Thermal Weapon Sight, high-resolution thermal imaging scope with adjustable lens and rugged design.
  • InfiRay Outdoor InfiRay RICO HD 1280 2X 75mm Thermal Weapon Sight, high-resolution thermal imaging device with 1280x1024 pixels for enhanced target detection, featuring adjustable zoom and durable construction for outdoor use.
  • InfiRay Outdoor InfiRay RICO HD 1280 2X 75mm Thermal Weapon Sight, mounted on a rifle with a dog lying nearby, featuring a high-resolution thermal imaging sensor for enhanced outdoor and hunting activities.
  • InfiRay Outdoor InfiRay RICO HD 1280 2X 75mm Thermal Weapon Sight, image showing the thermal weapon sight mounted on a firearm with a lion in the background.
  • InfiRay Outdoor InfiRay RICO HD 1280 2X 75mm Thermal Weapon Sight, a high-resolution thermal imaging device mounted on a rifle for enhanced night vision and target acquisition.
  • InfiRay Outdoor InfiRay RICO HD 1280 2X 75mm Thermal Weapon Sight, close-up of the black thermal sight mounted on a rifle with a dark background.

    • InfiRay RICO HD 1280 2X 75mm Thermal Weapon Sight, 1280x1024 (RS75)

    InfiRay Outdoor

    MSRP: $19,799.99
    DNO PRICE: $17,999.00
    For a Limited Time $15,999.00
    (You save $3,800.99 )
    SKU:
    IRAY-RS75

    Currently Out of Stock - Please Call for Availability 309-781-8421

    Product Description

    Call Us for the Best Pricing Anywhere! 309-781-8421

    RUGGED INFRARED COMPACT OPTIC HD RS75

    The Rugged Infrared Compact Optic(RICO) HD RS75 is the first commercially available 1280x1024 resolution thermal weapon sight ever created. You read that right, the legendary thermal image quality produced by a High Definition(1280x1024) thermal sensor is finally commercially available to night hunters in the form of an advanced weapon sight. The RICO HD RS75 has an incredible 1,310,720 pixels processed by InfiRay’s proprietary MATRIX III algorithm to create an image so clear, it is almost unbelievable.



    It’s been more than a decade since the leap from 320x240 resolution to 640x512 resolution thermal sensor technology, but the inexorable advancement to 1280x1024 resolution has been approaching quietly in the background. As night hunters we have always wanted more performance out of our optics, but the problem was we couldn’t do that with existing technology which had reached its limits. Through years of research and development by an engineering team of over 500 devoted to sensor innovation, InfiRay Outdoor has unleashed the capabilities that night hunters have only dreamed of.



    The RS75 maintains many familiar RICO Mk1 characteristics including a 4 button layout, similar software style and menu functions, and high speed germanium objective optics. In addition to the tried and true features of the MK1 line, InfiRay Outdoor added several highly requested features to the RS75 including 128gb of internal storage space, an upgraded 2560x2560 AMOLED display, an enhanced microphone, and a recoil mitigating mount for increased durability.



    CRYSTAL CLEAR AUDIO AND VIDEO

    The RICO HD offers crystal clear onboard audio recording to compliment captured videos. Increased audio clarity over previous RICO generations allows you to capture a quiet whisper before the shot or the report of a bullet impact hundreds of yards away.



    PREMIUM OPTICS AND NEAR-EYE DISPLAY

    One of the first things you notice when you look through the RICO HD RS75 is the optical clarity. The eyepiece offers edge to edge image perfection when paired with the 1.03" 2560x2560 AMOLED microdisplay. The RS75's orthoscopic eyepiece has also been redesigned with premium components specifically selected to achieve low distortion and edge to edge clarity. This redesigned eyepiece offers a more forgiving eyebox for a more comfortable cheek weld and 60mm of eye relief.



    UNLOCKED NEXT GENERATION CAPABILITIES

    What does it take to unlock the next level of thermal imaging? Four times the resolution of 640 devices, 1,310,720 pixels, a 12 degree horizontal field of view, and a detection range of 3,600 yards make the RICO HD the ultimate thermal weapon sight for any distance. No longer do night hunters have to sacrifice detection range or field of view, you can have it all in one scope for close range, mid range, or longer range shots.

    To get the most out of the first 1280x1024 resolution weapon sight, InfiRay Outdoor built in a suite of best-in-class features including a rail mounted laser rangefinder and compatibility with a custom reticle generator app. Never before has a weapon sight enabled the skilled shooter to be as accurate at night as they are in daylight conditions, until now!



    Data Sheet

    • Environmental Specifications

      Operating Temperature Range: -4°F~122°F
      Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
      Ingress Protection: IP67

    • Features & Performance

      Reticle: 7 (2 Dynamic, 5 Static)
      Connector Type: USB-C
      Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
      User-Updatable Firmware: Yes
      Mobile App: Yes
      Storage Capacity: 128GB
      Connector Output: Power/Data
      Picture-in-Picture: Yes
      One-Shot Zero: Yes
      Stand-by Mode: Yes
      Rangefinder: ILR-1000 LRF (Included)
      Run Time: 4+, Each Battery
      Power Source: IBP-1 Battery Pack X 2, 4+ Hours Each
      Wifi: Yes
      Onboard Recording: Video and Image
      Image Capture: Yes
      Video Output: Yes
      Startup Time: Under 10 Seconds
      External Power Source: USB-C
      Warranty: 5 Years
      Compatible With: ILR-1000
      Country of Manufacture: China

    • Optics

      Optical Magnification: 2X
      Digital Magnification: 16X
      Objective Lens Material: Germanium
      Horizontal Angular Field of View: 11.7°
      Vertical Angular Field of View: 9.4°
      Detection Range: 3600 Yards
      Objective Focal Length: 75mm
      Objective Diameter: 75mm
      Objective F#: f/1.0
      Focusing Mechanism: Manual Focus
      Exit Pupil: 14mm
      Eye Relief: 60mm
      Eyepiece Focal Length: 27mm
      Display Type: AMOLED
      Diopter Range: -3 - +3
      Display Resolution: 2560×2560

      Physical

      Mounting Interface: Picatinny STD-1913 rail
      Housing Material: Aluminum
      Length: 12.55"
      Weight: 44.9 Oz
      Height: 3.34"
      Width: 3.93"

      Sensor Specifications

      Device Technology:                        Thermal Imaging
      Sensor Type:                                 InfiRay MICRO II
      Sensor Resolution:                         1280×1024
      Non-Uniformity Correction (NUC):   Manual, Automatic, Semi-Automatic
      Spectral Response:                        8-12 Microns
      Sensor Frame Rate:                       30hz
      Sensor Pixel Size:                          12 micron
      Thermal Sensitivity:                      <25 mk

    Other Details

    5-Year Warranty with a 5-Day Repair Guarantee At iRayUSA we are first and foremost hunters and users of our products and we understand that failure is not an option. One of our primary objectives at iRayUSA is to greatly improve the customer service level for the end user. We plan on accomplishing this through offering our industry-first 1-week repair guarantee, and by only working with highly qualified Authorized Dealers. During the published warranty period, iRayUSA will repair or replace, at its discretion, any optic that becomes defective from normal use. If we cannot repair an optic in less than one week, we will offer a replacement in like or better condition. We know you’ve never seen this from a thermal manufacturer, neither have we, and that’s one of the reasons we started iRayUSA. Our warranty follows the product, and is not tied to the original owner. The warranty period is tied to the date of sale to the dealer or end user registration. This warranty only covers normal use and does not cover cosmetic damage, normal wear, intentional damage, theft, loss, any act of God or a condition caused by use other than intended. Any product that is modified, opened or tampered with will void any warranty coverage. Any serial number damage or alteration on the product will be considered modification. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. One week starts from the time of receipt of product at iRayUSA. Customers must ship the product to iRayUSA, iRayUSA will return the product at no cost. No returns will be accepted without an RMA. iRayUSA is not liable for any damages or loss incurred when shipping to iRayUSA
