Product Description

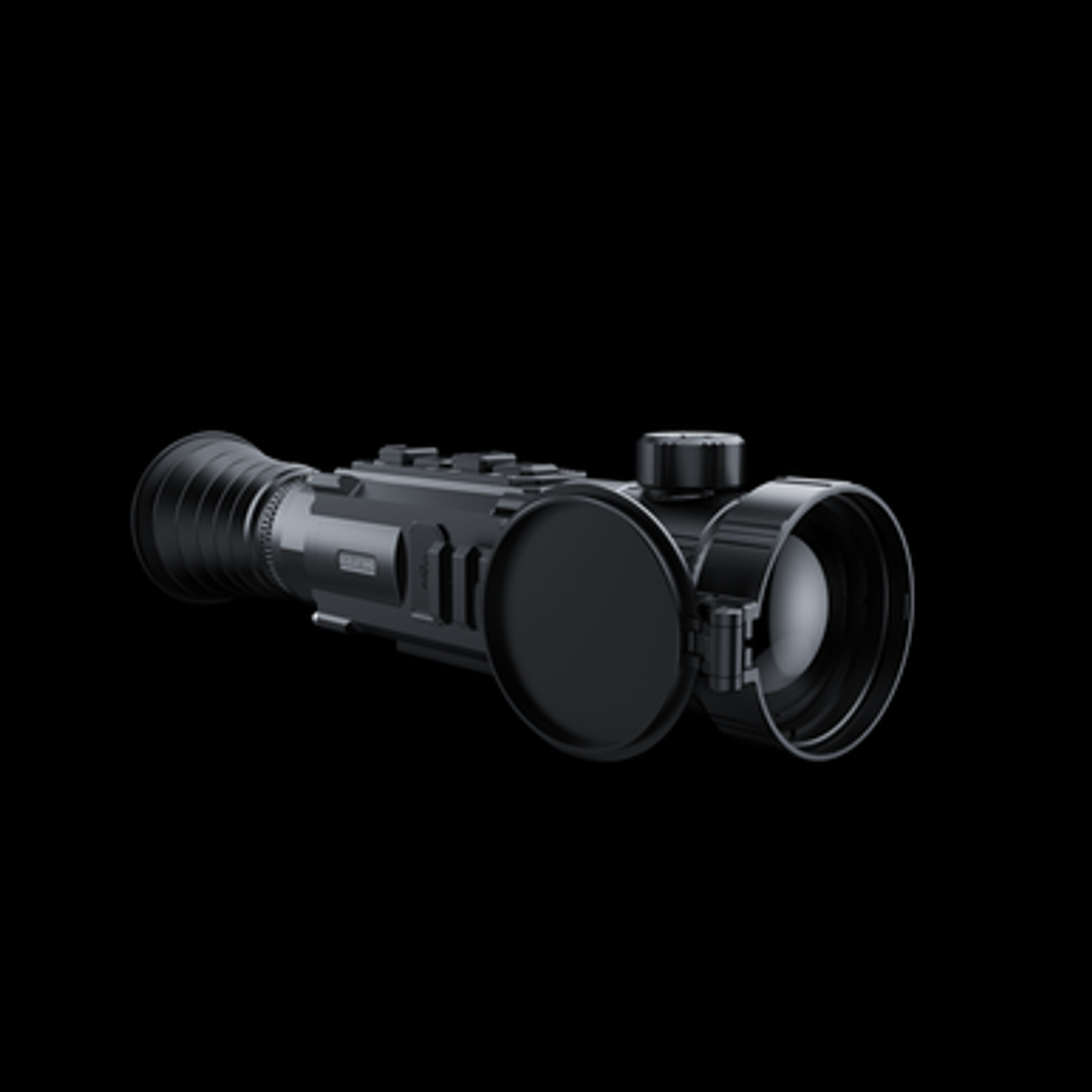

Thermal Imaging Scope
WITH HIGHER RESOLUTION
Featuring a high-resolution sensor with a resolution of 640*512(or 480*360),
coupled with cutting-edge uncooled Vox technology, ensuring clear visibility
of abundant target details and characteristics.
with more sensitive detection
Detect the subtle temperature difference below 0.02 ℃ ,
delivering clearer, more detailed images and enabling easier
identification of objects in various weather conditions.
DISCOVER ULTIMATE
COMFORT WITH 100MM
LONG EYE-RELIEF
experience and accommodating traditional optics scope user’s
hunting habits.
800*800 IPS ULTRA-CLEAR CIRCULAR DISPLAY
800*800 IPS round circular display, matching the human eye
structure. This results in a more natural view.
EASY TO TOUCH AND OPERATE
Crafted with buttons of varying heights, preventing accidental
touches and ensuring precise navigation even in the
darkest of nights.
SWIFT AND SIMPLE ZEROING
data not only save bullets but also provides the most
efficient hunting way.
COMPACT AND
LIGHTWEIGHT DESIGN
FOR ULTIMATE
PORTABILITY
Crafted with sleek and compact design facilitates portability,
minimizing user carrying strain and guaranteeing the
convenience in usage.
INTEGRATED 1200yds LRF & BALLISTIC CALCULATOR
An advanced laser rangefinder with a 1200yds range. The ballistic calculator takes
into account factors such as bullet muzzle velocity and weight, providing real-time target distance
and showing the estimated impact point for an efficient and precise solution.
ALUMINUM ALLOY
LIGHTWEIGHT & DURABLE
Utilizing lightweight and high-strength aluminum alloy
ensures excellent scratch and wear resistance, even
in harsh hunting conditions.
6 Image Modes
In order to highlight targets, Ocelot has developed six image modes(WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY) for users to choose from according to preferences.
3 Scene Modes
Three scene (City/Rain/Forest) will provide outstanding adaptability across different environments.
Picture in Picture
Show a 2x reticle area at the top of the screen for rapid target identification.
Recoil-activated
Recording
Recoil-activated recording provides an ongoing 20-second loop, when recoil is detected, the video is automatically moved to the Micro SD card.
6 Reticle Styles
& 4 Colors
Ocelot Series feature 6 reticle shapes in Red/White/Yellow/Green, tailored for diverse hunting scenarios and preferences.
21700
Li-ion Battery
A fully charged 21700 battery can swiftly serve as an energy supplement during power outages.
|
Thermal Sensor
|
|
|---|---|
| Type | Uncooled VOx(vanadium oxide) |
| Resolution(pixel) | 640*512 |
| Pixel Size(µm) | 12*12 |
| NETD | ≤20mK（0.02℃） |
| Frame rate(Hz) | 50 |
| Human Detection Distance(m) | 2600 |
|
Optics
|
|
| Objective Lens(mm) | 50 |
| Optical Magnification(x) | 2.5 |
| Digital Zoom(x) | 2/4/6/8 |
| Field of View (Horizontal) | 7.0° |
| Field of View (Vertical) | 7.0° |
| Field of View (Diagonal) | 9.9° |
| Eye Relief(mm) | 100 |
| Diopter Adjustment(D) | – 5~3 |
|
Display
|
|
| Type | IPS |
| Resolution(pixel) | 800*800 |
| Reticle Style | 6 |
| Reticle Color | 4(Red/White/Yellow/Green) |
| Scene Mode | City/Rain/Forest |
| Image Mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY |
|
Photo / Video
|
|
| Photo resolution(pixel) | 1536*1536 |
| Photo Format | .JPG |
| Video Resolution(pixel) | 768*768 |
| Video Format | .mp4 |
| Storage(GB) | Micro SD card (Max. 128GB) |
| Image Engine | Pard IREA |
|
Main function
|
|
| LRF Detection Range(m/yds) | 1000/1200 |
| Ballistic Calculator | Yes |
| PIP | Yes |
| Gyroscope | Yes |
| Recoil-activated Recording | Yes |
| Loop Recording | Yes |
| Hot Track | Yes |
| E-compass | Yes |
| Microphone | Yes |
| Firmware Upgrade | Yes |
|
Connections
|
|
| USB Tpye-C | Yes |
| HDMI output | Yes |
| WiFi | Yes |
| Supported Apps | PardVision2 |
|
Power Supply
|
|
| Battery Type | Lithium Ion 21700*1 |
| Output Voltage(V) | 3.7 |
| Operating Time(h) | ≤5 |
| External Power Supply | Type-C |
|
Environmental characteristic
|
|
| Protective Class | IP67 |
| Operating Temp(°C/°F) | -30 ~ +55 / -22 ~ +131 |
| Recoil Resistance(J) | 6000 |
|
Material
|
|
| Housing | Aluminium Alloy |
| Objective Lens | All-glass multi-coated lens |
|
Measurement
|
|
| Product Dimension(with LRF, L * W * H, mm) | “Ocelot 480-35mm lens: 182*68*79 Ocelot 480-50mm lens: 182*68*79″ |
| N.W/pcs(with LRF&battery, g) | “Ocelot 480-35mm lens: 616.5g Ocelot 480-50mm lens: 647.5g” |
