Trijicon |SKU: REAP-60-3

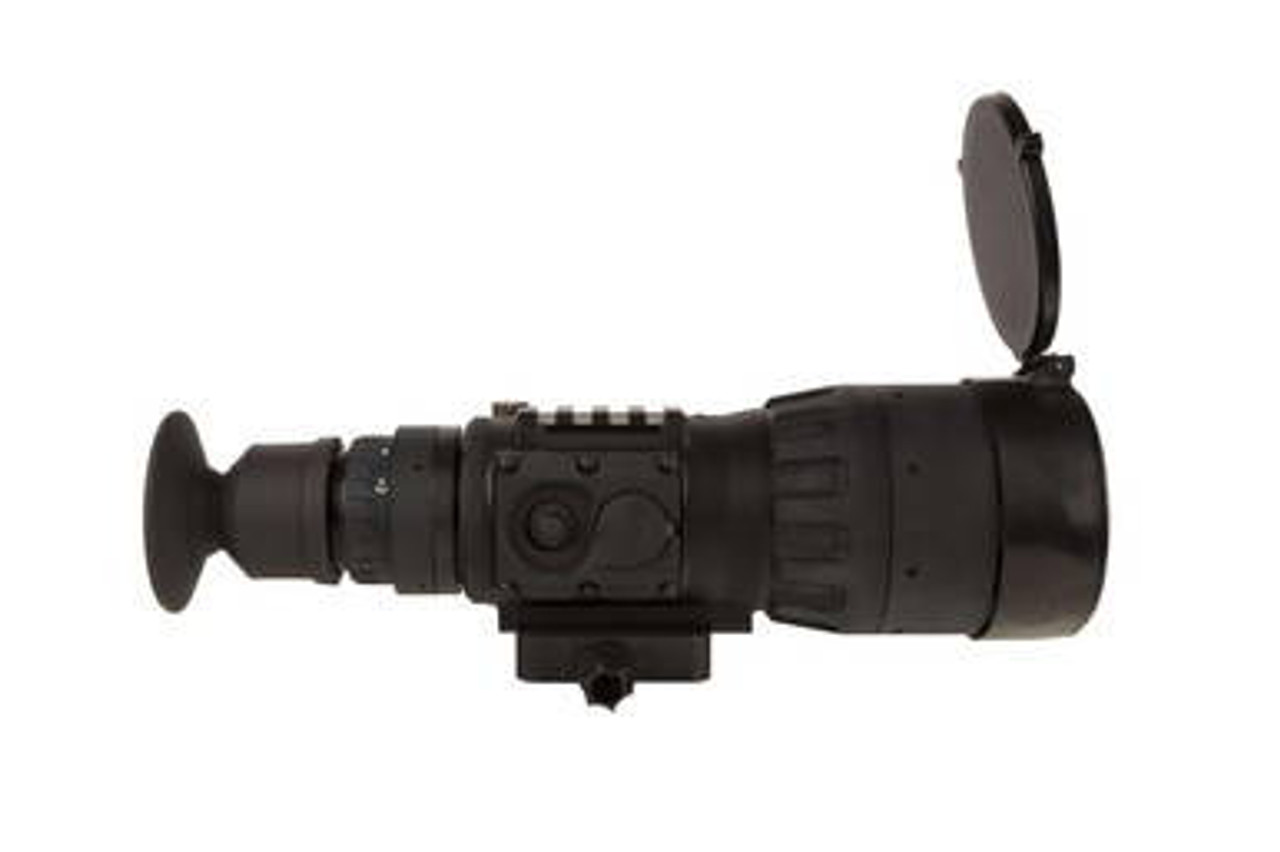

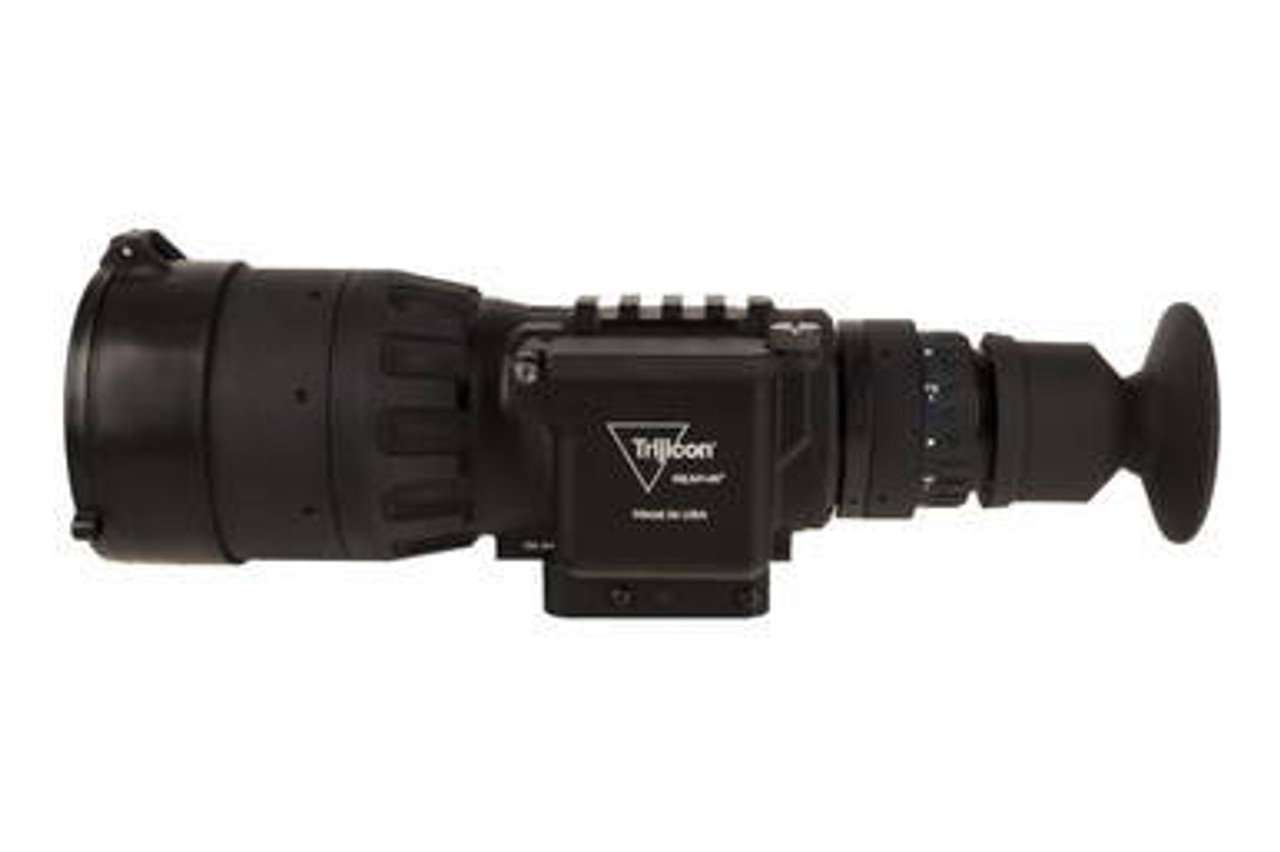

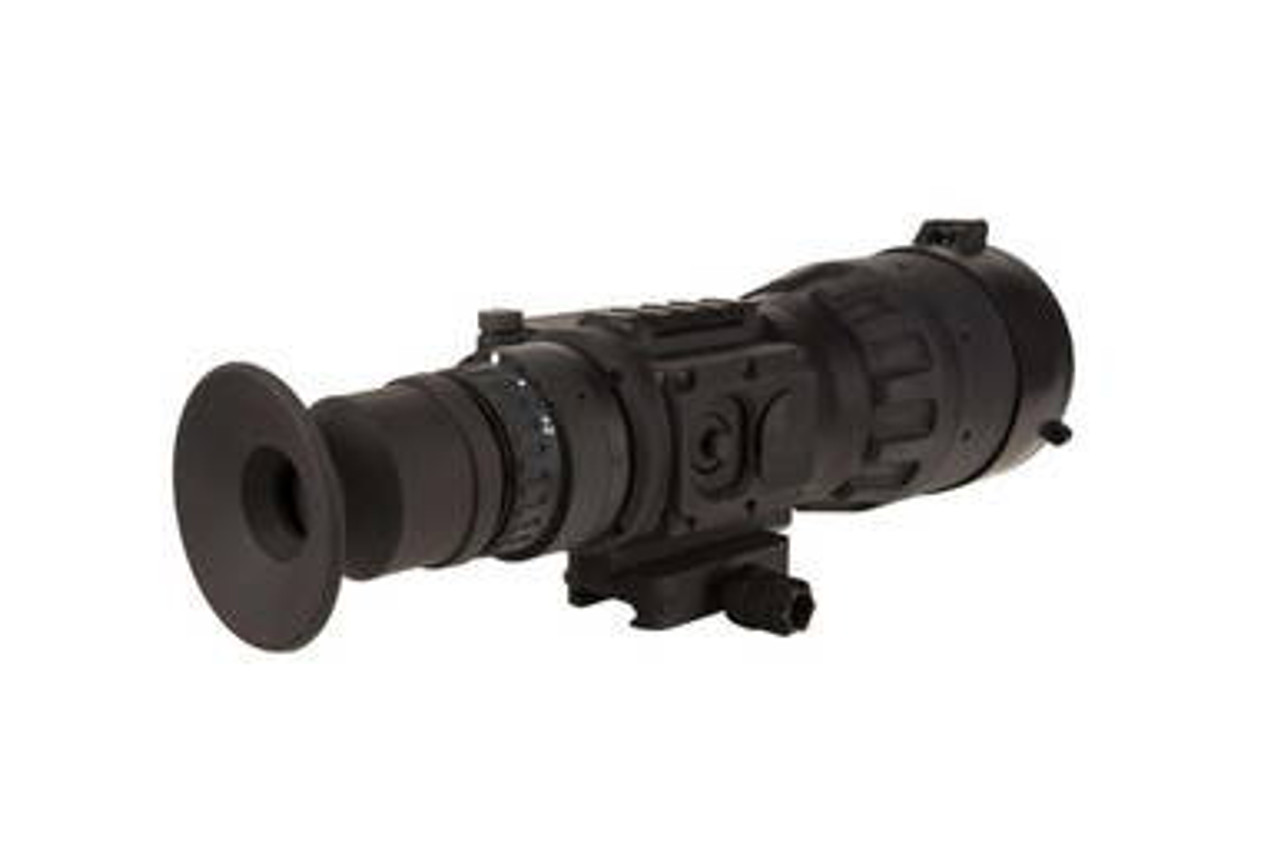

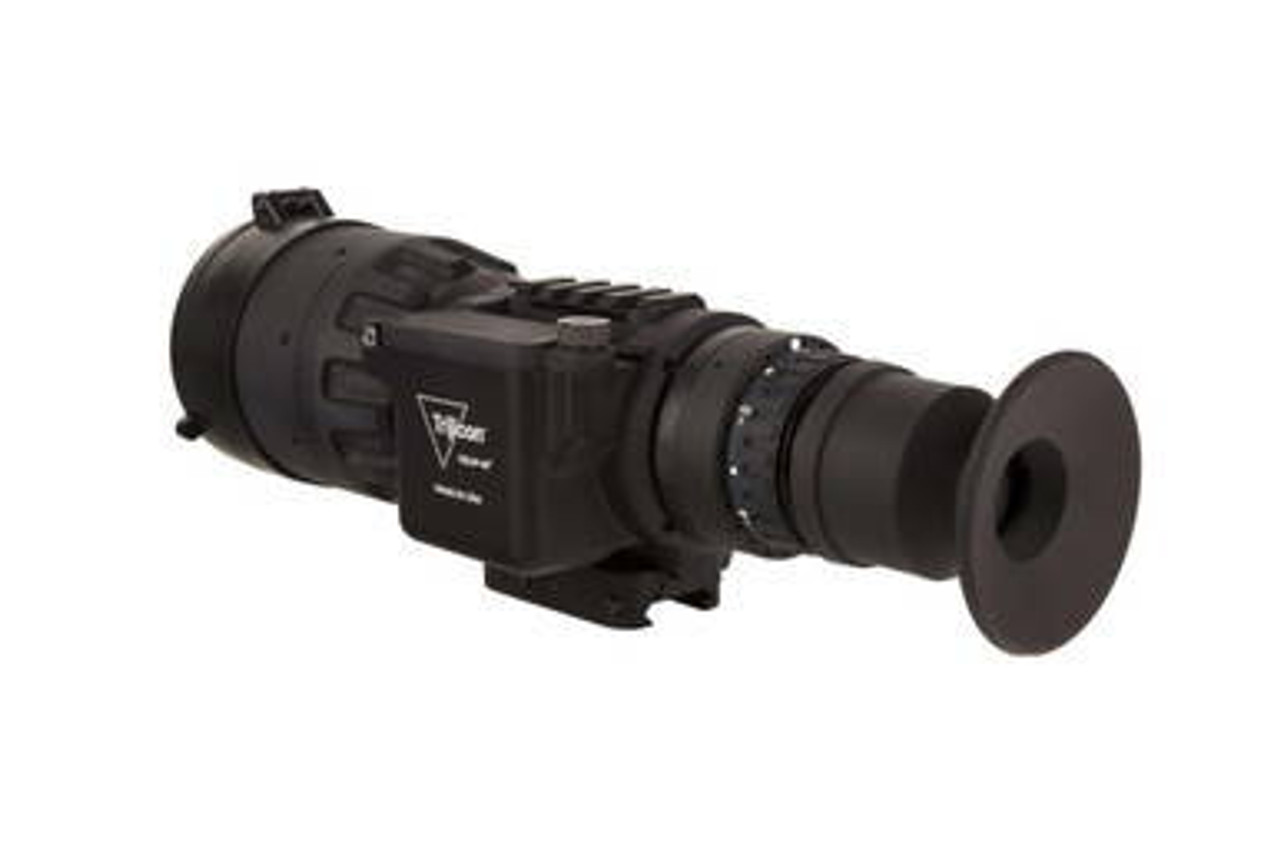

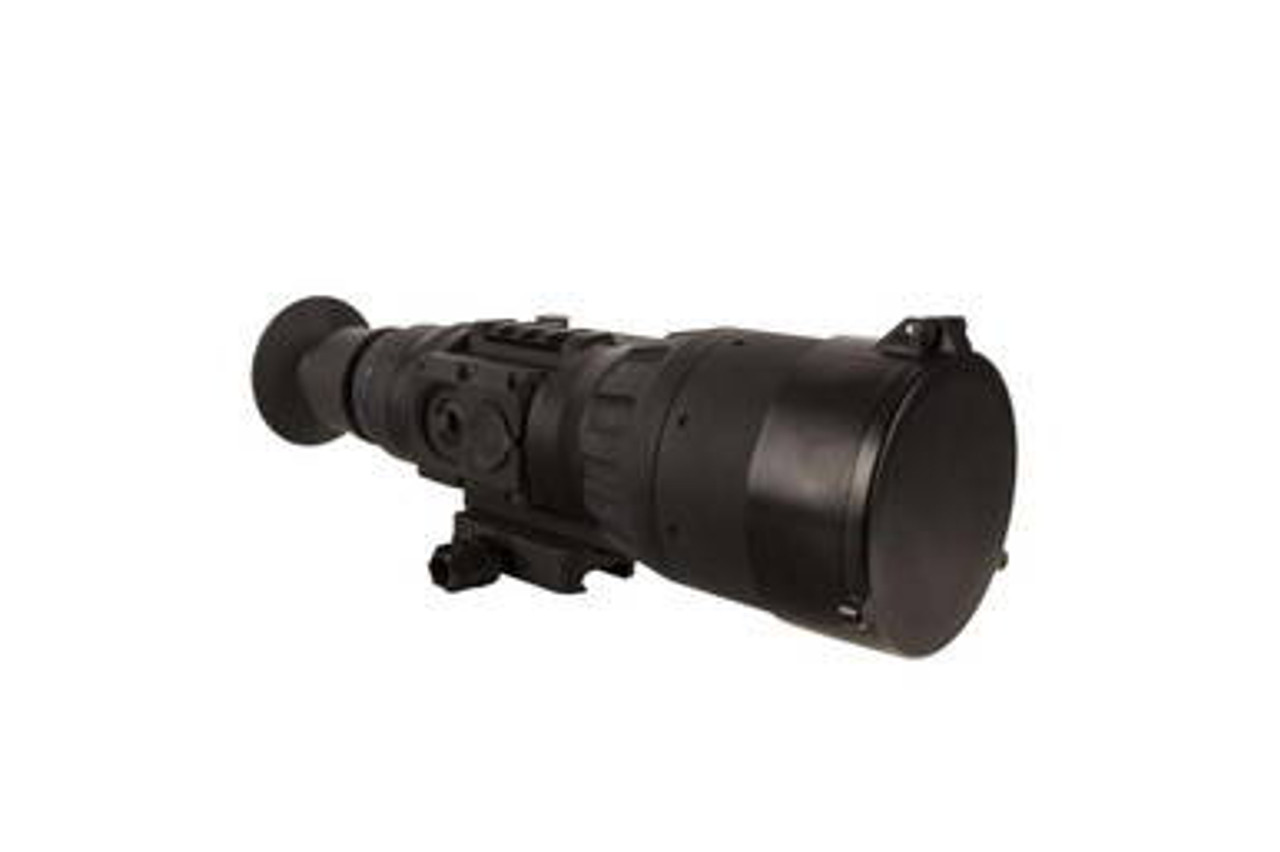

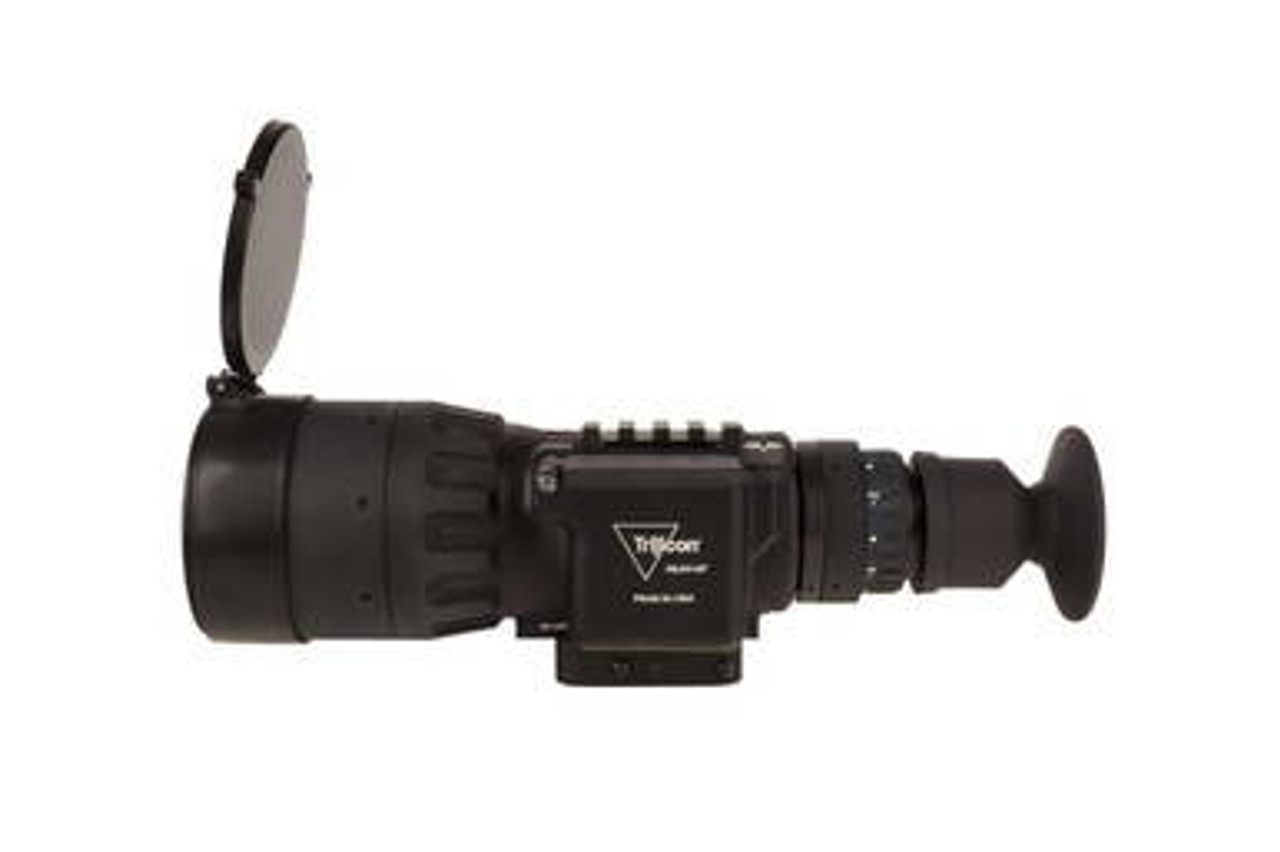

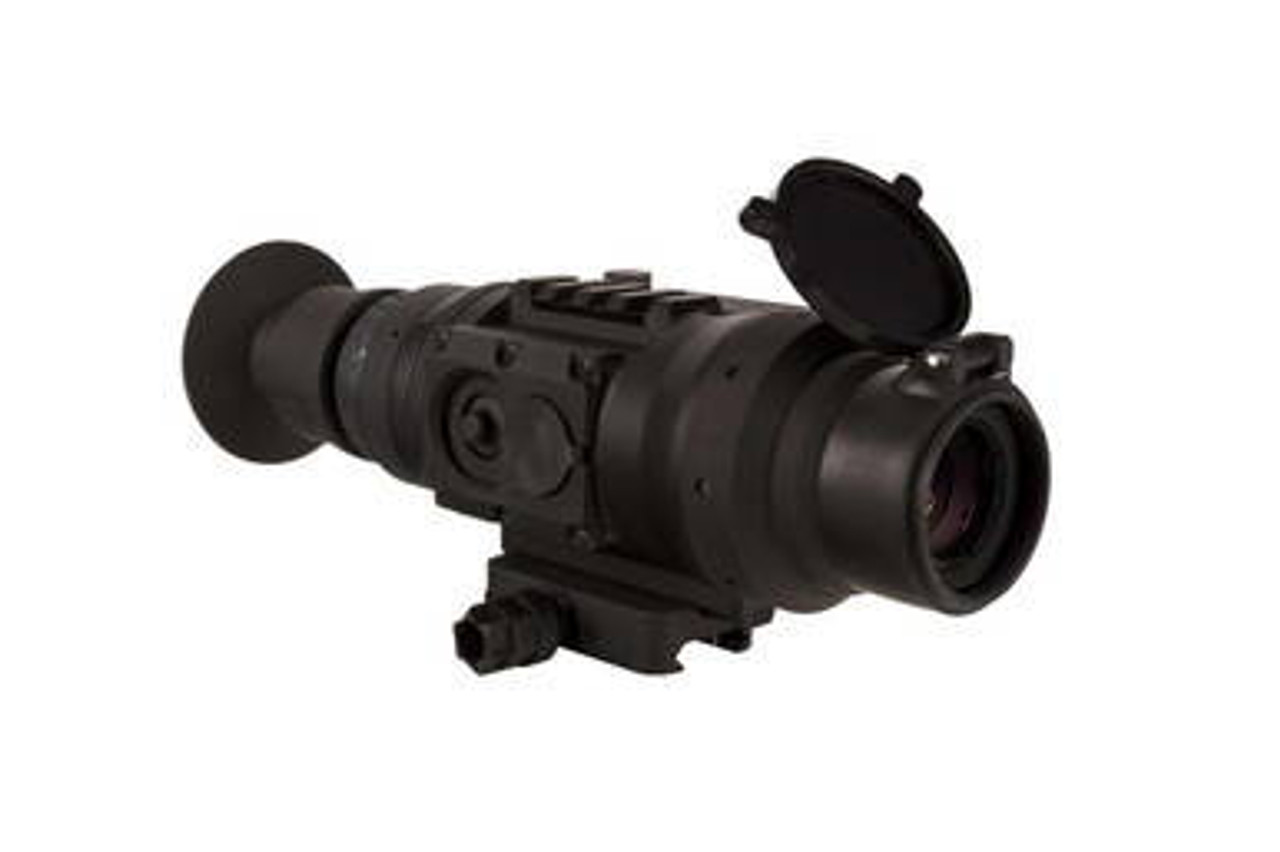

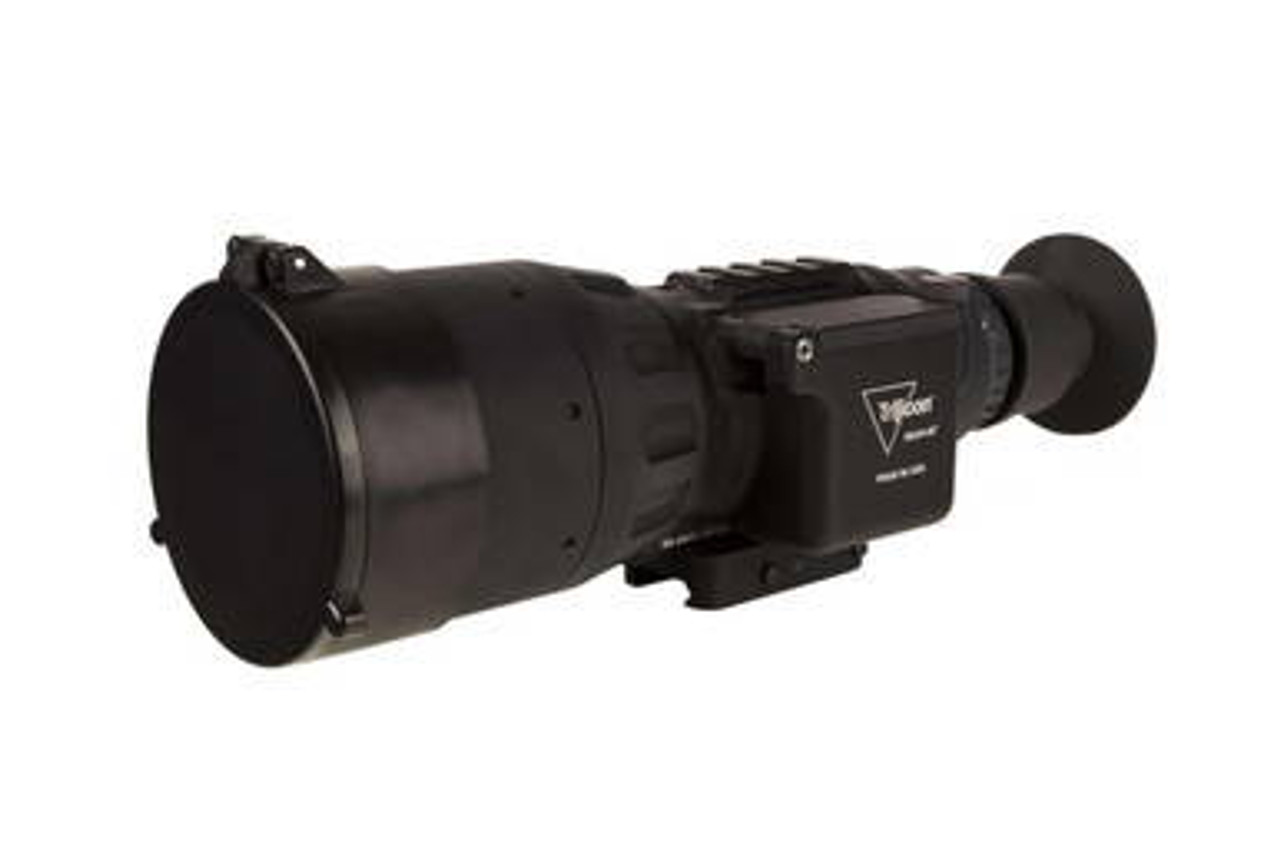

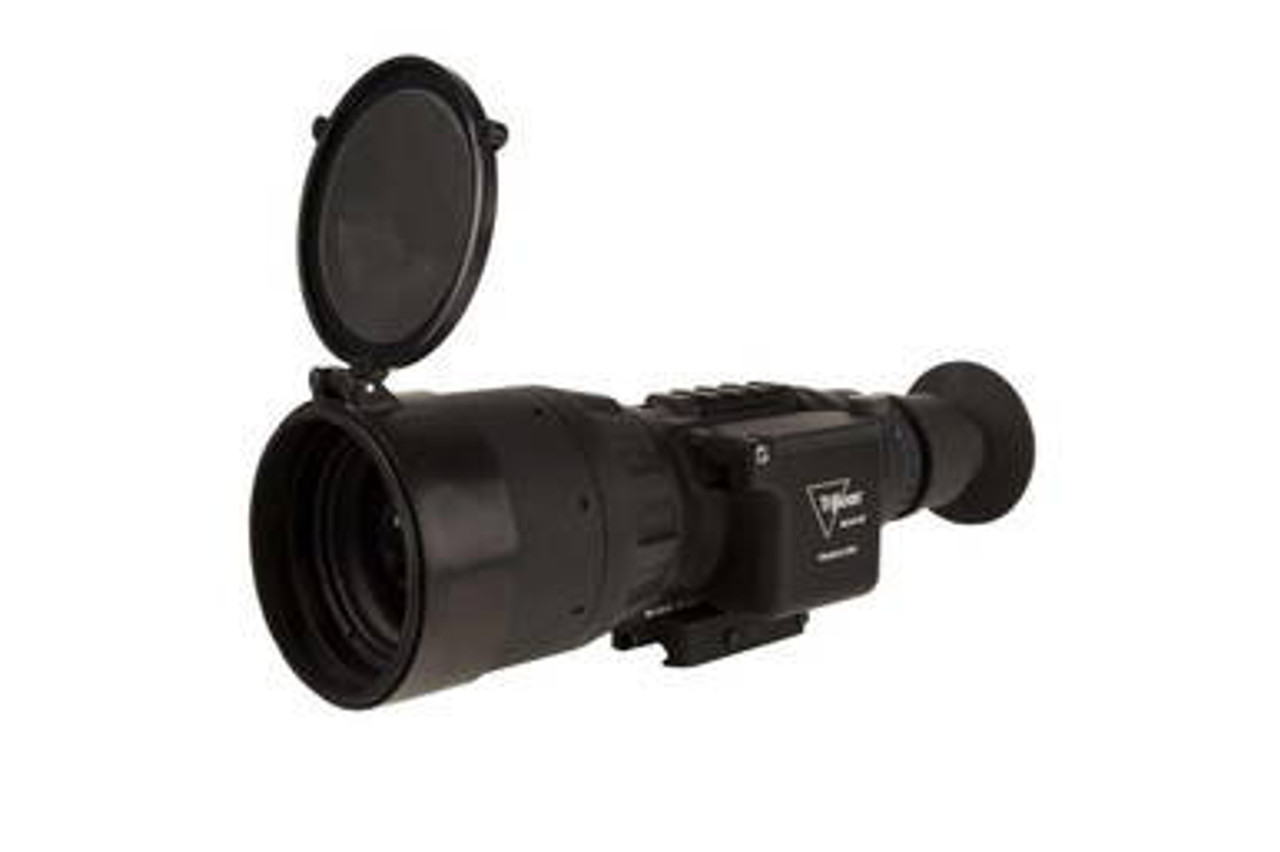

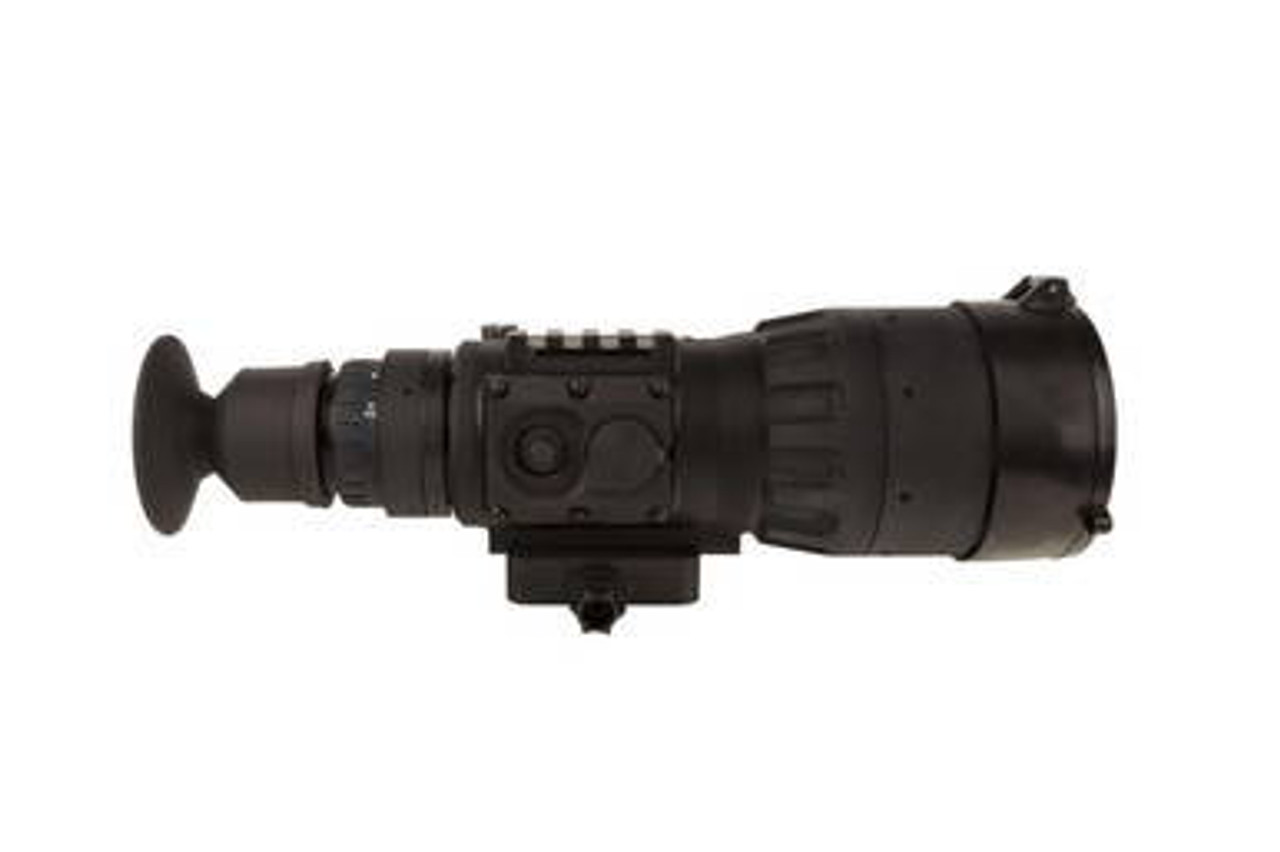

Trijicon REAP-IR 60 mm Thermal Riflescope 3x Base Magnification / 24x Combined Magnification

Watch the video Specs Overview

$9,784.00

Currently Out of Stock - Please Call for Availability 309-781-8421

Questions? Call 309-781-8421Real people who use these optics. Open every day, 8am - 9pm.
  • Free shipping on orders over $399*
  • No sales tax outside Illinois
  • No card fees and 2% off when you pay by e-check
  • Hunters on the phone to help you choose

Overview

OVERVIEW

The REAP-IR® mini thermal riflescope is a small, rugged, and powerful thermal riflescope that lets you engage targets in any light. The heart of the system is a state-of-the art 640x480, 12 micron thermal image sensor that provides superior image quality in any lighting condition. Redesigned electronic hardware and a new digital thumbstick improve system response and enable the use of external USB power sources and digital video recorders. This Trijicon REAP-IR thermal riflescope is also built to last - in the USA.

INCLUDES

Mini Picatinny Rail Mount
USB-C to USB-C Cable
Inline analog video adapter
User Manual
Quick Reference Guide
2 CR123 Batteries
Trijicon Logo Sticker
Shuttered Eye Guard
Warranty Card
LENSPEN
Hard Case

THUMBSTICK SYSTEM CONTROLLER

Fully ruggedized, weatherproof, multi-directional thumbstick control with improved design for faster system response

EXPANDED FUNCTIONALITY

New USB-C connector allows the use of external battery packs and download of analog and digital video with available adapter with compatible DVRs

TOP-LOADING BATTERY COMPARTMENT

Ruggedized, vertical design creates a slimmer look and is engineered for increased durability and solid battery connection

MOUNTING VERSATILITY

New quick release mount featuring Trijicon® Q-LOC™ Technology provides multiple mounting locations with the ability to affix the scope rapidly and reliably in the dark

IMPROVED RETICLE OPTIONS

User-selectable reticle choices include the classic crosshair, and new MRAD, MOA, .223 REM, .308 WIN, and 300BLK BDC

640x480 THERMAL SENSOR

Offers clear, crisp imagery through smoke, dust and complete darkness

12 MICRON TECHNOLOGY

Smaller image sensors allow for reduced size and weight and increased durability.

MADE IN THE USA

Built for shooters by shooters right here in America.



DOWNLOADS:

SPEC SHEET



SPECIFICATIONS:

Length x Width x Height -9.7 in x 3.1 in x 2.9 in - (246.38mm x 78.74mm x 73.66mm)
Weight - 37.8 oz. (1,071.61g)
Magnification - 3x
Objective Size - 60mm
Power Source - CR 123 or External USB
Battery Life - 2 hours per CR 123
Eye Relief - 27 in. (685.8mm)
Field of View (degrees) - 7 degrees Horizontal°
Mount - QLOC
Diopter Range -6 / +2
Housing Material - Aluminum
Submersion Depth - 3.28 ft. (1m)
Operating Temperature -25.6F to 122F (-32c to 50c)
Sensor Type - VOx
Digital Zoom - 8X
Sensor Resolution - 640x480
Sensor Pixel Pitch - 12 µm
Focal Length - 60 mm
Frame Rate - 30 Hz / 60 Hz
Video Output - RS-170

Specs

Brand
Trijicon
SKU:
REAP-60-3

Videos

Videos Hide Videos Show Videos

Frequently Asked Questions

Does night vision use IR?

Yes, night vision devices work with near-infrared light, either from the moon and stars or from an IR illuminator. This REAP-IR doesn't. It is a thermal riflescope that picks up the heat animals give off, so a hog at the far end of a field shows up even on a black, overcast night with no light to amplify.

What everyday things give off infrared?

Pretty much anything with heat emits infrared: people, pets, stoves, light bulbs, even a warm cup of coffee. A thermal scope like the REAP-IR 60mm turns those temperature differences into a picture. That is why a deer bedded in a tree line stands out while the cooler brush around it fades into the background.
