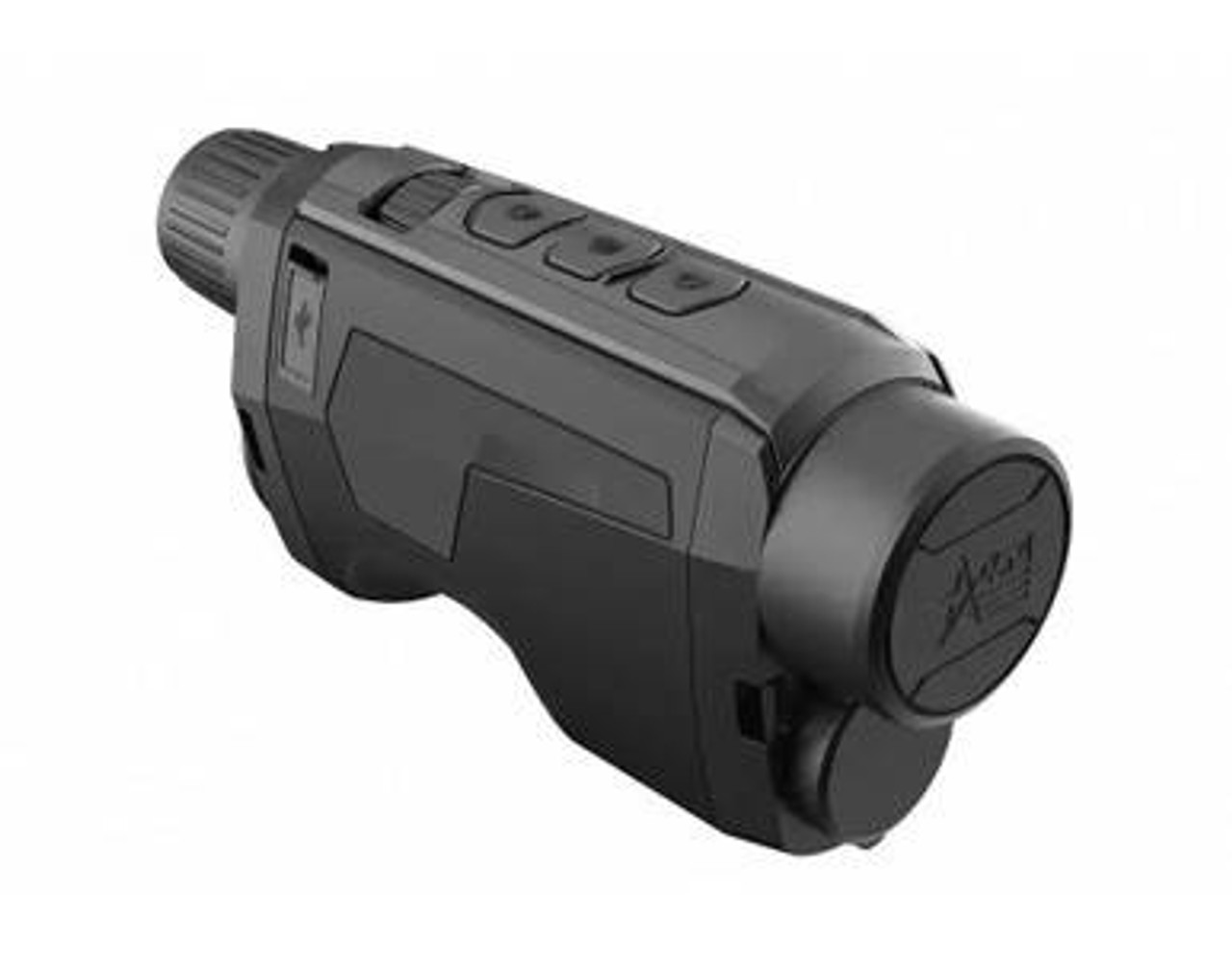

AGM FUZION TM35-384
MSRP:
$2,409.00
DNO PRICE:
$2,409.00
For a Limited Time
$2,295.00
You save $114.00
Free shipping on orders over $399*- No sales tax outside Illinois
No card fees and 2% off when you pay by e-check
Hunters on the phone to help you choose
Goes with this AGM
Overview
DESCRIPTION AND FEATURES
The AGM Fuzion Handheld Thermal & Optical Bi-spectrum Monocular is equipped with 12μm high sensitivity thermal detector, ultra-low light optical detector, 1024×768 OLED display and eyepiece with a large field of view. The device can quickly detect hiding objects even under extreme environments such as smoke, fog, rain, snow, etc. It can be widely applied to scenarios including patrol, search and rescue, drug interdiction, and suspect apprehension. Due to its waterproof capability the device performs well even in severe weather conditions and challenging environments.
The Fuzion’s user-friendly interface, comfortable and ergonomic operating controls makes adoption and application incredibly simple. The monocular offers three different variants of image view: thermal, visible light, and fusion that can be easily adapted depending on different environmental conditions. The Fuzion uses one 18650 rechargeable Lithium battery for up to 5-hours of operating time. In addition, an external power supply can be used to provide an increase in operating time.
Warning: California's Proposition 65
- Bi-spectrum image fusion and object highlight
- Detail enhancement and target recognition
- Selection of thermal view channel, visible light channel, or both them combined
- 12 μm, 35 mK NETD high sensitivity thermal detector
- Fast 50 Hz imaging
- 1x, 2x, 4x, 8x digital zoom
- Digital image processing technology
- Ultra-low illumination optical channel
- 1920×1080 Optical resolution
- 1024×768 resolution, 0.39-inch OLED display
- Video recording and snapshot, built-in EMMC (16 GB)
- Wi-Fi hotspot
- Standby mode
- Up to 5 hours continuous running
- Waterproof
- Limited 3-Year Warranty
CHARACTERISTICS
Detector type: 12 μm VOx Uncooled Focal Plane Arrays
Refresh rate: 50 Hz
Resolution: 384 × 288
FOV: 7.5° × 5.7°
DOWNLOADS:
Data Sheet
EXPORT RESTRICTIONS:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
SPECIFICATIONS
Wavelength - Optical Sensor Wavelength 400-1000 nm
Palettes - Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
Scene Mode - Jungle, Recognition
Hotspot - Yes
Observation Distance - 1,653 m
Detector type - 12 μm VOx Uncooled Focal Plane Arrays
Image sensor - Optical Image Sensor 1/2” Progressive Scan CMOS, 1960×1200@25fps
Response Waveband - 8 μm to 14 μm
FFC (Flat Field Correction) - Auto, Manual, External Correction
Highest Temperature Spot Tracking - Yes
Standby Mode - Yes
Refresh rate - 50 Hz
Aperture - F1.0
Resolution - 384 × 288
Optical magnification - 3.5x – 28x
Lens (focal length) - Optical Module Lens Focal Length - 22mm Thermal Lens Focal Length - 35mm
Power - 5 VDC/2 A, USB Type-C interface Supports external power supply
Field of view (H × X) - 10.5° × 7.9°
Digital zoom - 1x, 2x, 4x, 8x
Monitor - 1024x768, 0.39 inch, OLED, 50Hz
Storage - Built-in 16 GB EMMC
Record Video - On-board video recording
Capture Snapshot - Yes
Battery Type - One 18650 rechargeable battery (removable)
CVBS Output - Yes (via USB)
Battery Operating Time - Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
Battery Capacity Display - Yes
Operating Temperature Range -20°C to 55°C (-4°F to 131°F)
Weight - 480 g (1.06 Ib)
Overall Dimensions - 168 × 87 × 51 mm (6.6 × 3.4 × 2.0 in)
Protection Level - IP67 (Waterproof)
Specs
- Brand
- AGM
- SKU:
- 3142451005FM31
Frequently Asked Questions
Does the AGM Fuzion TM35-384 work in daylight?
It does. A thermal sensor reads heat, not light, so the 384x288 core shows animals at noon the same way it does at midnight. The Fuzion also has a 1/2-inch CMOS low-light camera, so in daylight you can switch to the visible view or run fusion to lay the heat image over the terrain around it.
How far can the AGM Fuzion TM35-384 see?
AGM lists an observation distance of 1,653 m for this model. That is the distance at which it picks up a heat source, and you will need to be closer to tell a coyote from a dog. The 35 mm lens and 3.5x to 28x magnification are what give it more reach than the 25 mm Fuzion.
Is a thermal monocular like the Fuzion TM35-384 worth it?
For a hunter who glasses fields at night, yes. A monocular lets you scan pastures and river bottoms without swinging a rifle around, and heat shows up through darkness and fog. This one has no rangefinder, so plan to carry a separate one, and it runs up to 5 hours on a removable 18650 battery.
Which AGM Fuzion should I pick, the TM35-384 or the 25 mm?
Pick by how far you look. The TM35-384 gives up some field of view (7.5 x 5.7 degrees) for reach, so it suits wide pastures and long tree lines. The 25 mm Fuzion shows more ground at once, which is easier in tight timber and on close hogs. Both have the same thermal, visible and fusion views.
