AGM RATTLER TS19-256

AGM |SKU: 3143855003RA91

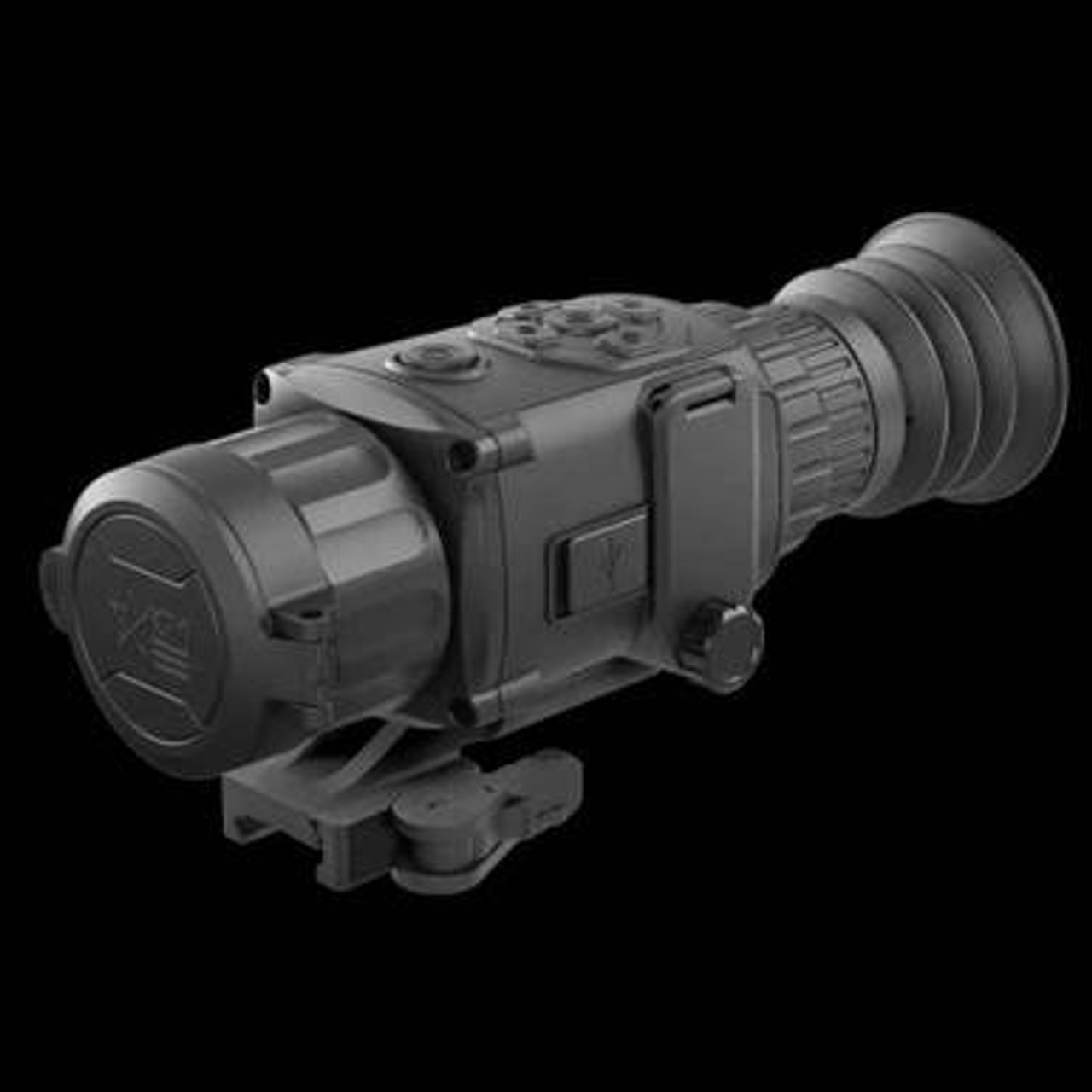

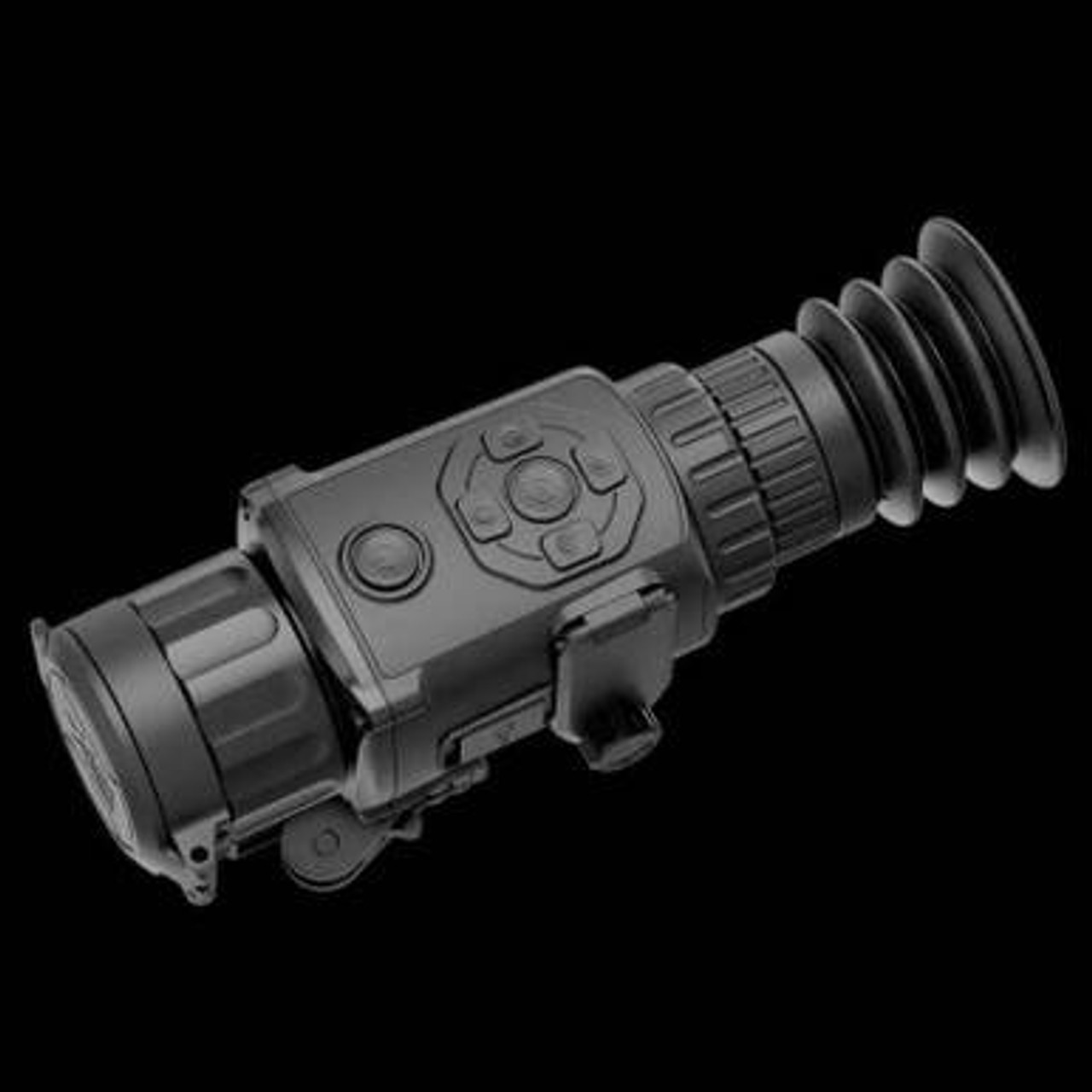

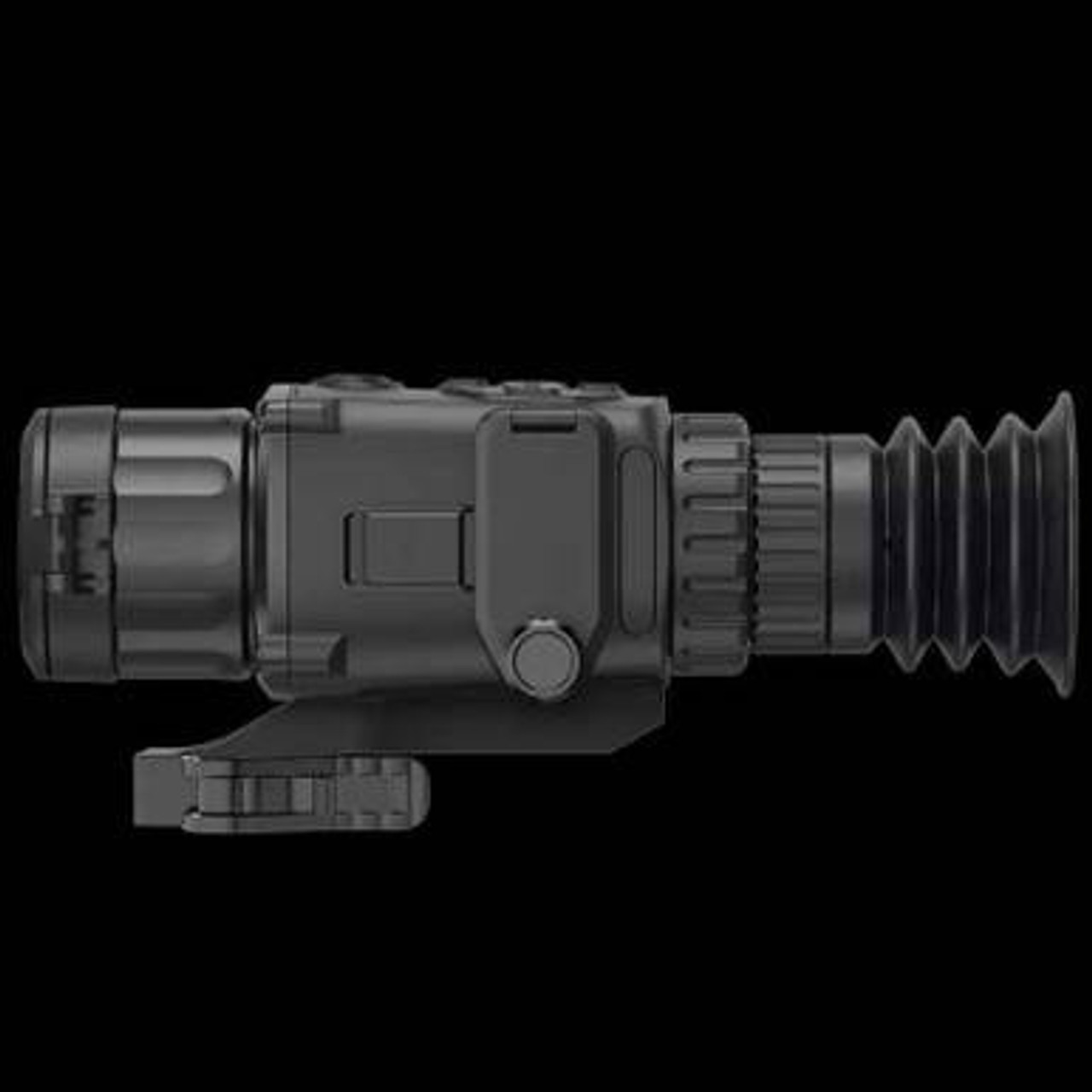

AGM RATTLER TS19-256

Specs Overview

MSRP: $1,049.00
DNO PRICE: $999.00
For a Limited Time $699.00
You save $350.00

Currently Out of Stock - Please Call for Availability 309-781-8421

Questions? Call 309-781-8421Real people who use these optics. Open every day, 8am - 9pm.
  • Free shipping on orders over $399*
  • No sales tax outside Illinois
  • No card fees and 2% off when you pay by e-check
  • Hunters on the phone to help you choose

Goes with this AGM

Overview

DESCRIPTION AND FEATURES

The AGM Rattler TS19-256 and Rattler TS25-256 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for short or medium range missions.

Thermal image riflescope has 256×192, 12μm thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, hunting, etc.

Powered with two CR123 batteries the AGM Rattler TS-256 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.


  • 256×192 thermal resolution, 12μm, high sensitivity detector
  • Image processing technology: Adaptive AGC, DDE, 3D DNR
  • 1024×768 resolution 0.39-inch OLED display
  • 8x digital zoom
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Supports distance measurement
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • Limited 3-year warranty

CHARACTERISTICS

Detector type: 12μm, Uncooled, 25 Hz

Refresh rate: 25 Hz

Resolution: 256 × 192

FOV: 9.24° × 6.94°



.

DOWNLOADS

Data Sheet
User Manual


SPECIFICATIONS

Battery life (operating at 20°С): Up to 4.5 hr

Palettes: Hot, White Hot, Red Hot, Fusion

Reticle: 5 types, 3 colors, on/off

Drop Test Height: 1.5m (4.9 feet)

Boresight Adjustment: Digital Controlled

Boresight Increment: 0.22 mil / 0.77 MOA

Distance Measurement: Yes (Stadiametric Rangefinder)

Scene Mode: Jungle, Recognition

Picture In Picture Mode (PIP): Yes

Hotspot: Yes

Video Recording: Yes

Defective Pixels Correction (DPC): Yes

Uniformity Correction: Auto, Manual, External Correction

Detector type: 12μm, Uncooled, 25 Hz

Standby Mode: Yes

Resolution: 256 × 192

Detection Range: 950m/yd

Snapshot: Yes

Lens system: 19 mm; F/1.0

Optical magnification: 2.5× - 20×

Field of view (H × X): 9.24° × 6.94°

Digital zoom: 1×, 2×, 4×, 8×

Eye relief: 45 mm

Display: 0.39-inch, OLED, 1024×768, 50 Hz

Storage: Built-in EMMC (16 GB)

Battery Type: Two CR123 (3V) Lithium

CVBS Output: Yes (via USB)

External power supply: 5 VDC/2 A, USB Type-C interface

Operating Temperature Range: -20°C to +55°C (-4°F to +131°F)

Degree of Protection: IP67

Weight: 520 g ( 1.15 lb)

Overall Dimensions: 187 × 63 × 80 mm (7.4 × 2.5 × 3.1 in)

Package Includes: Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
