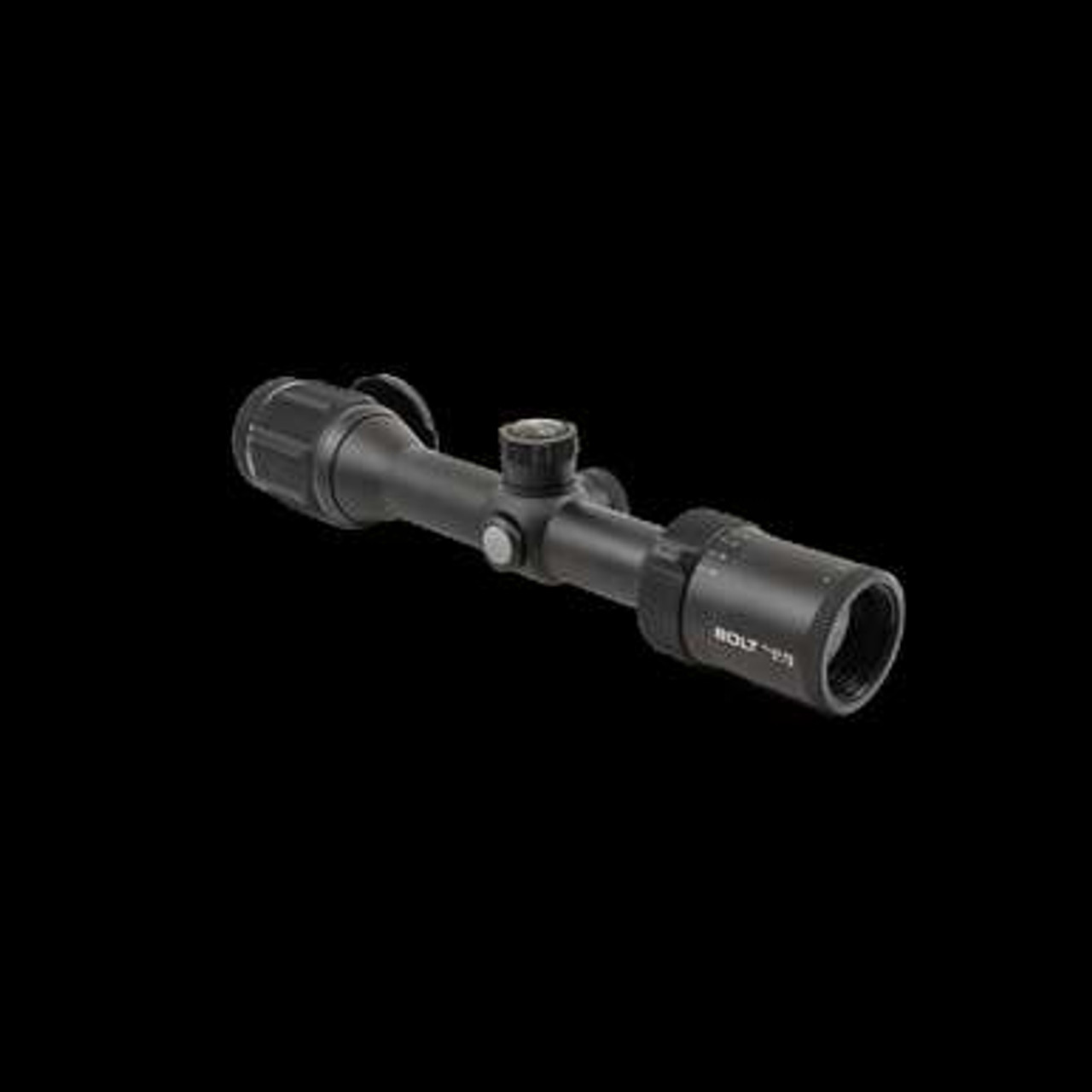

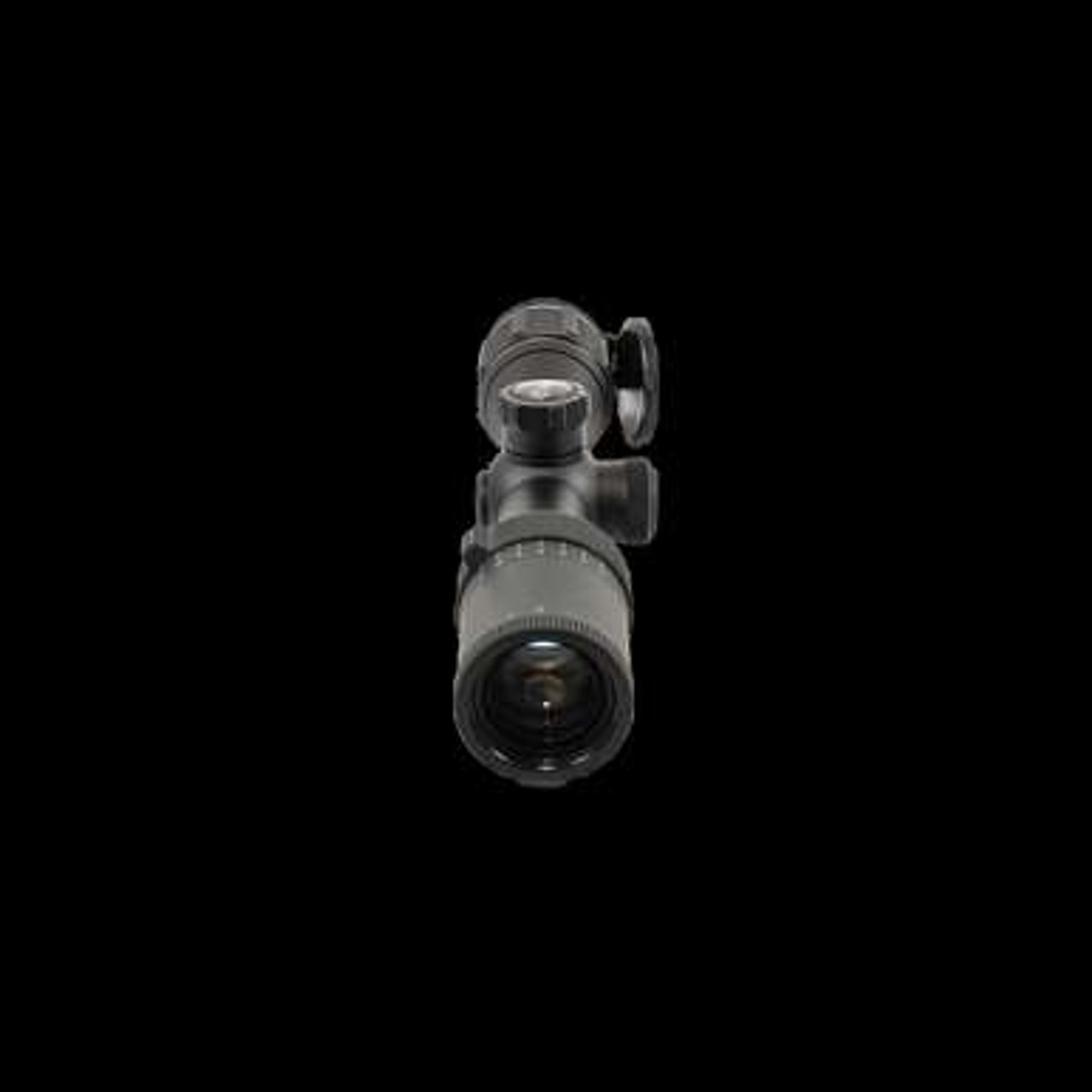

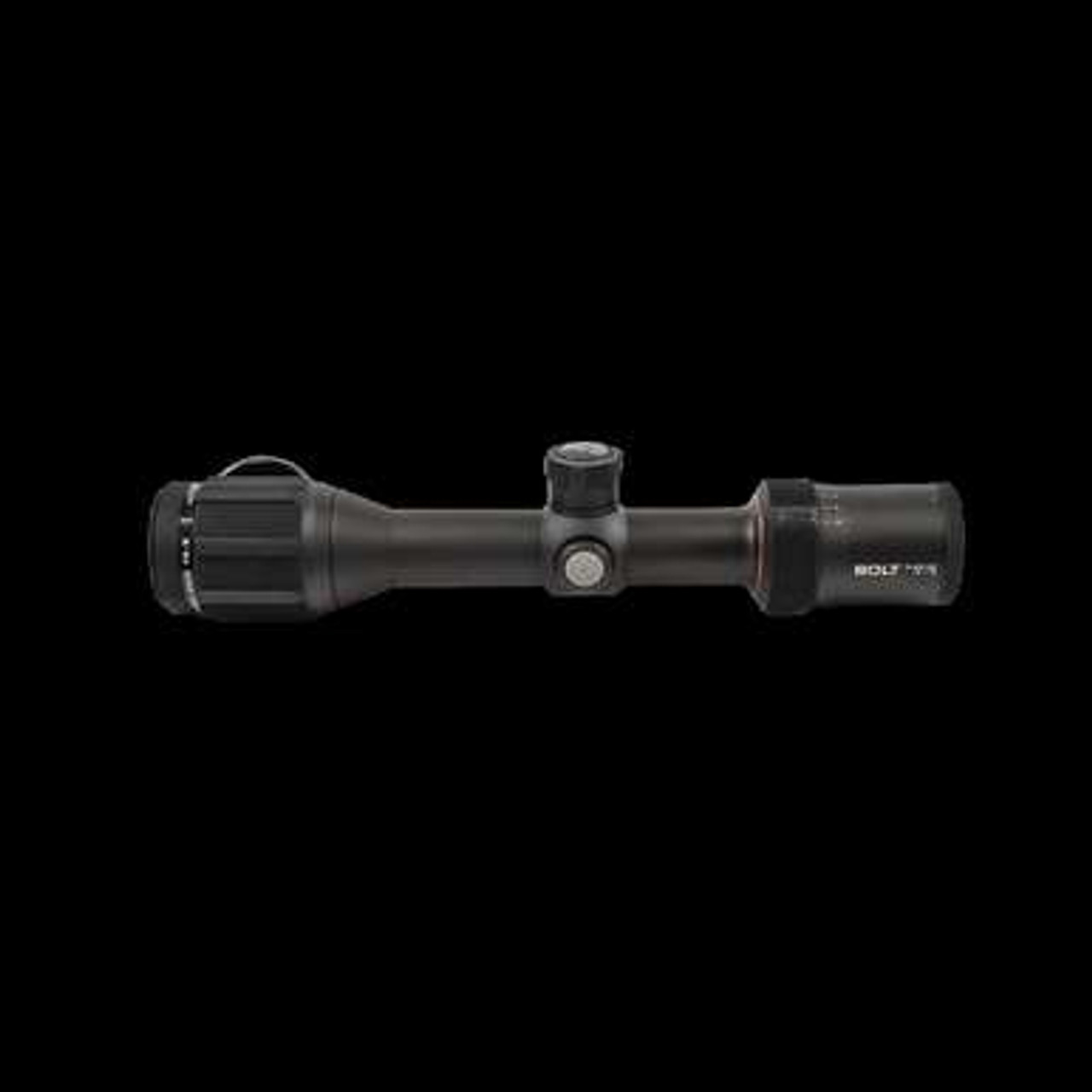

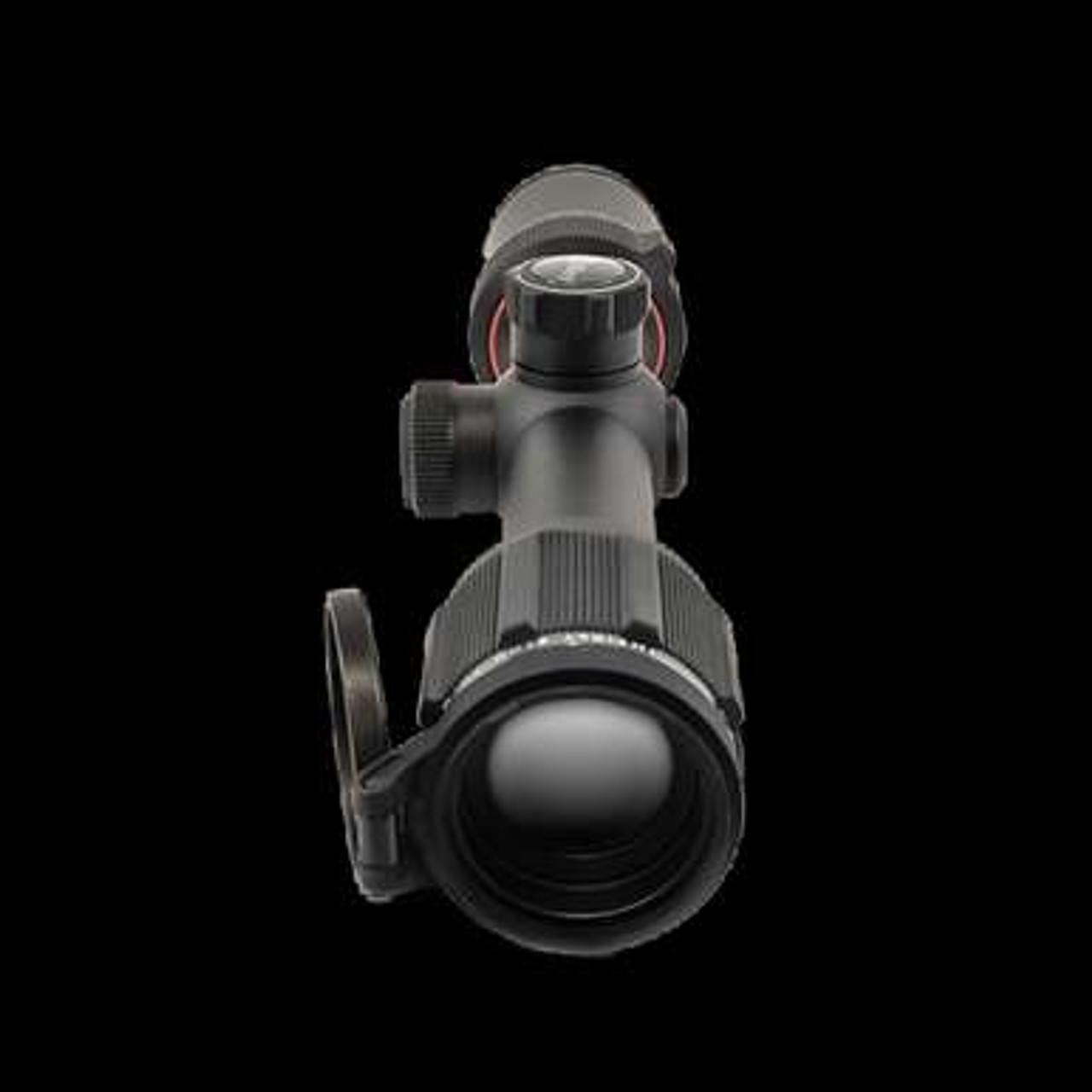

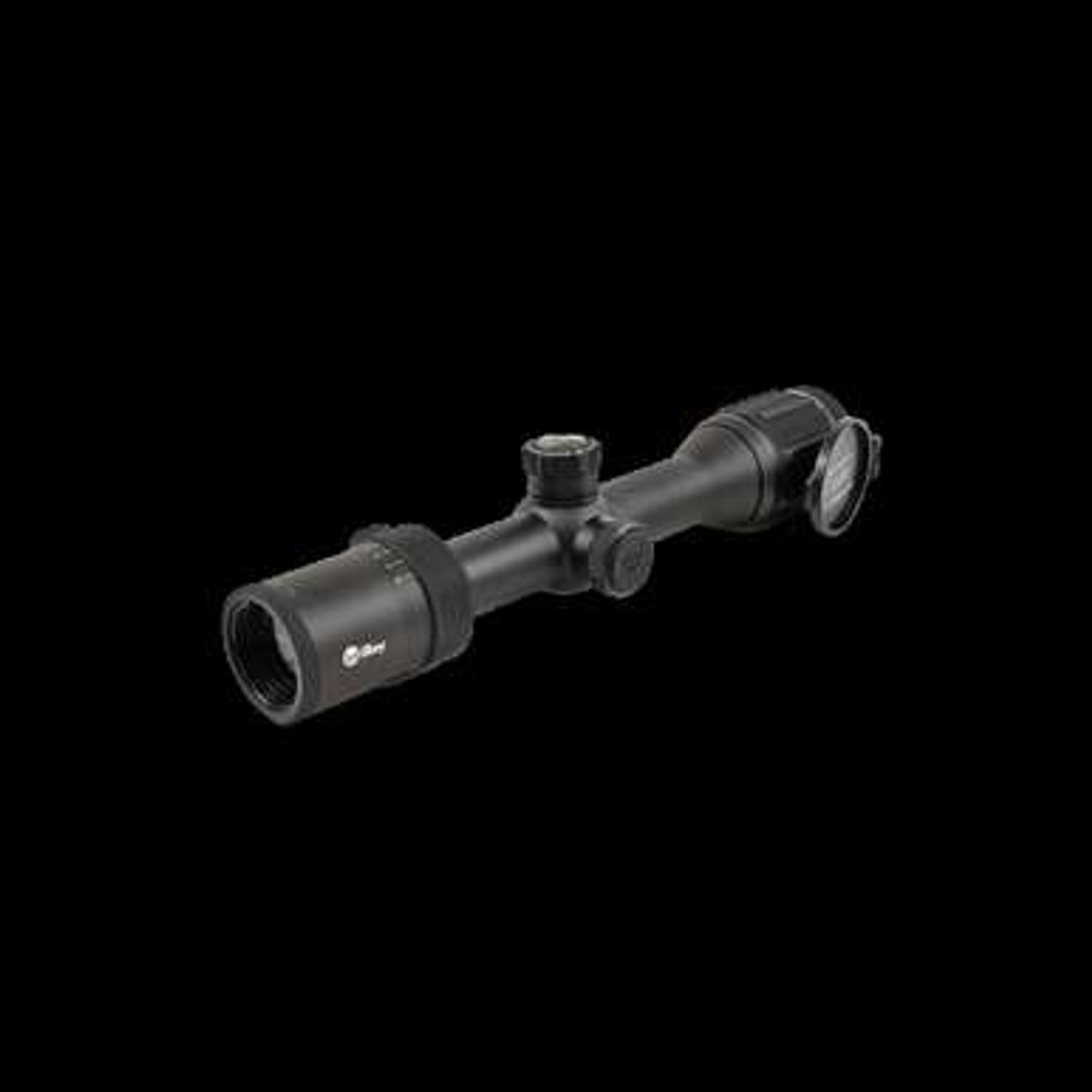

    • InfiRay BOLT TL25 SE Thermal Weapon Sight 384x288 25mm

    InfiRay Outdoor

    DNO PRICE: $1,999.00
    For a Limited Time $1,499.00
    SKU:
    IRAY-TL25SE
    Adding to cart… category.add_cart_announcement

    Product Description

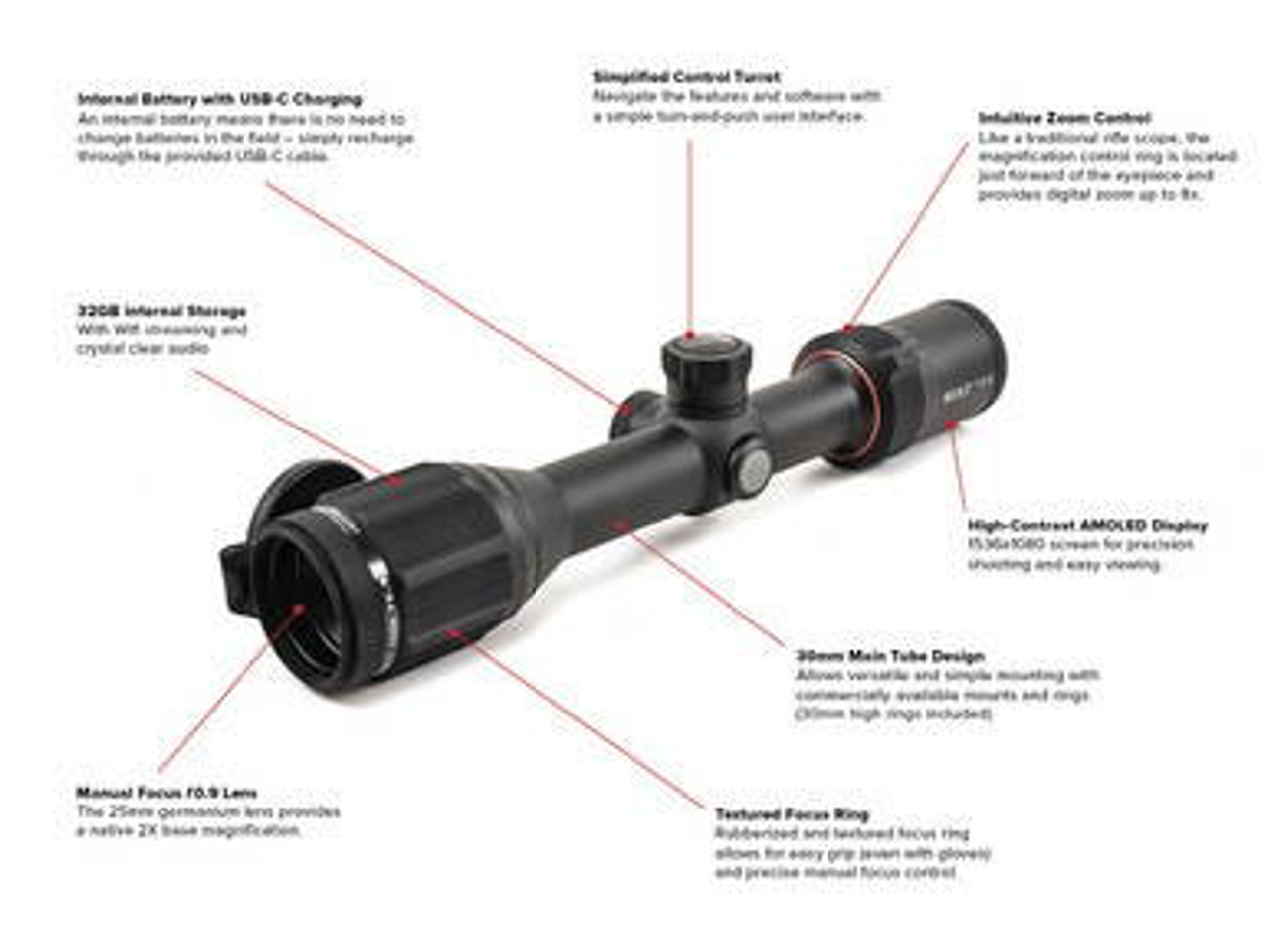

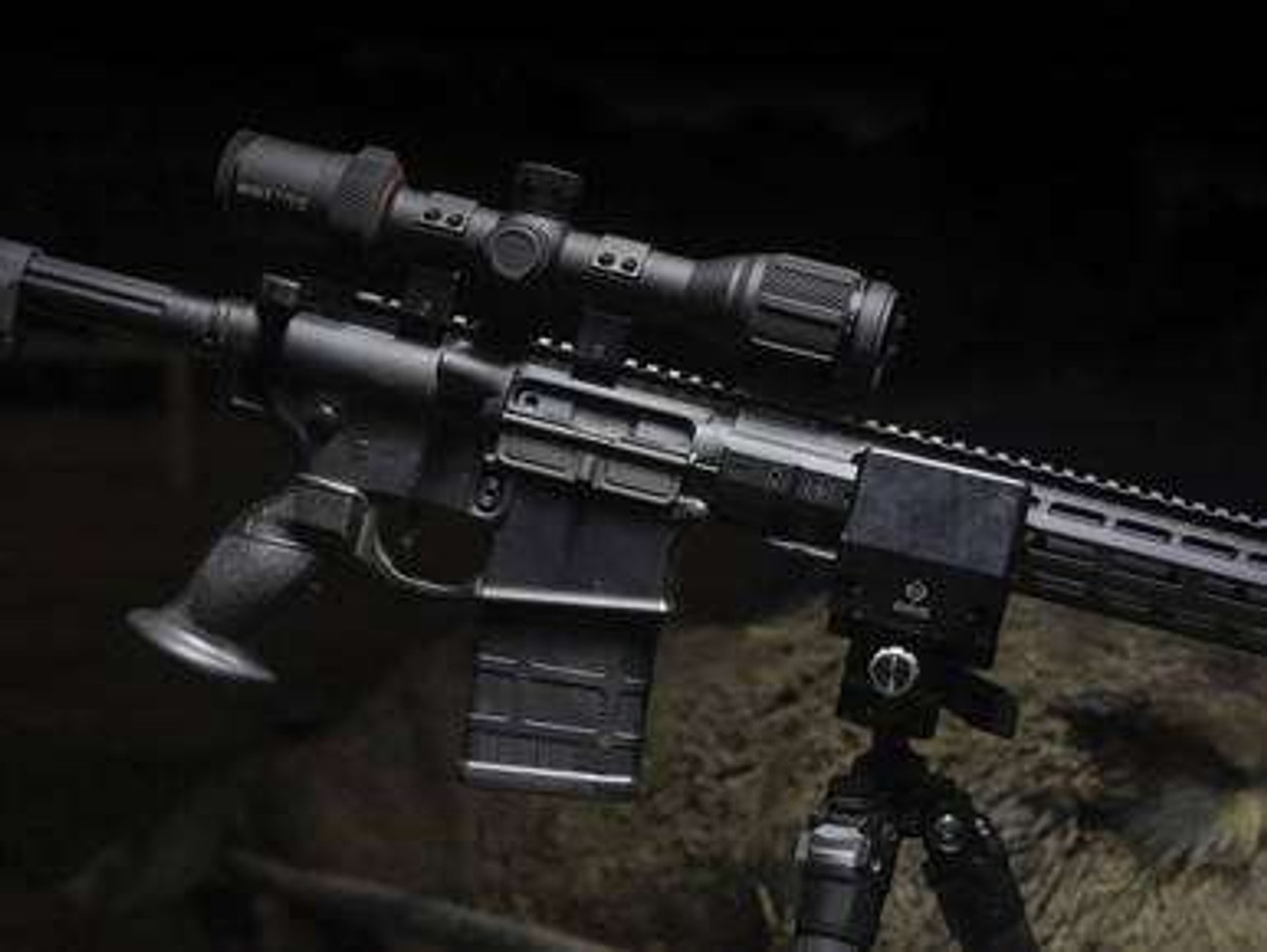

    The InfiRay Outdoor BOLT SE is built on the success of previous BOLT models with a focus on simplicity and ease of use. Designed with users of traditional rifle scopes in mind, the BOLT SE offers a familiar profile and tactile controls. InfiRay’s industry-leading 12 µm 384x288 Micro II sensor, paired with a 1536x1080 AMOLED display provides exceptional clarity across all zoom levels and is adjusted via an intuitive zoom ring. Hunters can appreciate the ability to use common mounting systems or the included 30mm rings to mount on bolt-action rifles or other platforms. An internal battery with USB-C charging eliminates the need to change batteries in the field. Photo and video recording with 32GB of internal storage and mobile app connectivity with wireless streaming allows users to share their experiences with friends and family.

    • Optics

      Objective Focal Length - 25mm
      Detection Range - 1375 Yards
      Display Type - AMOLED
      Eye Relief - 50mm
      Digital Magnification - 4X
      Diopter Range - -5 - +4
      Vertical Angular Field of View - 7.9°
      Horizontal Angular Field of View - 10.5°
      Focusing Mechanism - Manual Focus
      Objective F# - 1.0
      Objective Diameter - 25mm
      Objective Lens Material - Germanium
      Display Resolution - 1536×1080
      Optical Magnification - 2X

    • Features & Performance

      Warranty - 5 Years
      Startup Time - Under 10 Seconds
      Rangefinder - Bluetooth ILR-1200-1 LRF (Optional)
      Color Palettes - White Hot, Black Hot, Red Hot, Color, Highlight
      Picture-in-Picture - Yes
      Storage Capacity - 32GB
      Connector Output - Power/Data
      User-Updatable Firmware - Yes
      Mobile App - Yes
      Run Time - 8+
      Power Source - USB-C External, Built-In Battery Pack
      One-Shot Zero - Yes
      Stand-by Mode - Yes
      Reticle - 7 (1 Dynamic, 5 Static)
      Connector Type - USB-C
      Wifi - Yes
      Onboard Recording - Yes
      Image Capture - Yes

    • Environmental Specifications

      Operating Temperature Range - -4°F~122°F
      Recoil Rating - 1000 g/s² (300 Win./7mm Mag)
      Ingress Protection - IP67

    • Physical

      Mounting Interface - 30MM Rings (included)
      Housing Material - Aluminum Alloy
      Weight - 25.40
      Height - 2.76
      Width - 2.76
      Length - 12.20

    • Sensor Specifications

      Sensor Type - InfiRay MICRO II
      Device Technology - Thermal Imaging
      Sensor Pixel Size - 12μm
      Sensor Frame Rate - 50hz
      Sensor Resolution - 384×288
      Thermal Sensitivity - <25mk
      Non-Uniformity Correction (NUC) - Manual, Automatic, Semi-Automatic

    Other Details

    5-Year Warranty with a 5-Day Repair Guarantee At iRayUSA we are first and foremost hunters and users of our products and we understand that failure is not an option. One of our primary objectives at iRayUSA is to greatly improve the customer service level for the end user. We plan on accomplishing this through offering our industry-first 1-week repair guarantee, and by only working with highly qualified Authorized Dealers. During the published warranty period, iRayUSA will repair or replace, at its discretion, any optic that becomes defective from normal use. If we cannot repair an optic in less than one week, we will offer a replacement in like or better condition. We know you’ve never seen this from a thermal manufacturer, neither have we, and that’s one of the reasons we started iRayUSA. Our warranty follows the product, and is not tied to the original owner. The warranty period is tied to the date of sale to the dealer or end user registration. This warranty only covers normal use and does not cover cosmetic damage, normal wear, intentional damage, theft, loss, any act of God or a condition caused by use other than intended. Any product that is modified, opened or tampered with will void any warranty coverage. Any serial number damage or alteration on the product will be considered modification. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. One week starts from the time of receipt of product at iRayUSA. Customers must ship the product to iRayUSA, iRayUSA will return the product at no cost. No returns will be accepted without an RMA. iRayUSA is not liable for any damages or loss incurred when shipping to iRayUSA
