Product Description

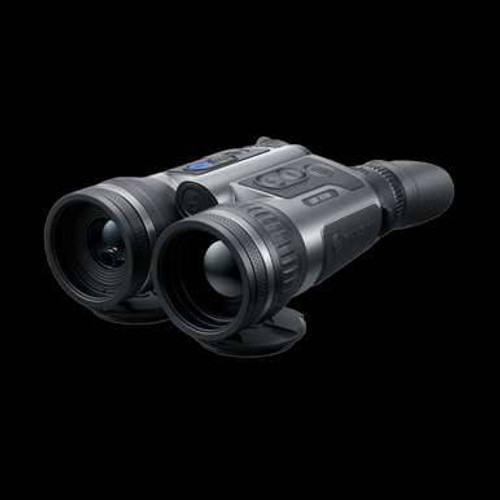

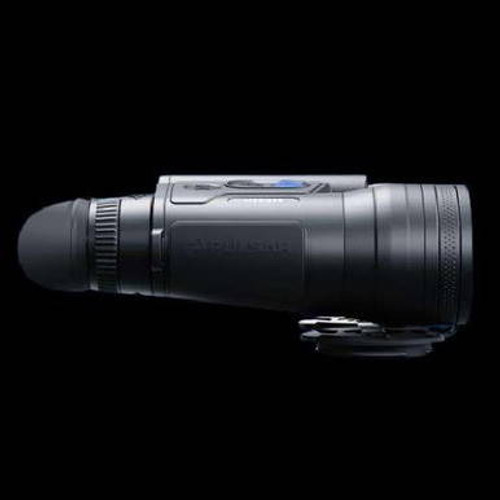

Thermal Imaging Binoculars
PULSAR MERGER LRF
Thermal performance with class
The Merger LRF represents our classic thermal imaging binocular design with an integrated laser rangefinder.
These binoculars are remarkably ergonomic and comfortable. They allow for two-eye observation and reduce eye fatigue. They are equipped with top-tier components that exemplify European quality.
Pulsar
PULSAR MERGER LRF XP35
The Pulsar Merger LRF XP35 is the most compact model of the range, yet offers the widest in-class field of view – 17.8°. At the same time, it features great thermal sensitivity for extremely informative observation in the toughest conditions.
Main specifications
Sensor - (NETD < 25 mK) @ 17 µm 640x480 pix.
Objective lens - F35 / 1.0
Magnification - 2 – 16x
FOV (HxV)degrees / m@100m - 17.
Detection range - 1350m
Sensor
NETD, mk - < 25
Type - uncooled
Resolution - 640x480 pixels
Pixel pitch - 17µm
Frame rate - 50Hz
Optics
Objective lens - F35/ 1.0
Magnification - 2 – 16x
FOV (HxV)degrees / m@100m - 17.8
Interpupillary distance adjustment - 63-74mm
Eye relief - 15mm
Display
Type - AMOLED HD
Resolution - 1024x768 pixels
Laser rangefinder
Max. measuring range - 1000m
Measurement accuracy - ± 1m
Safety class for laser equipmentaccording to IEC 60825-1:2014 - 1
Wavelength - 905nm
Video recorder
Video / photo resultion - 1024x768pixel
Video / photo format - .mp4 / .jpg
Build-in memory - 16GB
WI-FI
Wireless protocol - Wi-Fi
Wireless standard - IEEE 802.11 b/g/n/ac (WPA)
Frequency - 2.4 / 5Ghz
Environmental characteristics
Degree of protectionIP code (IEC60529) - IPX7 (waterproof)
Operating temperature range - -25 – +50°ะก
Connections and compatibilities
Mount type - 1/4" socket
Supported application - Stream Vision 2
Weight & size
Body material - Magnesium alloy
Dimensions - 165x133x68mm
Weight - 0.83kg (batteries included)
A selection of 8 color palettes
