Product Description

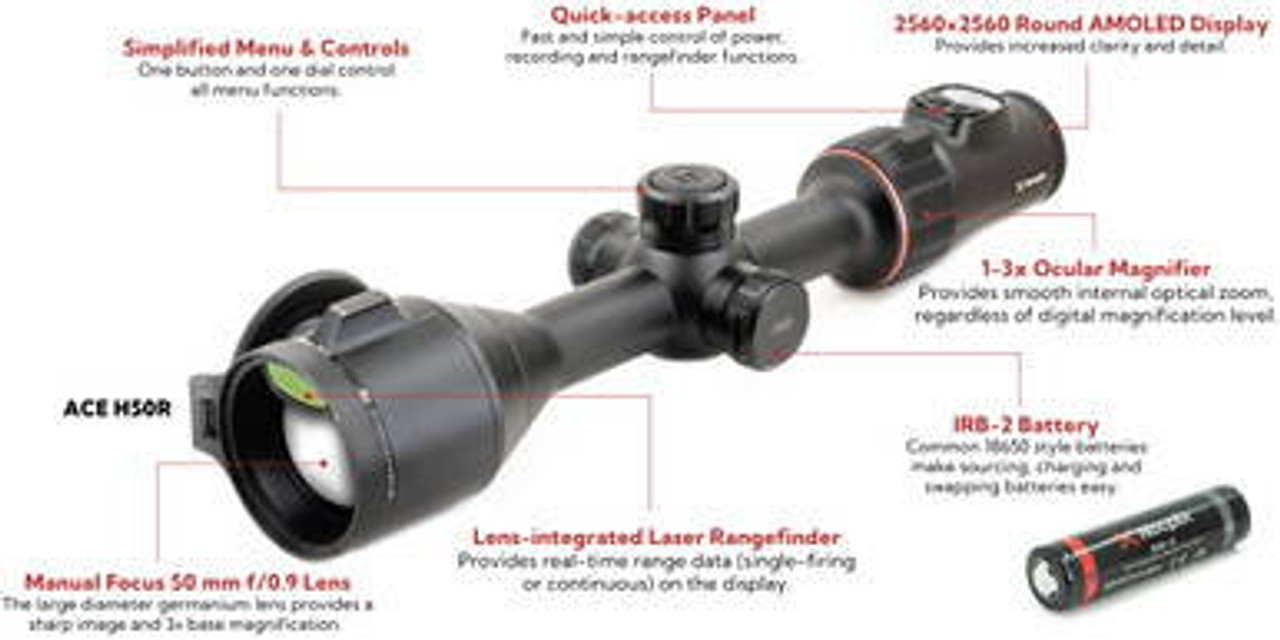

The new NocPix Ace H50R thermal scope combines a sleek tube-style design with powerful performance features. It includes a 12-micron 640×480 thermal sensor with an impressive 15mK NETD, providing exceptional image clarity. Paired with a 50mm focal length lens and an integrated laser range finder (LRF), it offers precise ballistic calculations for accurate targeting in any condition.
• 15mK NETD – 2600m Detection Range
• 50mm F0.9 Lens with Ocular Display Zoom
• Built-in LRF & Ballistic Calculation (ACE H50R / ACE S60R)
• Recoil Activated Video Function
• Dual Power Supply System
• Built-in memory, supporting photographing, video recording
• Built-in Wi-Fi module, supporting APP connection
Specifications
Sensor: Nocpix 640 (640×512) 60 Hz
Objective Lens: 50 mm F/0.9
NETD: ≤15 mK
Magnification: Native/Optical: 3X Base, Digital: 8X
Data Sheet: ACE H50R Data Sheet
Product Manual: ACE Series Manual
Device Technology: Thermal Imaging
Pixel Size: 12 μm
Display Resolution: AMOLED 2560×2560
Detection Range: 2850 Yards
Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Reticles: 8 (1 Dynamic, 6 Static, 1 DIY)
Rangefinder: Integrated 1300 yd LRF
