Optics
Optical Magnification - 1XDigital Magnification - 4XObjective Lens Material - GermaniumHorizontal Angular Field of View - 17.5°Vertical Angular Field of View - 14°Detection Range - 1375 YardsObjective Focal Length - 25mm f/1.0Objective Diameter - 25mmObjective F# - 1.0Focusing Mechanism - Manual FocusEye Relief - 35mmDisplay Type - AMOLEDDiopter Range - -4 - +4Display Resolution - 1024×768 -
Features & Performance
Reticle - 7Connector Type - "Data Cable with USB, BNC, and 7-Pin Connectors"Color Palettes - White Hot, Black Hot, Red Hot, ColorUser-Updatable Firmware - YesMobile App - YesStorage Capacity - 64gbConnector Output - AnalogPicture-in-Picture - NoOne-Shot Zero - NoStand-by Mode - YesRangefinder - NoRun Time - 4 HoursPower Source - 18650 RechargeableWifi - YesOnboard Recording - Video and ImageImage Capture - YesVideo Output - Analog RS-170/NTSCStartup Time - <10 Seconds, Instant from StandbyExternal Power Source - Yes, 7-Pin to USB 5VWarranty - 5 Years -
Environmental Specifications
Operating Temperature Range - -4°F to 122°FRecoil Rating - 1000 g/s² (300 Win./7mm Mag)Ingress Protection - IP67 -
Physical

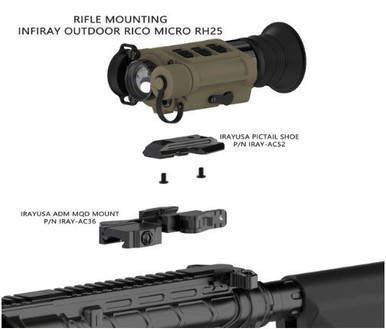

Mounting Interface - MUM rail/Picatinny STD-1913 rail, PICTAIL optionalHousing Material -AluminumLength - 4.52 inHeight - 2.55 inWidth - 1.88 inWeight - 12.7 oz -
Sensor Specifications
Device Technology - Thermal ImagingSensor Type - InfiRay MICRO IISensor Resolution - 640×512Non-Uniformity Correction (NUC) - Manual, Automatic, Semi-AutomaticSpectral Response - 8-12 MicronsSensor Frame Rate - 50hzSensor Pixel Size - 12μmThermal Sensitivity - <50mk
