Wave |SKU: WHM110

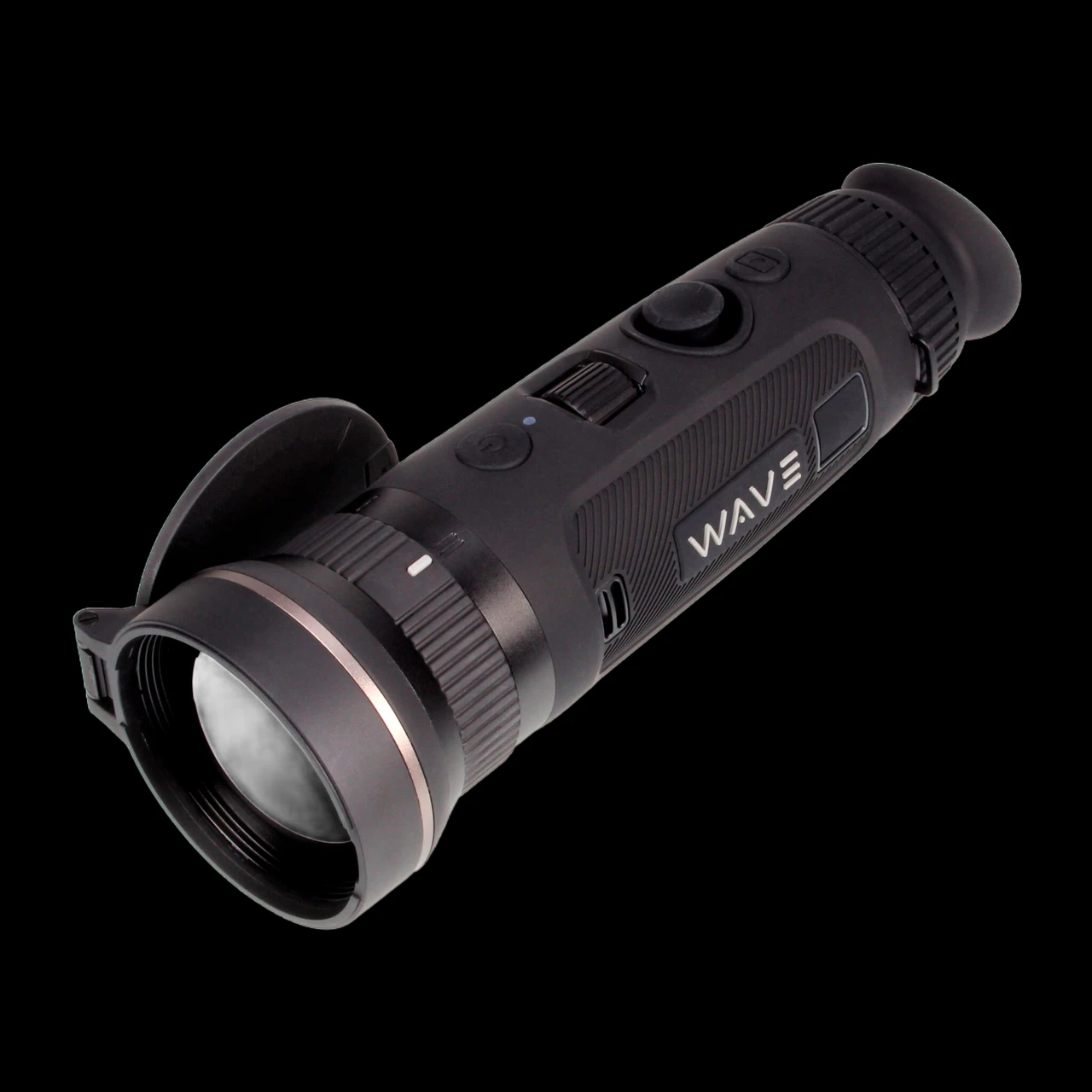

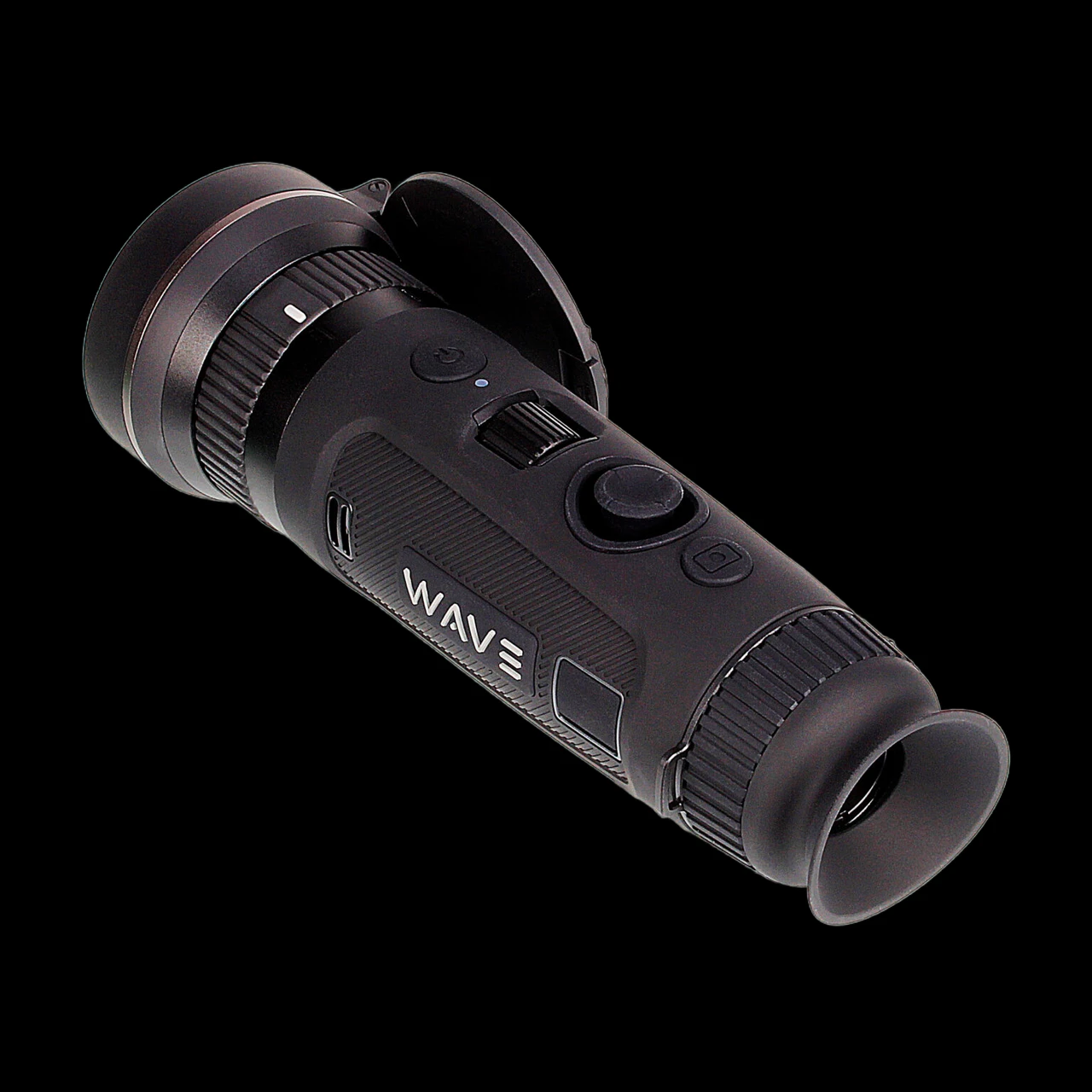

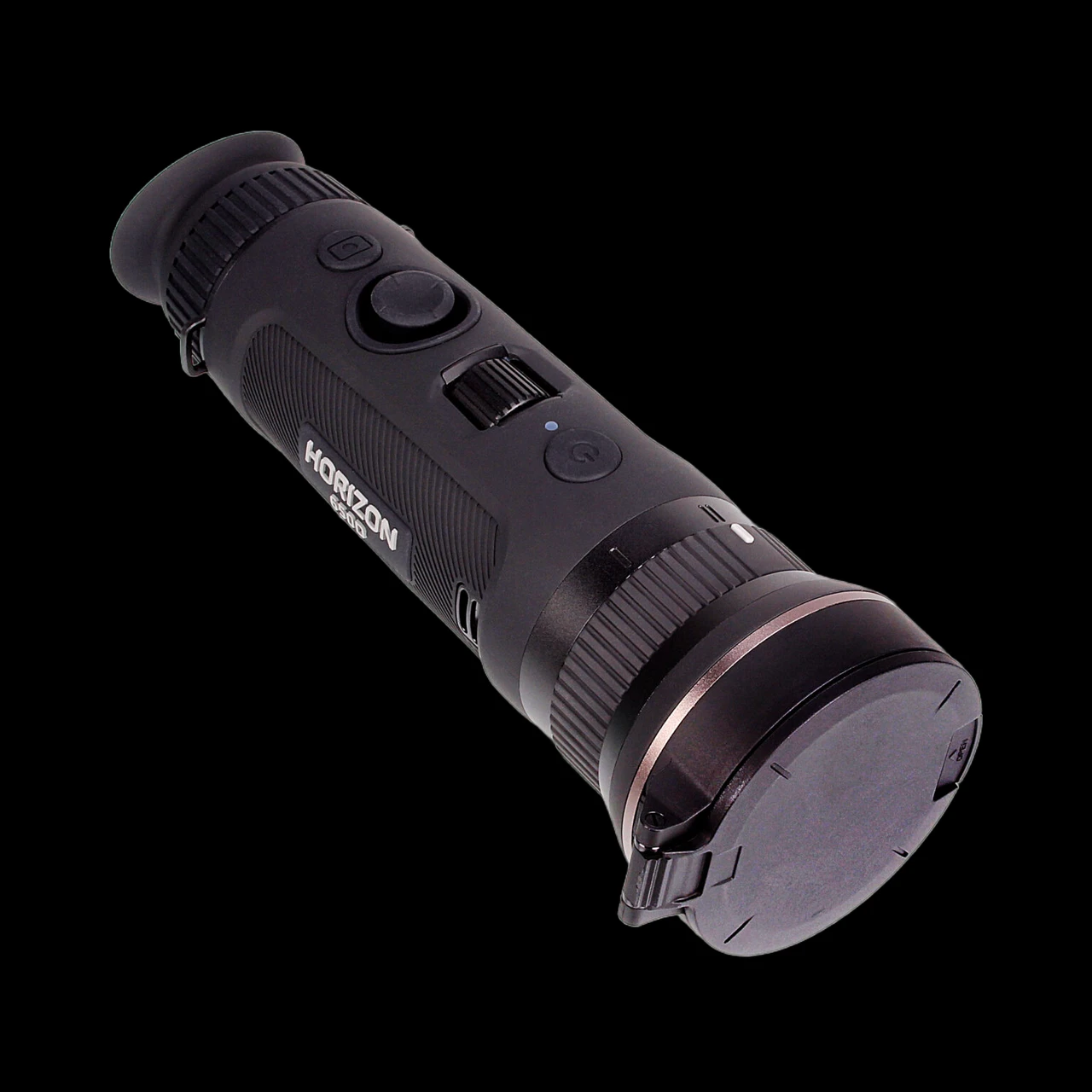

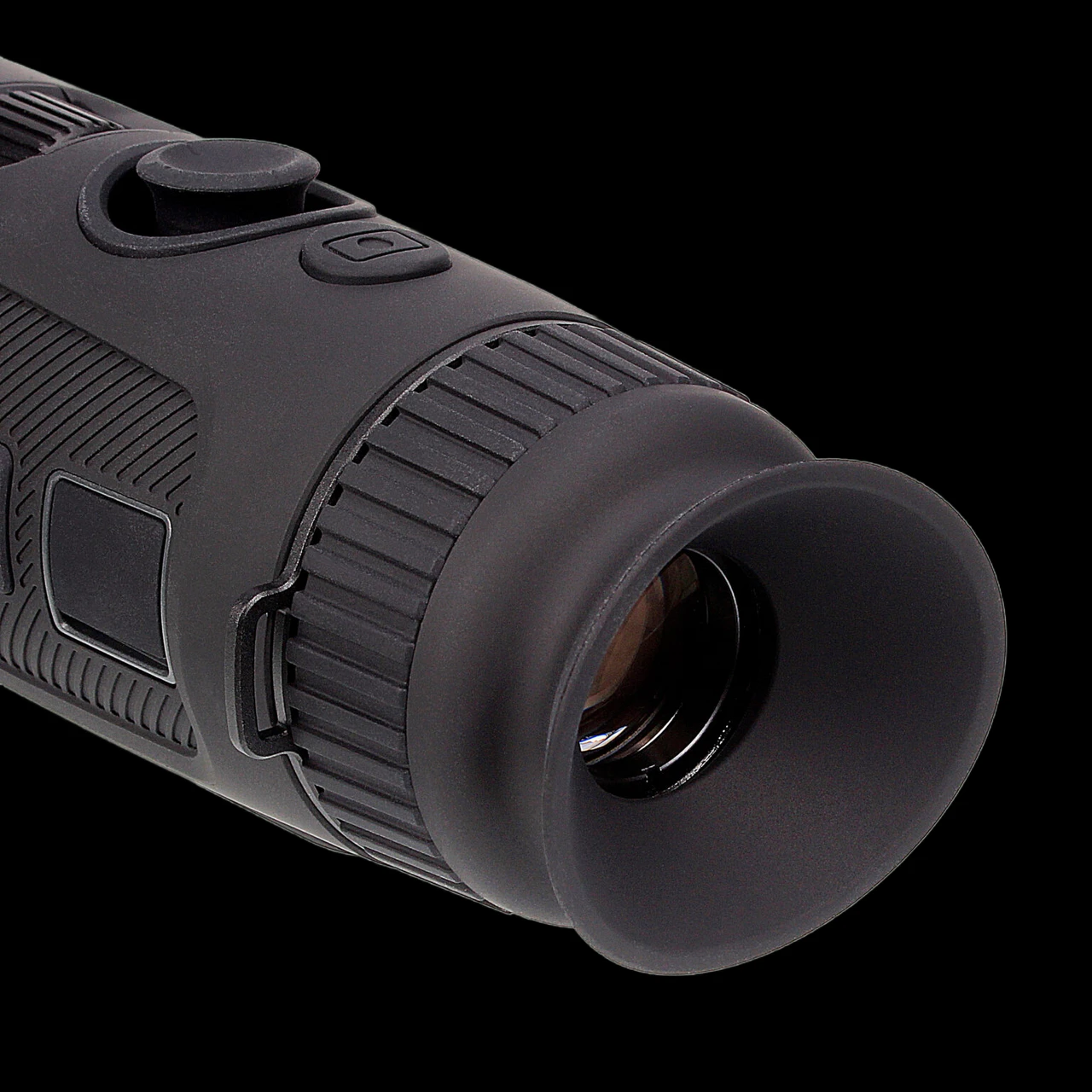

WAVE Horizon 650D

Watch 2 videos Specs Overview

MSRP: $3,669.00
$3,499.00
You save $170.00
Adding to cart… category.add_cart_announcement
Questions? Call 309-781-8421Real people who use these optics. Open every day, 8am - 9pm.
  • Free shipping on orders over $399*
  • No sales tax outside Illinois
  • No card fees and 2% off when you pay by e-check
  • Hunters on the phone to help you choose

Overview

Experience elite thermal clarity and flexibility with the WAVE HORIZON 650D Infrared Dual-Lens Thermal Monocular. Featuring a 640×512 12μm sensor and dual f/0.9 lenses (25mm & 50mm), it delivers crisp imaging and long-range detection beyond 2800 yards. Enjoy AI-powered ranging, target tagging, onboard recording, and live streaming—all in a rugged, compact build backed by a 5-Year Transferable Warranty.



Horizon 650D Description



Maximum precision meets rugged performance in the WAVE HORIZON 650D Infrared Dual-Lens Thermal Monocular. Designed for hunters, professionals, and tactical operators who demand the best in thermal vision technology, this compact powerhouse features a high-resolution 640×512 12μm sensor with <15mK NETD sensitivity, delivering crystal-clear thermal images even in high humidity and fog.

Whether you’re scanning wide terrain or pinpointing heat signatures at over 2800 yards, the HORIZON 650D dual-lens system (25mm and 50mm, both f/0.9) offers unmatched versatility. Use the 25mm lens for an ultra-wide 930’ field of view or switch to the 50mm lens for detailed long-range detection. With intelligent features like AI-powered ranging with target tagging, onboard photo/video recording, and real-time live streaming via the WAVE Infrared App, this device redefines what’s possible in the field. Backed by our 5-Year Transferable Warranty.

Horizon 650D Features



UPG (Ultra-Pure Germanium) Objective Lens
Exceptional lens for maximum thermal energy transfer. Achieve 100% sensor capacity utilization.

Dual Lens System
Two monoculars in one give hunters and professionals a tactical edge.

G6 (Sixth Generation) 12-Micron Thermal Sensor
True sub-15mk NETD for incredible performance in high humidity and fog

Intuitive Joystick Operation
No fumbling through buttons, easy-use joystick for simplified “in-the-dark” operation.

Compact Design For True One-Hand Operation
The compact design makes for a lighter and smaller device; everything is accomplished with one hand.

Top Knob Focus
Superior design for faster and more precise one-finger target focusing.

Artificial Intelligence Range Estimator with Target Tagging
Instantly identify and mark targets with advanced AI precision.

Advanced Digital Zoom
Digital zoom offers precise zoom control and a more traditional scope experience.

Rugged Mil-Spec Magnesium Construction
Built for maximum durability and heat dissipation away from the sensor.

Uses Commonly Available Rechargeable Batteries
It uses one 18650 protected-style battery, which is included with a high-quality charging cradle.

Onboard Battery Charging
Capable of recharging from wall, vehicle, or power bank on the fly.

Exceptionally Long Run Times
Expect 9+ hours of run time between recharging.

Free Phone App (Android and iOS)
Exceptional remote live streaming, image/video management, and firmware updates.

5-Year Transferable Warranty
Our industry-leading “transferable” warranty for peace of mind and easy resale.



Horizon 650D Specs



Sensor Resolution: 640 x 512
Pixel Pitch: 12 um
NETD: <15mK
Spectral Range: 750 to 1400 um
Refresh Rate: 50 HZ
Detection Range: >2800 Yards @ 50mm
Objective Lens Primary: 50mm / F0.9
Objective Lens Secondary: 25mm / F0.9
Magnification @ 20mm Focal Length: 1.5x to 6.0x
Magnification @ 50mm Focal Length: 3.0x to 12.0x
Field of View @ 25mm Focal Length: 930′ @ 1000 Yards
Field of View @ 50mm Focal Length: 465′ @ 1000 Yards
Body Housing: Magnesium
Eye Relief: 50mm
Exit Pupil: 6.6mm
Display Resolution: HD AMOLED / 1024 x 768
Photo/Video Capability: Yes
Audio Recording: Yes
Internal Memory: 64 GB
Scene Color Palettes: 6 (White, Black, Red, Green, Violet, Gold)
Image Stability: Yes
Digital Zoom: 4X
USB-C Data Output: Yes
Length / Weight: 7.4 inches / 23 oz.
Artificial Intelligence Ranging: Yes with Target Tagging
WIFI: Yes / 100′ Connectivity
Neck Lanyard and Hand Strap: Yes – Included
Tripod Mountable: Yes
Onboard Charging: Yes
Battery Type: (x1) 18650 Protected
Battery Life: 9+ Hours
Internal Battery: Yes (User Serviceable / Replacable)
Waterproof: IP67
WAVE INFRARED APP: YES, IOS and Android
Real-Time Live Streaming: Yes
Low Operational Temperature: -20 Degrees Fahrenheit
High Operational Temperature: 130 Degrees Fahrenheit
Warranty: 5 Years
UPC: 85003045943







Specs

Brand
Wave
SKU:
WHM110
UPC:
85003045943

Videos

Videos Hide Videos Show Videos

Frequently Asked Questions

How far can the WAVE Horizon 650D see?

WAVE rates detection beyond 2,800 yards on the 50mm lens. Detection means you see that something warm is there, and you need to be closer to tell a coyote from a deer. The usual move is to sweep with the 25mm lens, then switch to the 50mm and its 3x to 12x magnification to look harder at what you found.

Who makes the WAVE Horizon 650D?

WAVE makes it, and the same company runs the WAVE Infrared app the Horizon streams to over Wi-Fi. The 650D is backed by a 5-year transferable warranty, so it carries over if you sell it. We sell the rest of the WAVE lineup too, and we help you reach WAVE if a unit needs warranty work.

Why does the Horizon 650D use infrared for thermal imaging?

Every warm object gives off infrared energy, and a thermal sensor turns that energy into a picture. The Horizon's 640x512, 12 micron sensor sits behind f/0.9 germanium lenses, because ordinary glass blocks thermal infrared. Its NETD under 15mK means it can show small temperature differences, which helps in fog and high humidity.

Can the Horizon 650D see through walls or windows?

No. Thermal reads the surface temperature of whatever is in front of it, so walls block it, and so does ordinary glass. If you scan from inside a truck or a box blind, open the window first. Light fog and darkness are a different story, and the Horizon handles those well.
