Overview

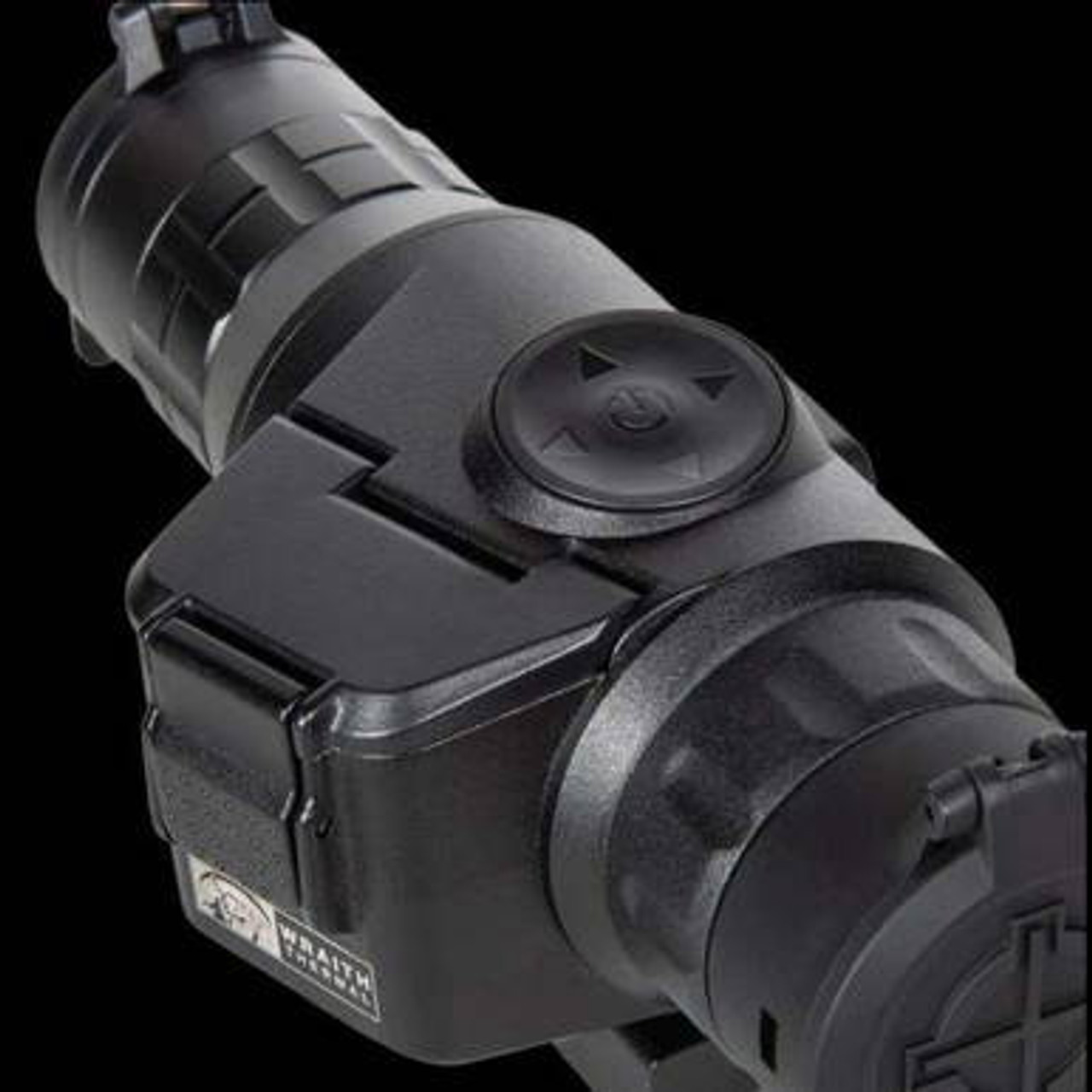

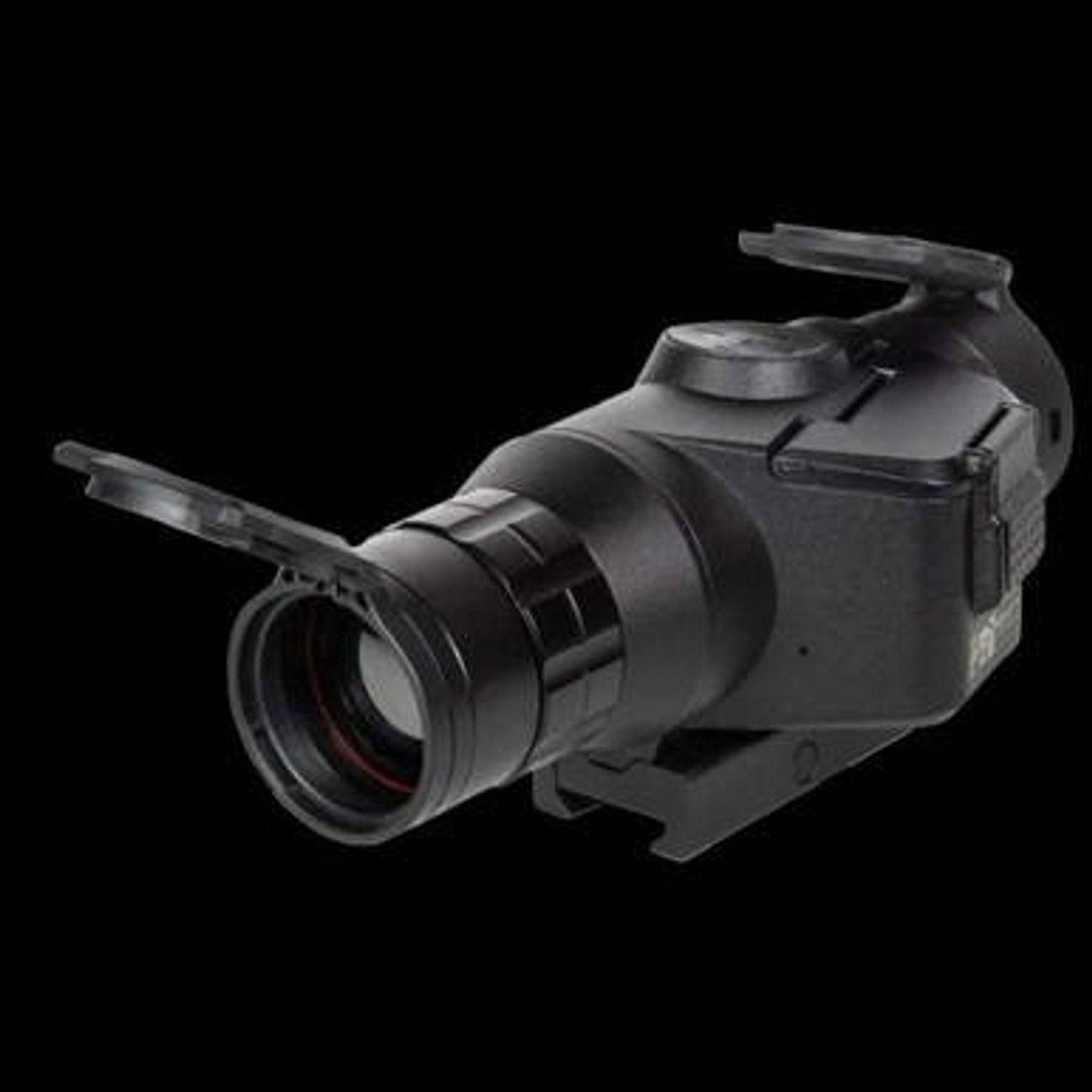

The Wraith Mini has evolved once again. Sightmark’s high performance digital night vision optic is now offered in thermal with the same peerless image quality, rugged durability and adaptability that customers have come to expect from the Wraith name.
No longer limited to digital day and night vision, the Wraith Mini Thermal Riflescope can now harness the power of digital infrared through its 384x288 resolution thermal sensor to provide users with crisp images. With five thermal color palette modes and nine reticle colors to choose from, the Wraith Mini Thermal is perfectly suited for any time of day and any game animal.
The OLED display provides rich color and temperature operation while its five configurable weapon profiles allow it to hold multiple zeroes for different types of weapons, eliminating the need to re-zero the Wraith Mini Thermal every time it’s mounted on a different rifle.
Aside from these already impressive features, the Wraith Mini Thermal also comes equipped with a built-in camera with audio recording, capable of preserving the very best moments of a user’s hunt on a high-capacity memory card (256gb max).
The Wraith Mini Thermal boasts a 1400 yard detection range and 2x optical magnification with 1-8x digital zoom. Combined with its 1024x768 display resolution, this gives the Wraith Mini Thermal optimal image quality for close or medium engagements.
With rugged and dependable aluminum housing and temperature resistance from -4°F to 122°F, the Wraith Mini Thermal is designed for difficult outdoor environments and is built to last. With its battery life of 3.5 hours on video mode and 4.4 hours on preview mode as well as USB charging capability, the Wraith Mini Thermal is a necessity for night hunters everywhere.
Included in Package

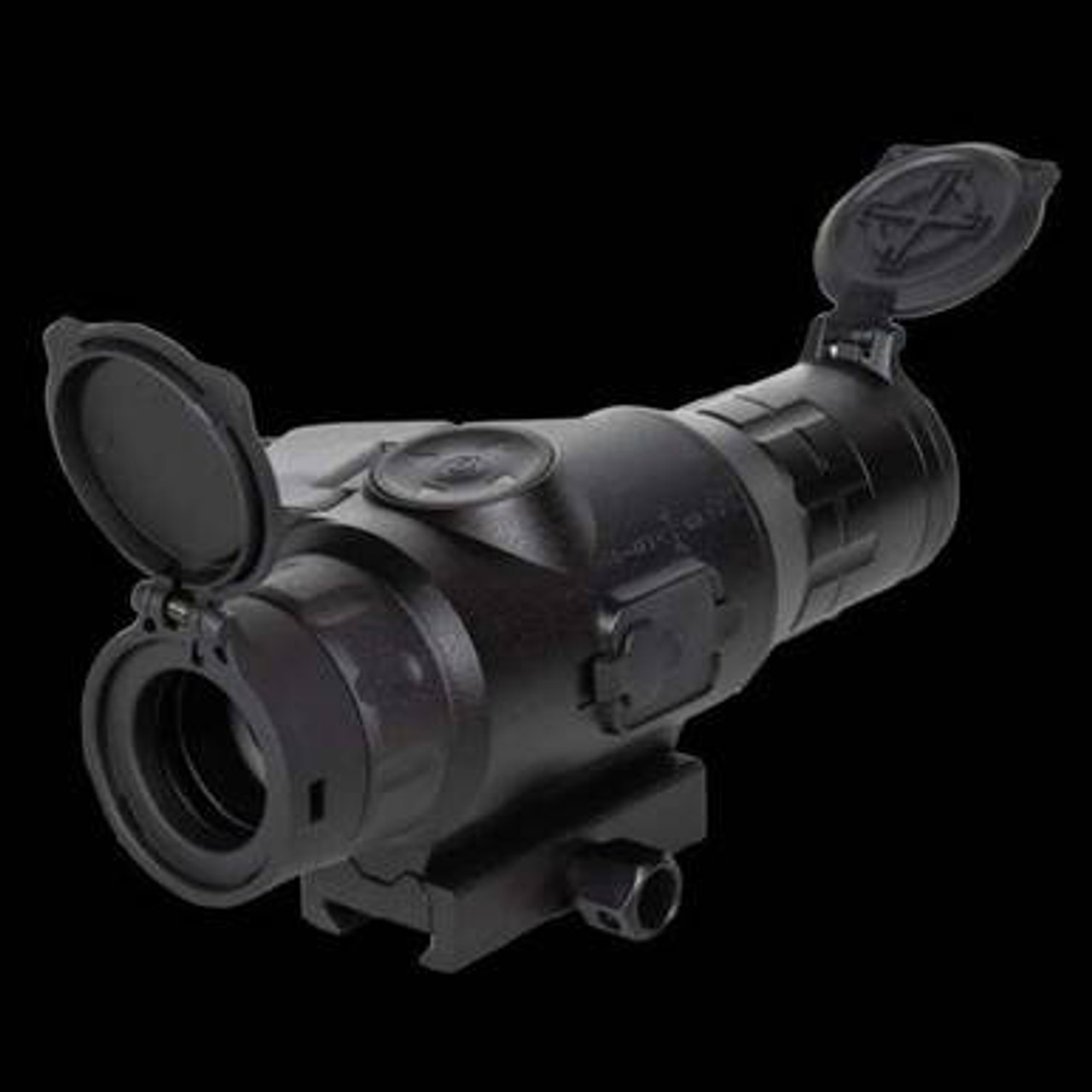

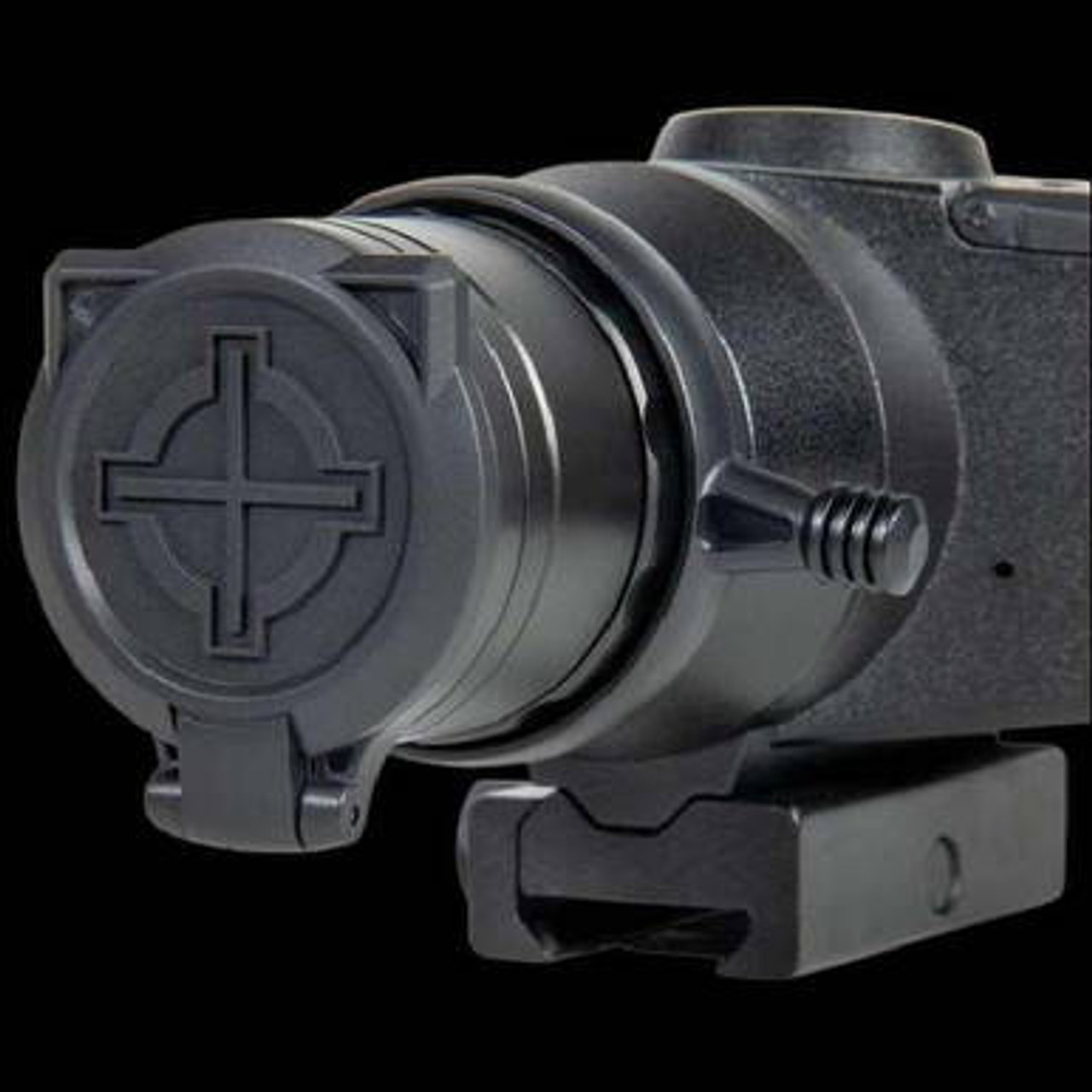

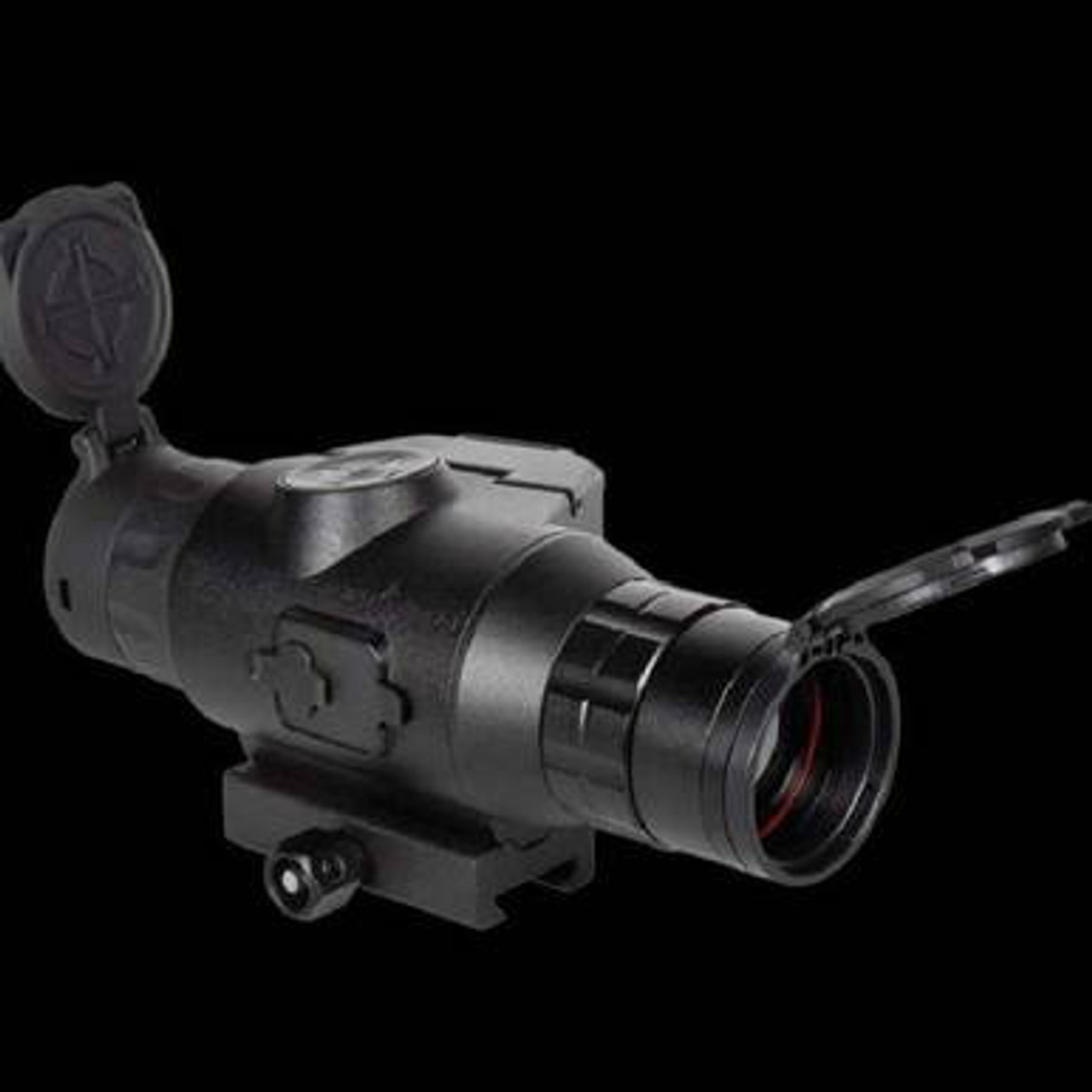

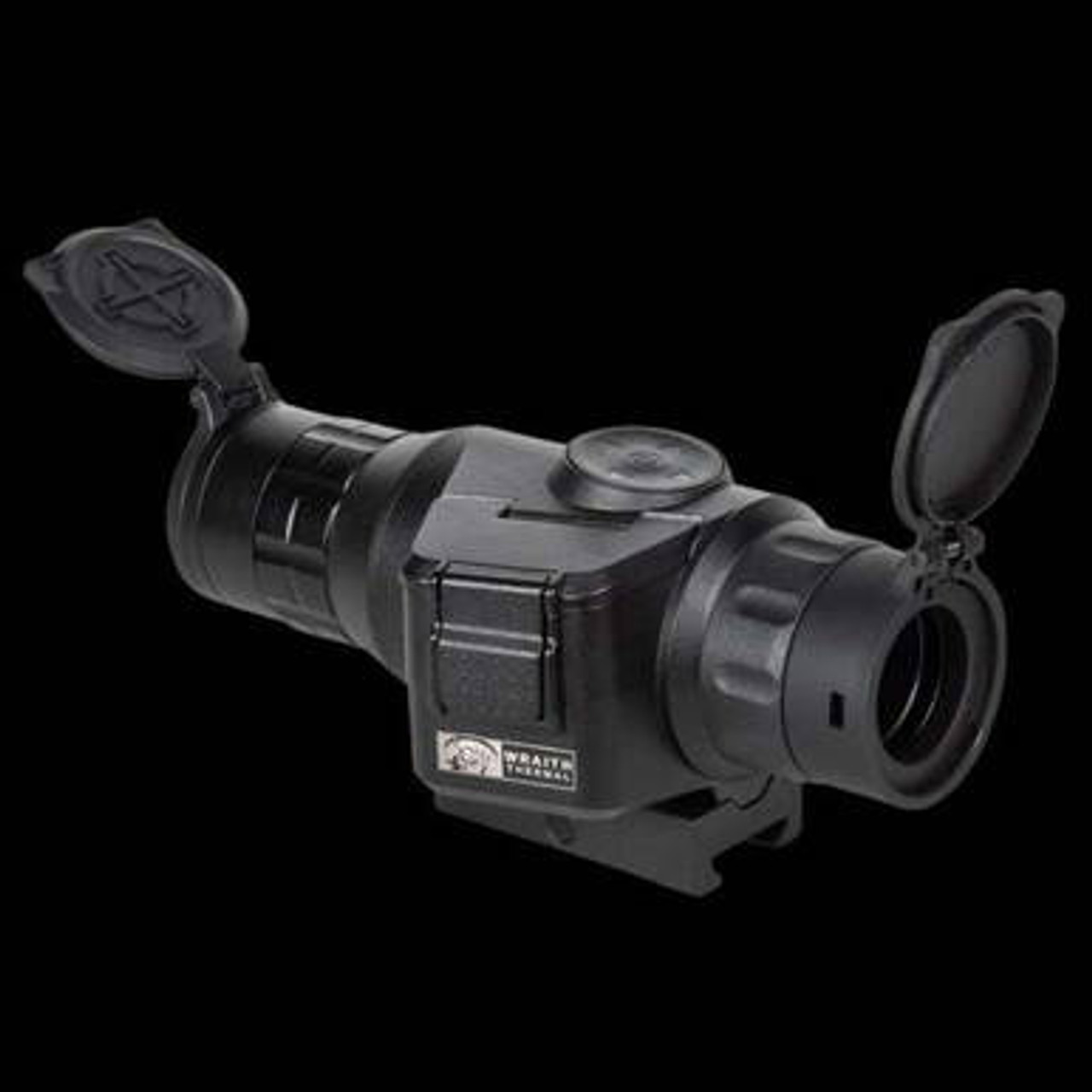

- Flip-Up Covers (Front and Back)
- Removeable Throw Lever

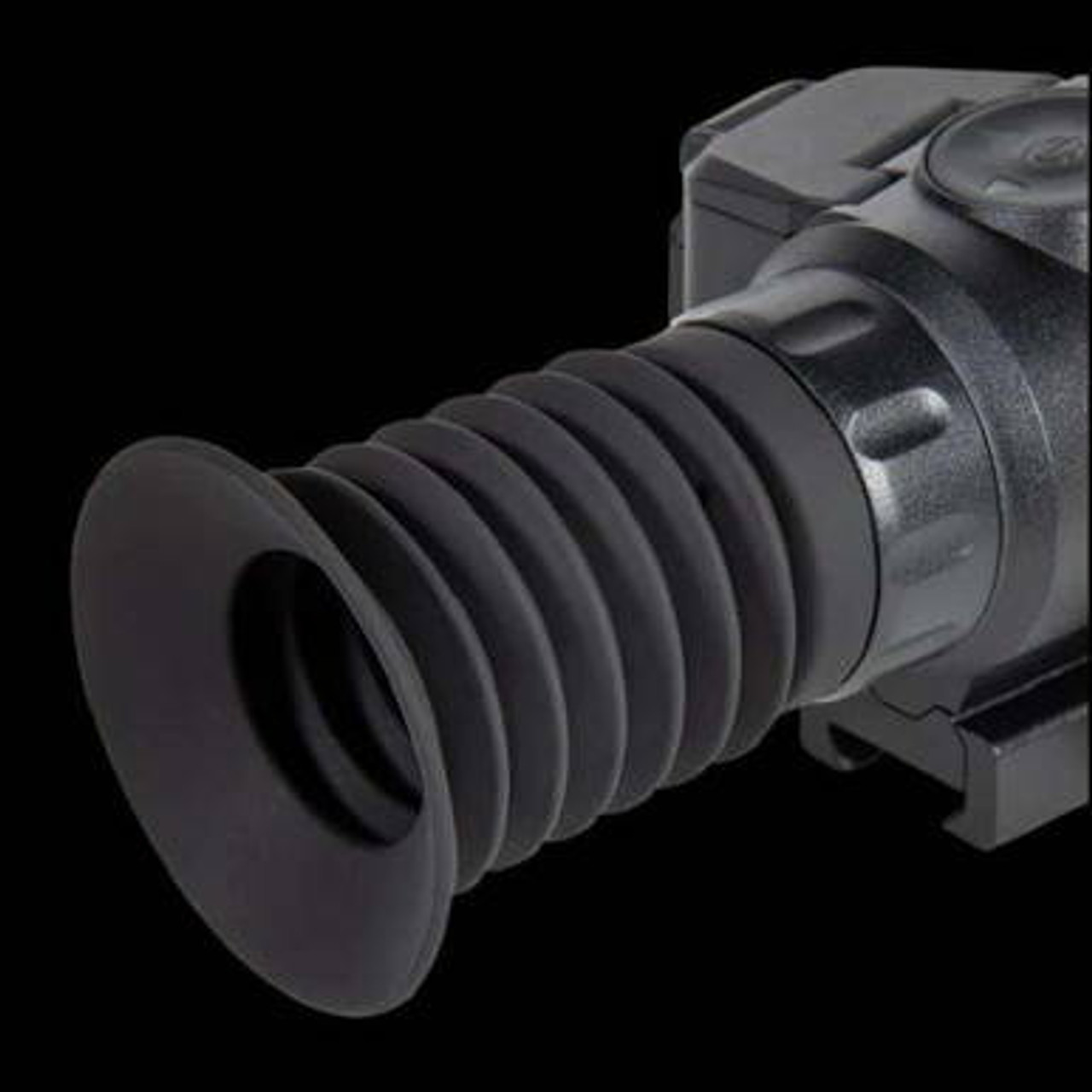

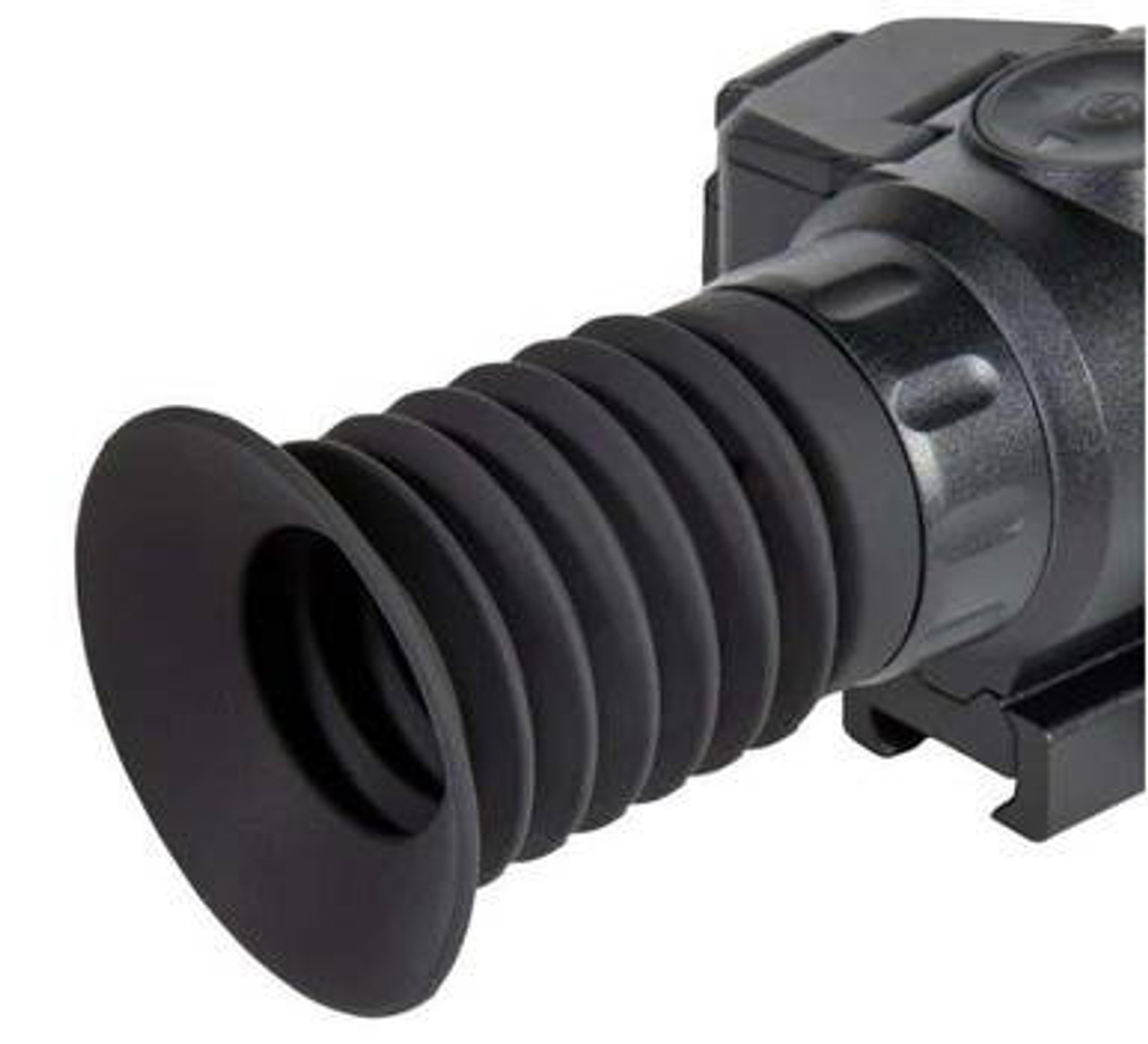

- Rubber Eyecup

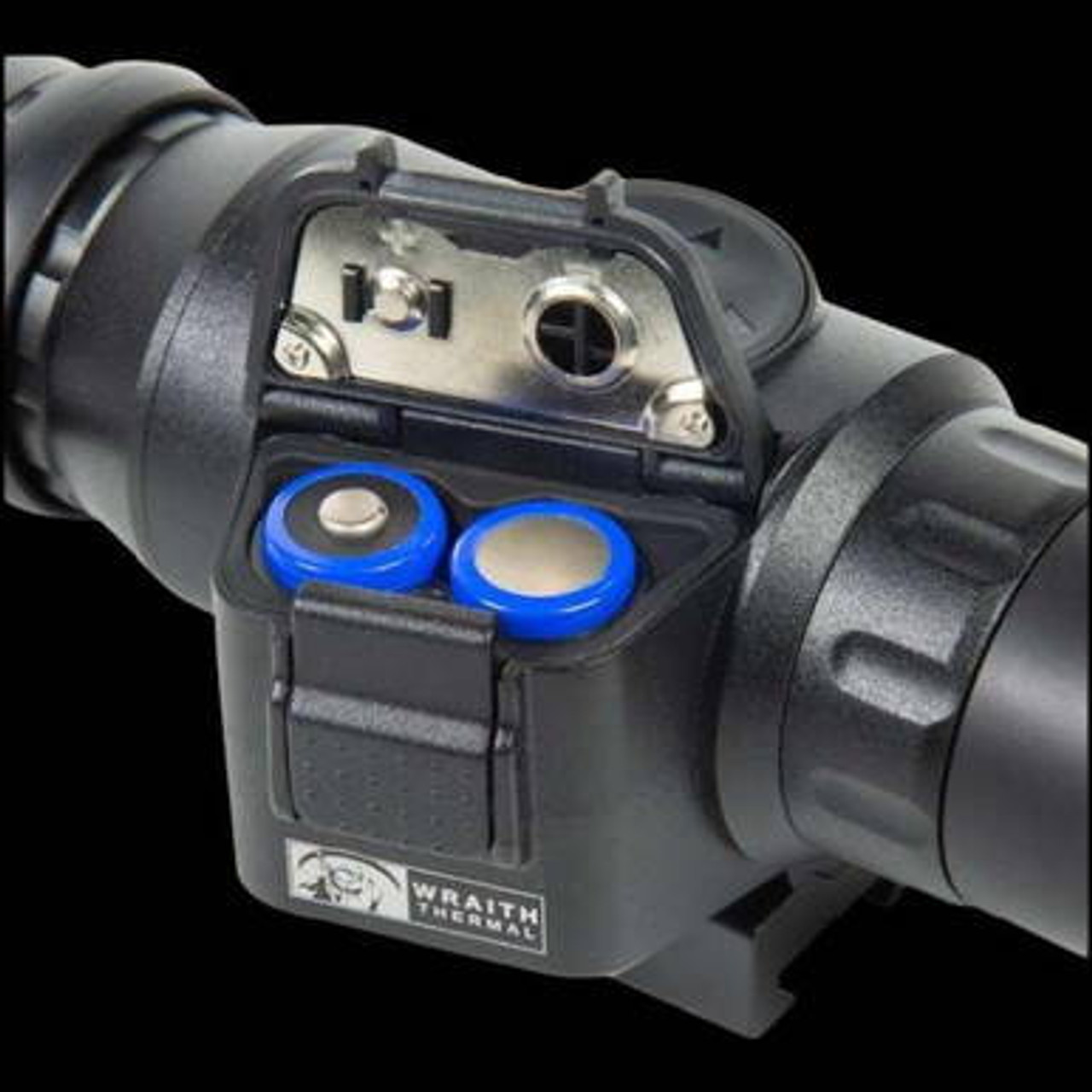

- CR123A Batteries x2
- USB Cable
Features
- 384x288 Thermal Resolution
- Lightweight and Compact
- OLED Display
- 5 Color Palettes
- 9 Reticle Colors
- 10 Reticles
- 5 Weapon Profiles
- Built-in Recording w/ Sound
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
| Type of Sensor | Thermal sensor |
| Caliber Rating | .308 Winchester |
| Sensor Resolution, Pixels | 384x288 |
| Display Type | OLED |
| Display Resolution | 1024x768 |
| Built-In Video Recorder Availability | Yes |
| Maximum Memory Card Supported, GB | 256 |
| Pixel Pitch (µm) | 17 |
| Spectral Range (μm) | 8-14 |
| Magnification | 2x optical |
| Lens Diameter, mm | 35 |
| Digital Zoom | 1-8x |
| Field of View (degrees) | 13 |
| Detection Range (yards/meters) | 1400/1280 |
| Battery Type | 2x CR123A |
| Battery Life | 3.5Hrs Video Mode/ 4.4Hrs Preview Mode |
| External Power Supply | 5V via USB |
| Body Material | Aluminum |

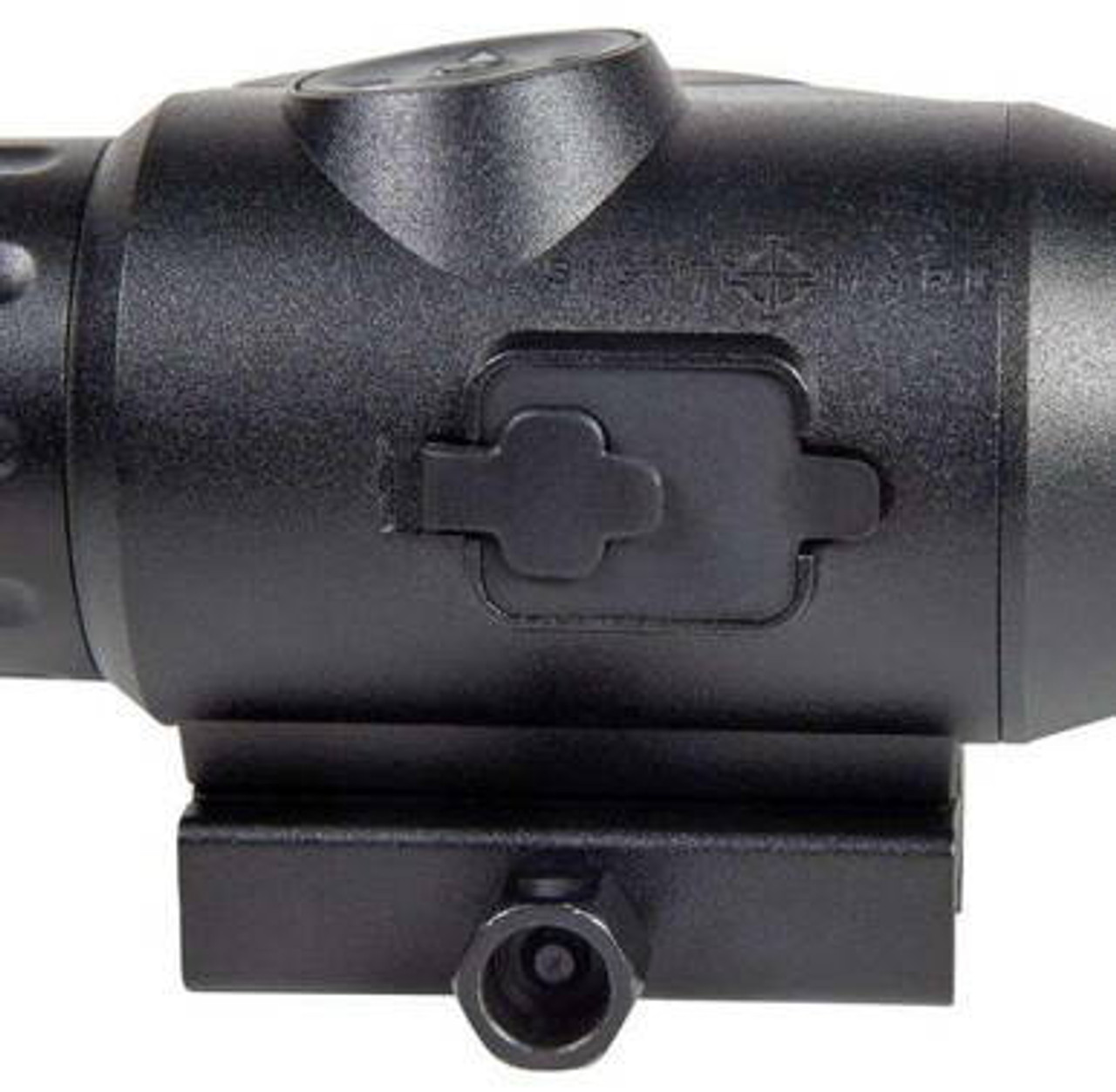

| Accessory Rail Mount | Picatinny |
| Length, in/mm (with flip up caps) | 6.653/169 |
| Width, in/mm | 3.031/77 |
| Height, in/mm | 2.913/74 |
| Weight, oz | 19.3 oz |
| Operating Temperature Range | -20C - 50C |
| Color Modes | White Hot, Black Hot, Green Hot, Rainbow, Magenta |
Wraith Mini 2-16x35 Thermal scope
Specs
- Brand
- Sightmark
- SKU:
- SM17001
Frequently Asked Questions
Is the Sightmark Wraith Mini a thermal scope?
This one is. The Wraith Mini 2-16x35 uses a 384×288 thermal sensor that picks up heat, so it works in total darkness and light fog without any light source. Other Wraith models, like the Wraith HD and Wraith 4K, are digital night vision scopes that rely on IR light.
What yardage should you zero a thermal scope at?
Zero at the distance you shoot most, often 50 to 100 yards for hogs and coyotes at night. Use a heated target, or tape a hand warmer behind paper, so the impact area shows on a thermal screen. The Wraith Mini Thermal stores five profiles, so each rifle keeps its own zero.
Is the Sightmark Wraith Mini Thermal any good?
It's a good fit for hunters who want a light, simple thermal scope for close and medium range. At 19.3 oz with a 1400-yard detection range, built-in recording and five rifle profiles, it covers most farm and field hog hunting. For more detail at long range, look at a 640×512 sensor.
Why can't my Wraith Mini Thermal see at night?
Thermal doesn't need light, so a poor picture at night usually has another cause. Check that the lens cover is open, the focus is set for the distance, and the CR123A cells have charge, since cold drains them fast. Switching between White Hot and Black Hot can also help on low-contrast nights.
Other Details
