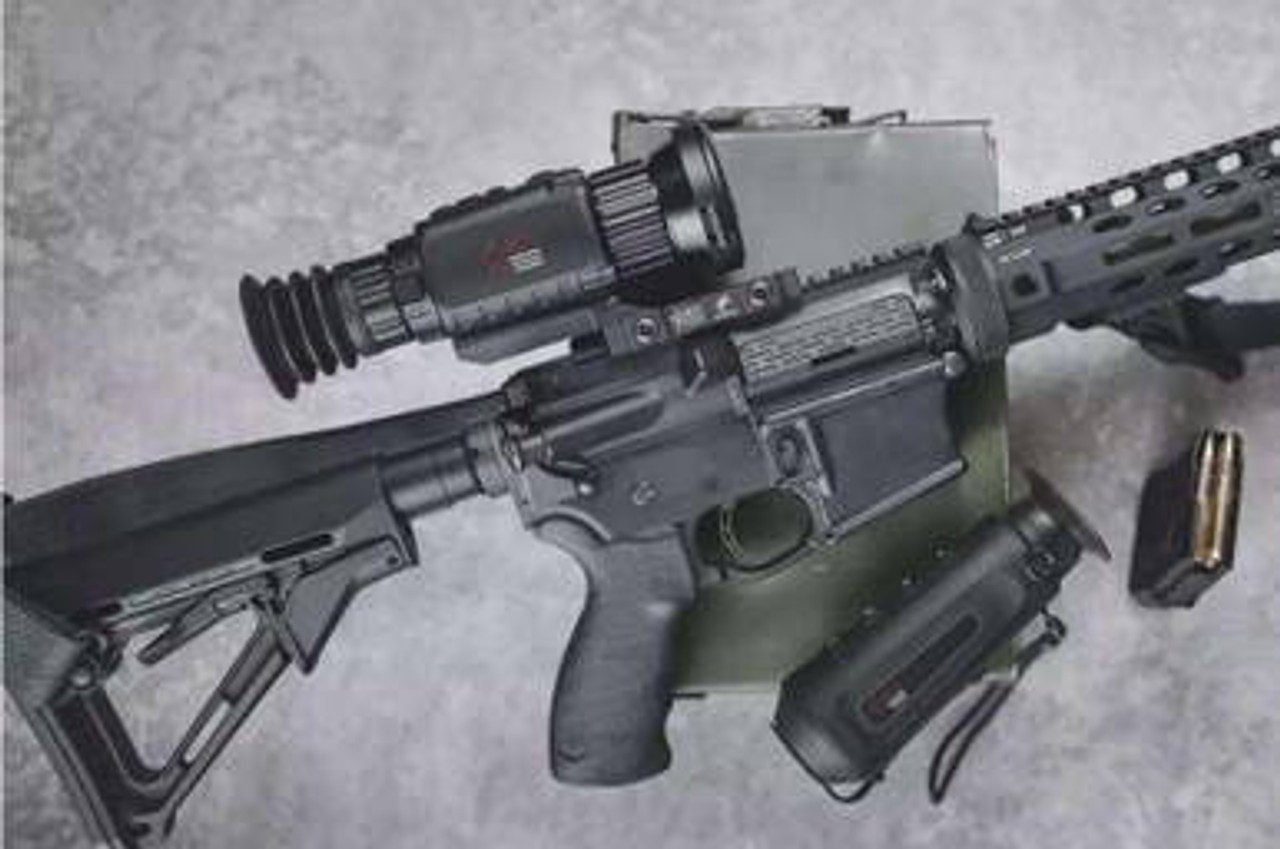

AGM Rattler TS50 640

DESCRIPTION AND FEATURES:

AGM Rattler TS50 640 is the compact thermal imaging scope developed for 24 hours operation under any weather and environmental conditions. This rifle scope with 50 mm Germanium lens and 20x digital zoom is perfect unit for long range shooting. Thermal image riflescope has 640×512, 12μm thermal detector with 50 Hz refresh rate and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular.  The scope is mainly applied to scenarios such as patrolling, hunting, etc. Powered with two CR123 batteries the AGM Rattler TS50-640 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available. Warning :  California's Proposition 65 640×512 thermal resolution 12 μm, 35 mK NETD high sensitivity detector Fast 50Hz imaging 1024×768 resolution, 0.39-inch OLED display 2.5x optical magnification 1x, 2x, 4x, 8x digital zoom Digital image processing technology Video recording and snapshot, built-in EMMC (16 GB) Various reticle types and colors Stadiametric rangefinder Adjustable color palettes Wi-Fi data transmission Standby mode Waterproof, shockproof Up to 4.5 hours continuous working External power supply capability Limited 3-year warranty non-transferable

CHARACTERISTICS:

Detector type: 12μm, Uncooled, 50 Hz Refresh rate: 50 Hz Resolution: 640x512

FOV: 12.5° × 10.0°

PACKAGE INCLUDES:

Lens Tissue

Operators Manual

Packing Box

USB Cable

Soft Carrying Case

DOWNLOADS:

Datasheet

EXPORT RESTRICTIONS:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

SPECIFICATIONS:

Palettes - Black Hot, White Hot, Red Hot, Fusion

Reticle - 5 types, 4 colors, on/off

Drop Test Height - 1.5m (4.9 feet)

Boresight Adjustment - Digital Controlled

Boresight Increment - 0.15 mil / 0.52 MOA

Distance Measurement - Yes (Stadiametric Rangefinder)

Scene Mode - Jungle, Recognition

Picture In Picture Mode (PIP) - Yes (2× Zoom)

Video Recording - Yes

Defective Pixels Correction (DPC) - Yes

Uniformity Correction - Auto, Manual, External Correction

Observation Distance - 2,500 m

Detector type - 12μm, Uncooled, 50 Hz

Standby Mode - Yes

Resolution - 640 × 512

Lens system - 50 mm; F/1.0

Optical magnification - 2.5x

Field of view (H × X) - 8.8° × 7.0°

Digital zoom - 1×, 2×, 4×, 8×

Eye relief - 45 mm

Display - 0.39-inch, OLED, 1024×768, 50 Hz

Storage - Built-in EMMC (16 GB)

Battery Type - Two CR123 (3V) Lithium or two RCR123 (up to 4.2V)

Rechargeable Batteries CVBS Output - Yes (via USB)

Battery Life (Operating) - Up to 4.5 hr

External power supply - 5 VDC/2 A, USB Type-C interface

Operating Temperature Range  -20°C to +55°C (-4°F to +131°F)

Degree of Protection - IP67

Weight - 480 g ( 1.06 lb)

Overall Dimensions -187 × 62 × 59 mm (7.4 × 2.5 × 2.3 in)
