Product Description
DESCRIPTION AND FEATURES

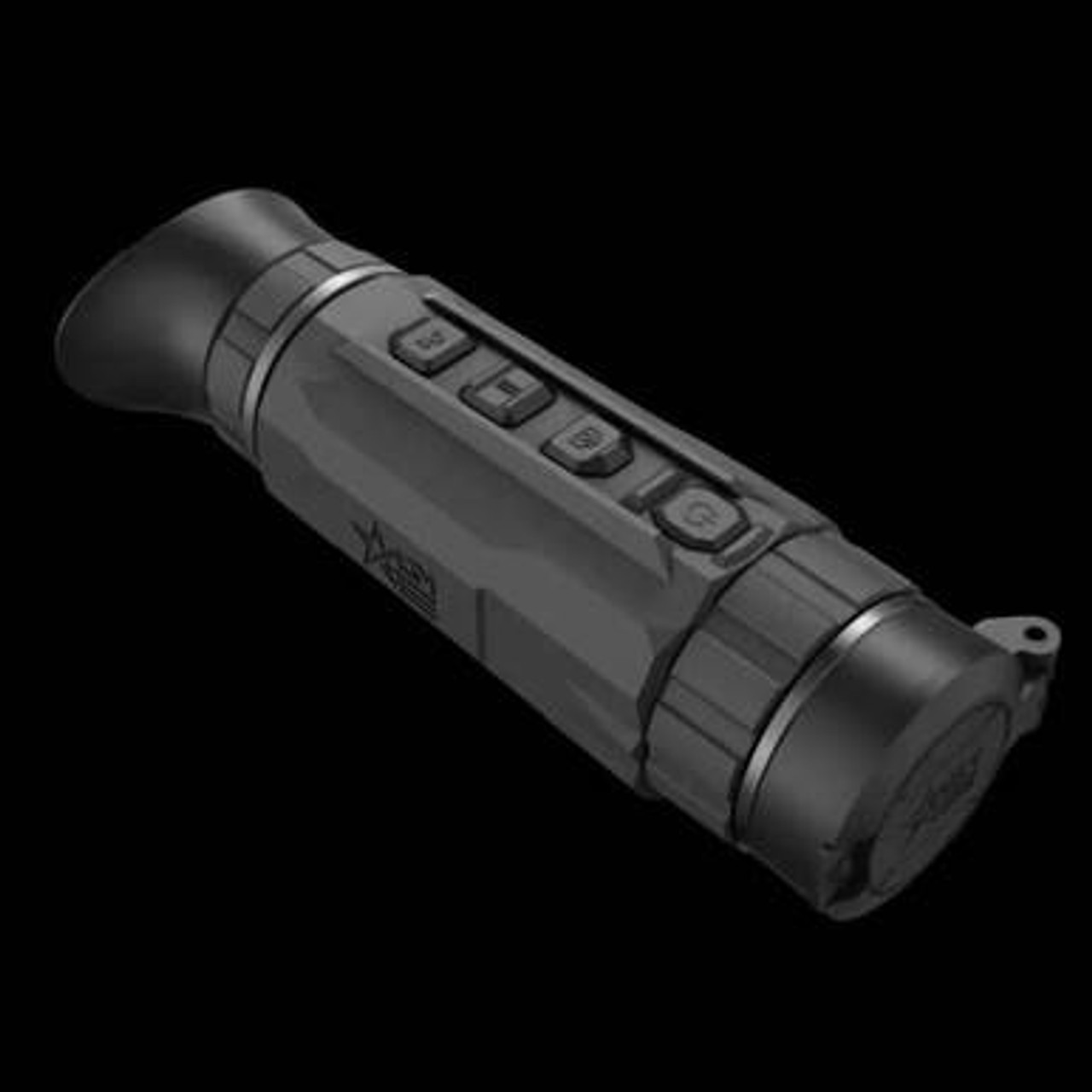

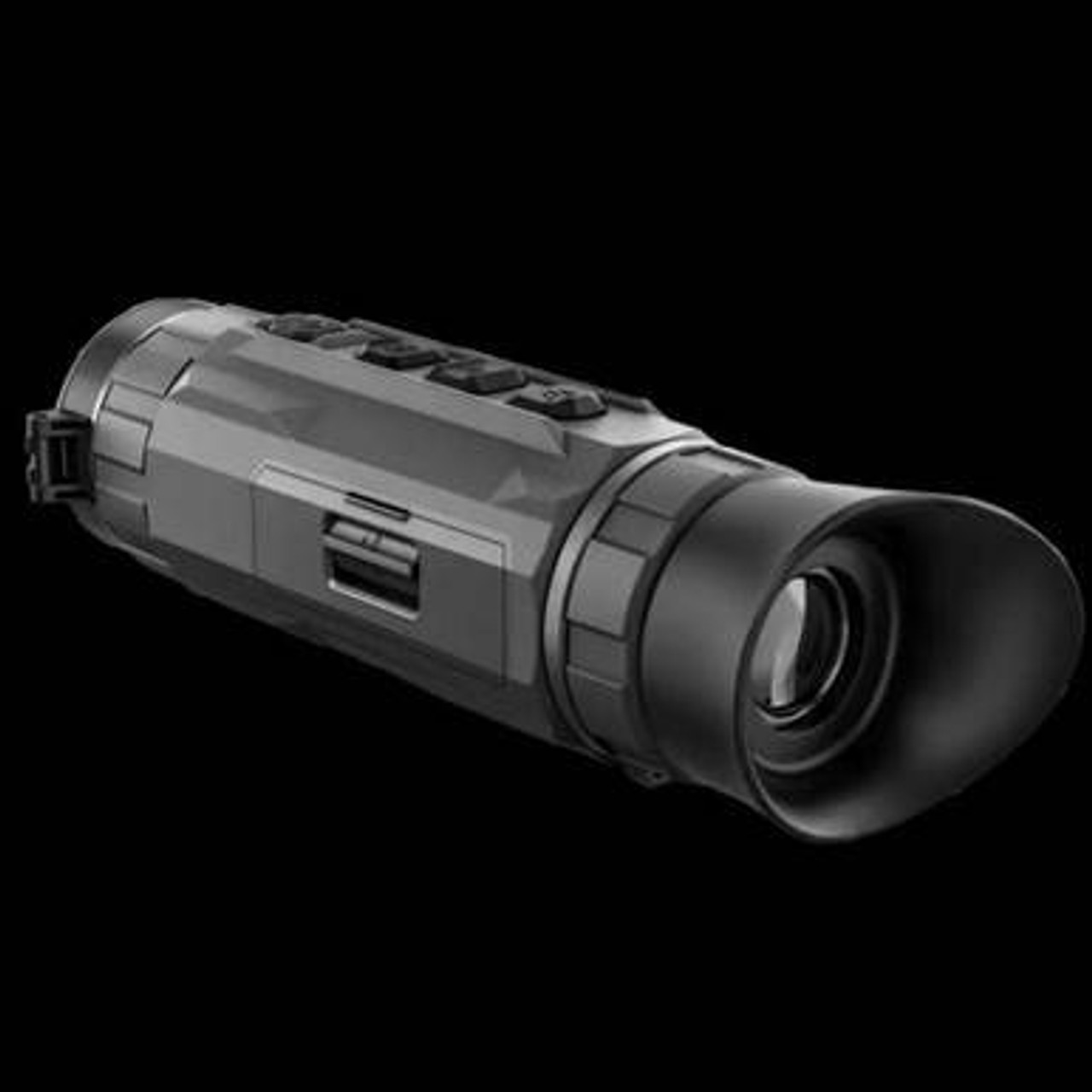

The Sidewinder™ is our premium handheld observational thermal monocular series. All models come equipped with either a 384×288 or 640×512 twelve micron infrared detector and a 1024×768 OLED display, for improved color rendering. The Sidewinder thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20
millikelvin across the entire product family. Other improvements over the Taipan monoculars include a more robust body/housing and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions.
The Sidewinders built-in 64 GB memory also sits at the top of its class on the market, with advanced software supporting both video recording and image capturing. The primary uses for these thermal monoculars include, but are not limited to: hunting, law enforcement, search-and-rescue, personal security,
conservation, anti-poaching, camping, hiking and different marine applications.
- 12μm, 384×288 resolution detector
- Highest thermal sensitivity (NETD <20mK)
- Advanced image processing (Digital Detail Enhancement,
- digital Noise Reduction and NLM algorithm)
- 50 Hz image frame rate
- 1024×768 resolution OLED display
- Built-in memory supports video/audio recording and
- snapshot capturing
- 64 GB memory module
- Wi-Fi hotspot
- 1×, 2×, 4× and 8× digital zoom
- Replaceable and rechargeable Li-Ion battery
- Up to 7 hours continuous running
- External power supply capability
- Waterproof
- 5-Year warranty
Detector type: Vanadium Oxide Uncooled Focal Plane Array
Refresh rate: 50 Hz
Resolution: 384 × 288
FOV: 10.5° × 7.9°
- Battery Charger
- USB Cable
- Power Adapter (US and EU plugs included)
- 18650 Rechargeable Battery
- Lens Cloth
- Wrist Strap
- Carrying Case
- User Manual
- Protective Bag
SPECIFICATIONS
Palettes - Black Hot, White Hot, Red Hot, Fusion
Dimensions - 188 × 58 × 65 mm (7.4 × 2.3 × 2.6 in)
Interface - USB Type-C
Pixel Interval - 12 μm
Detector type - Vanadium Oxide Uncooled Focal Plane Array
Response Waveband - 8μm to 14μm
FFC (Flat Field Correction) - Auto, Manual, External Correction
Highest Temperature Spot Tracking - Yes
Standby Mode - Yes
Refresh rate - 50 Hz
Aperture - F1.0
Detection Range (6' object) - 1250 m
NETD - ≤ 20 mk (@25°C), F#=1.0
Optical magnification - 2× - 16×
Lens (focal length) - 25 mm
Power - 5 VDC/2 A, 1.75 W
Field of view (H × X) - 10.5° × 7.9°
Digital zoom - 1×, 2×, 4×, 8×
Diopter adjustment range - -5 to +3 dpt
Monitor - 1024×768, OLED
Storage - Built-in memory (64 GB)
Record Video - Yes (on-board)
Capture Snapshot - Yes
Battery Type - One 18650 Replaceable rechargeable Lithium battery
Wi-Fi - Yes
Battery Operating Time - Up to 7 hours
Weight - 500 g (1.1 lb)
Working Temperature/ Humidity - -30°C to 55°C (-22°F to 131°F)
Protection Level - IP67
