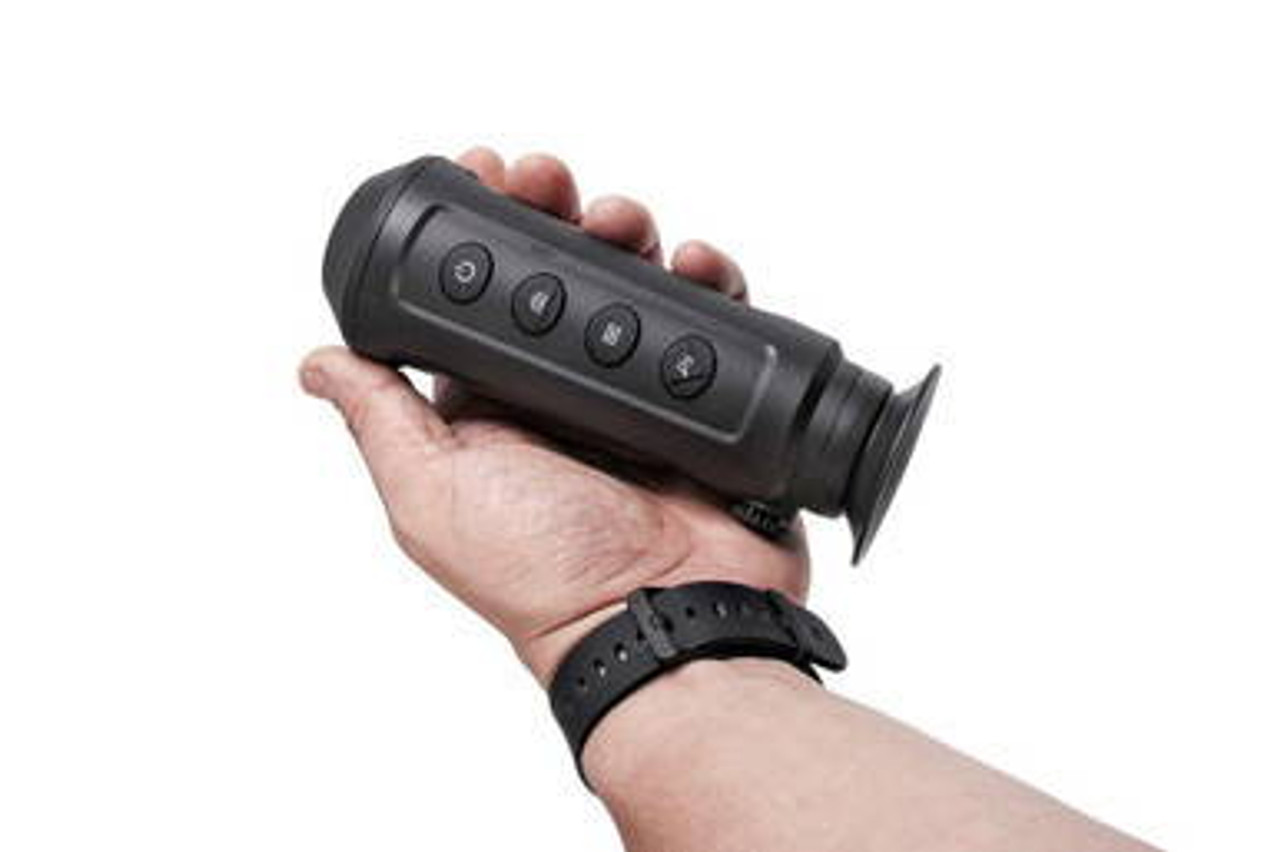

AGM Taipan TM15-384 Thermal Imaging Monocular 12 Micron 384x288 (50 Hz)
Watch the video Specs Overview
DNO PRICE:
$1,359.00
For a Limited Time
$1,295.00
Free shipping on orders over $399*- No sales tax outside Illinois
No card fees and 2% off when you pay by e-check
Hunters on the phone to help you choose
Goes with this AGM
Overview
DESCRIPTION AND FEATURES
The Taipan handheld observational thermal monocular is equipped with a 384×288 infrared detector and a 1280×960 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.
Warning: California's Proposition 65
FUNCTIONS:
Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
- 384×288 resolution, 12 μm, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR
- 1280 × 960 resolution 0.4-inch LCOS display
- Built-in rechargeable Lithium battery
- More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
- Wi-Fi hotspot
- Type-C interface
- Limited 3-year warranty
CHARACTERISTICS:
Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Refresh rate: Sensor / OLED 50 Hz
Resolution: 384x288
FOV: 17.5° × 13.1°
DOWNLOADS
Data Sheet
User Manual
SPECIFICATIONS
Interface - USB Type-C
Pixel Interval - 12 μm
Multi Language menu - Yes
Drop Test Height - 1.5 m (4.9 feet)
Detector type - Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband - 8μm to 14μm
FFC (Flat Field Correction) - Auto, Manual, External Correction
Highest Temperature Spot Tracking - Yes
Standby Mode - Yes
Refresh rate - 50 Hz
Aperture - F1.0
Resolution - 384×288
Detection Range - 708 m
NETD - Less than 35 mk (@25°C), F#=1.0
Lens (focal length) - 15 mm
Power - 5 VDC/2 A, 1.5 W
Field of view (H × X) - 17.5° × 13.1°
Digital zoom - 2×, 4×, 8×
Monitor - 1280×960, 0.4 inch, LCOS
Imaging palettes - Black Hot, White Hot, Red Hot, Fusion
Storage - Built-in memory module (8 GB)
Record Video - On-board video recording
Capture Snapshot - Yes
Battery Type - Built-in rechargeable Lithium battery
Wi-Fi - Yes
CVBS Output - Yes (via USB)
Battery Operating Time - More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display - Yes
Weight - 290 g (0.64 lb)
Working Temperature/ Humidity -20°C to 55°C (-4°F to 131°F)
Overall Dimensions - 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)
Protection Level - IP67
Specs
- Brand
- AGM
- SKU:
- 3092451012TA51
