    InfiRay Outdoor

    MSRP: $3,299.99
    DNO PRICE: $2,999.00
    For a Limited Time $2,150.00
    (You save $1,149.99 )
    SKU:
    IRAY-RL25

    Currently Out of Stock - Please Call for Availability 309-781-8421

    Product Description

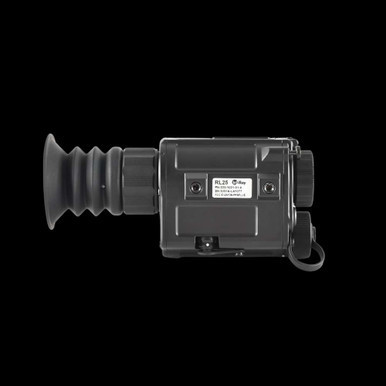

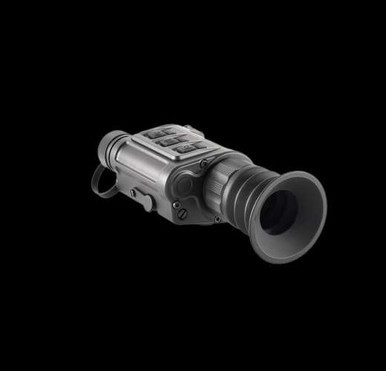

    RICO MICRO 384 12 Micron Multi-Purpose Monocular


    The RICO MICRO Series is an advanced electro-optic device miniaturized to deliver remarkably versatile functionality: Handheld, helmet mount, and weapon mount. Weighing less than a pound, the MICRO will fit in the palm of your hand and can be used with standard dovetail helmet mounts or rifle-mounted as a stand-alone weapon sight. InfiRay Outdoor is blazing a new trail with features never-before-seen in a helmet-mounted thermal, such as onboard recording, onboard video play-back, and a high definition AMOLED display. The RL25 also features InfiRay’s latest high-performance 384×288, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.

    • Optics

      Optical Magnification - 2X
      Digital Magnification - 4X
      Objective Lens Material - Germanium
      Horizontal Angular Field of View - 10.5°
      Vertical Angular Field of View - 7.9°
      Detection Range - 1375 Yards
      Objective Focal Length - 25mm f/1.0
      Objective Diameter - 25mm

      Objective F# - 1.0

      Focusing Mechanism - Manual Focus

      Eye Relief - 35mm

      Display Type - AMOLED

      Diopter Range -4 - +4

      Display Resolution - 1024×768

    • Features & Performance

      Reticle - 7
      Connector Type  - "Data Cable with USB, BNC, and 7-Pin Connectors"
      Color Palettes - White Hot, Black Hot, Red Hot, Color
      User-Updatable Firmware - Yes
      Mobile App - Yes
      Storage Capacity - 64gb
      Connector Output - Analog
      Picture-in-Picture - No
      One-Shot Zero - No
      Stand-by Mode - Yes
      Rangefinder - No
      Run Time - 4 Hours
      Power Source - 18650 Rechargeable
      Wifi - Yes
      Onboard Recording - Video and Image
      Image Capture - Yes
      Video Output - Analog RS-170/NTSC
      Startup Time - <10 Seconds, Instant from Standby
      External Power Source - Yes, 7-Pin to USB 5V
      Warranty - 5 Years


    • Environmental Specifications

      Operating Temperature Range -4°F to 122°F
      Recoil Rating - 1000 g/s² (300 Win./7mm Mag)
      Ingress Protection - IP67

    • Physical

      Mounting Interface - MUM rail/Picatinny STD-1913 rail, PICTAIL optional
      Housing Material - Aluminum
      Length - 4.52 in
      Height - 2.55 in
      Width - 1.88 in
      Weight - 12.7 oz

    • Sensor Specifications

      Device Technology - Thermal Imaging
      Sensor Type - InfiRay MICRO II
      Sensor Resolution - 384×288
      Non-Uniformity Correction (NUC) - Manual, Automatic, Semi-Automatic
      Spectral Response - 8-12 Microns
      Sensor Frame Rate - 50hz
      Sensor Pixel Size - 12μm
      Thermal Sensitivity - <50mk

    Other Details

    5-Year Warranty with a 5-Day Repair Guarantee At iRayUSA we are first and foremost hunters and users of our products and we understand that failure is not an option. One of our primary objectives at iRayUSA is to greatly improve the customer service level for the end user. We plan on accomplishing this through offering our industry-first 1-week repair guarantee, and by only working with highly qualified Authorized Dealers. During the published warranty period, iRayUSA will repair or replace, at its discretion, any optic that becomes defective from normal use. If we cannot repair an optic in less than one week, we will offer a replacement in like or better condition. We know you’ve never seen this from a thermal manufacturer, neither have we, and that’s one of the reasons we started iRayUSA. Our warranty follows the product, and is not tied to the original owner. The warranty period is tied to the date of sale to the dealer or end user registration. This warranty only covers normal use and does not cover cosmetic damage, normal wear, intentional damage, theft, loss, any act of God or a condition caused by use other than intended. Any product that is modified, opened or tampered with will void any warranty coverage. Any serial number damage or alteration on the product will be considered modification. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. One week starts from the time of receipt of product at iRayUSA. Customers must ship the product to iRayUSA, iRayUSA will return the product at no cost. No returns will be accepted without an RMA. iRayUSA is not liable for any damages or loss incurred when shipping to iRayUSA
