MATE 640 50mm Clip-On Thermal Weapon Sight

InfiRay Outdoor |SKU: IRAY-MAH50

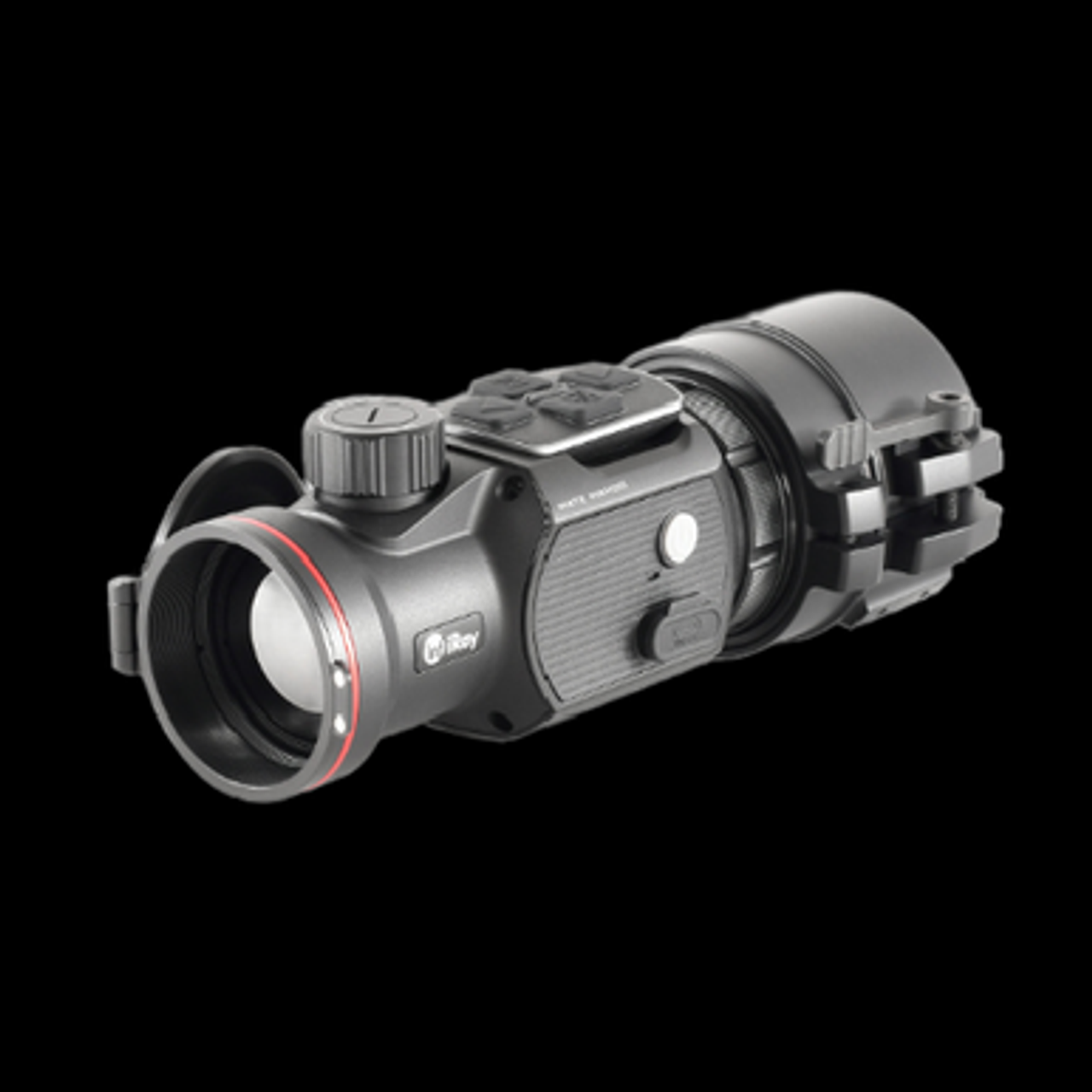

MATE 640 50mm Clip-On Thermal Weapon Sight

Specs Overview

DNO PRICE: $5,999.00
For a Limited Time $2,999.00

Currently Out of Stock - Please Call for Availability 309-781-8421

Questions? Call 309-781-8421Real people who use these optics. Open every day, 8am - 9pm.
  • Free shipping on orders over $399*
  • No sales tax outside Illinois
  • No card fees and 2% off when you pay by e-check
  • Hunters on the phone to help you choose

Goes with this InfiRay Outdoor

Overview

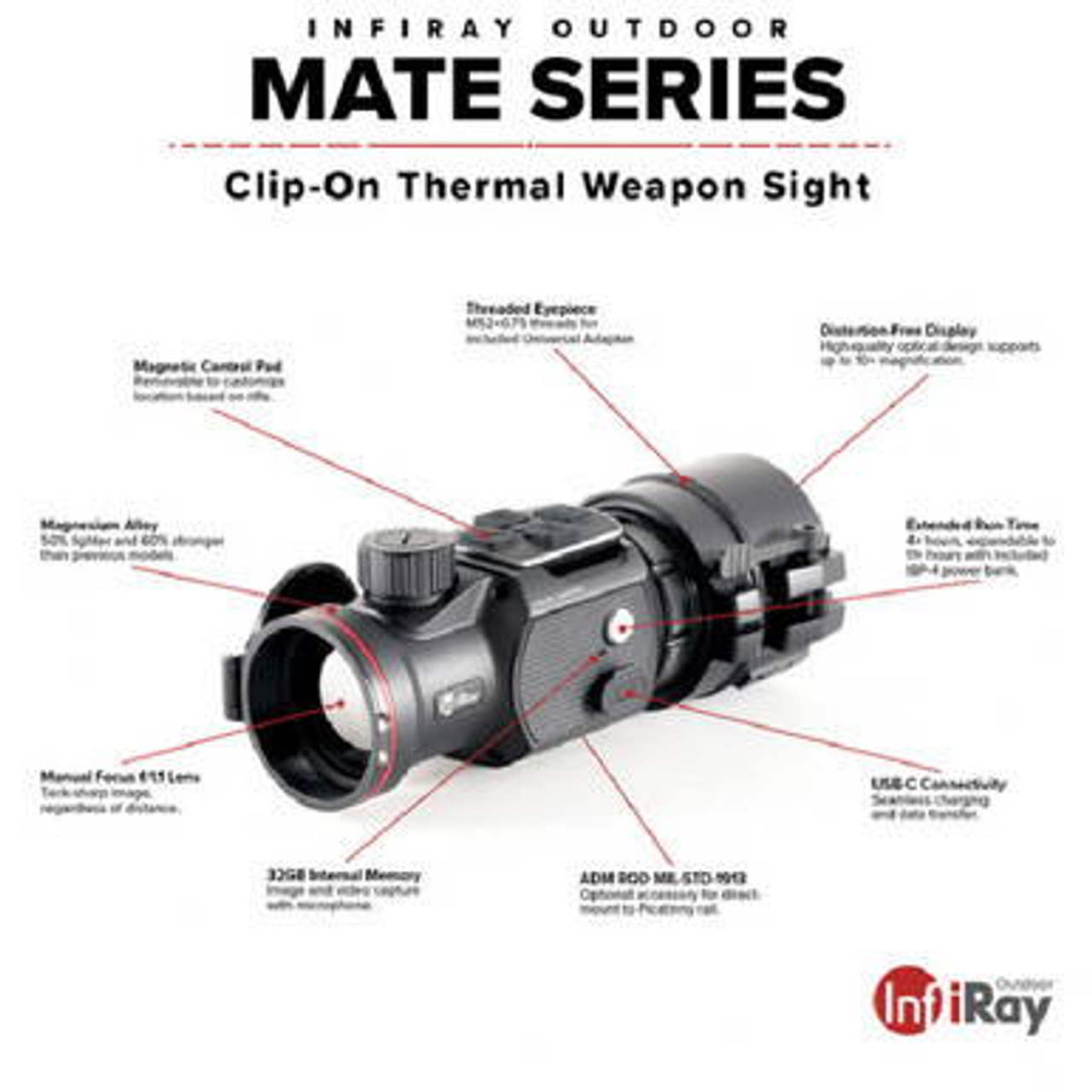

The InfiRay Outdoor MATE Series thermal clip-on brings an all-new level of versatility to your existingday scope. With a high-performance 12 μm detector, magnesium alloy housing, distortion-free display, and removable control pad, the MATE series ensures a precise and repeatable transition when dayturns to night. The MATE can be mounted directly to the objective of your day scope or be attached via MIL-STD-1913 Picatinny rail.

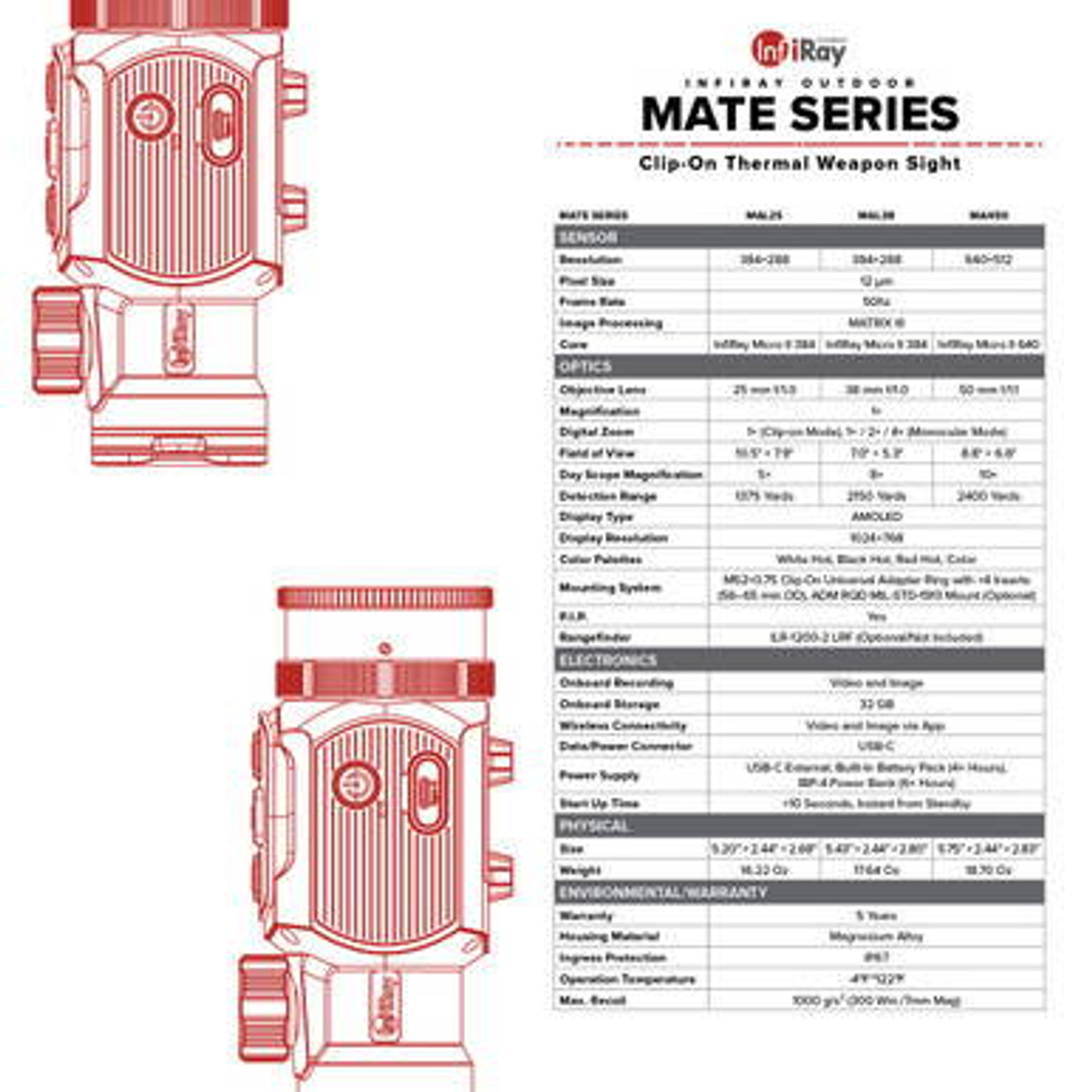

  • Optics

    Objective Focal Length - 50mm
    Detection Range - 2400 Yards
    Objective Lens Material - Germanium
    Optical Magnification - 1X
    Digital Magnification - 8X, stepped
    Focusing Mechanism - Manual Focus
    Display Type - AMOLED
    Vertical Angular Field of View - 6.6°
    Horizontal Angular Field of View - 8.8°
    Objective F# - 1.1
    Objective Diameter - 50mm
    Display Resolution - 1024×768

  • Features & Performance

    Wifi - Yes
    Image Capture - Yes
    Mobile App - Yes
    Connector Output - Power/Data
    Connector Type - USB-C
    Video Output - Analog RS-170/NTSC
    Onboard Recording - Yes
    Warranty - 5 Years
    Startup Time - Under 10 Seconds
    Rangefinder - ILR-1200-2 LRF (Optional/Not Included)
    Color Palettes - White Hot, Black Hot, Red Hot, Color
    Storage Capacity -32GB
    User-Updatable Firmware - Yes
    Power Source - Built-In Battery Pack (4+ Hours),IBP-4 Power Bank (6+ Hours)
    Stand-by Mode - Yes
    External Power Source - USB-C

  • Environmental Specifications

    Recoil Rating - 1000 g/s² (300 Win./7mm Mag)
    Operating Temperature Range - -4°F~122°F
    Ingress Protection - IP67

  • Physical

    Mounting Interface - Picatinny STD-1913 rail
    Housing Material - Magnesium Alloy
    Weight - 18.70
    Height - 2.83
    Width - 2.44
    Length - 5.75

  • Sensor Specifications

    Sensor Type - InfiRay MICRO II
    Sensor Pixel Size - 12μm
    Thermal Sensitivity - <25mk
    Non-Uniformity Correction (NUC) - Manual, Automatic, Semi-Automatic
    Spectral Response - 8-12 Microns
    Sensor Frame Rate - 50hz
    Device Technology - Thermal Imaging
    Sensor Resolution - 640×512

Specs

Brand
InfiRay Outdoor
SKU:
IRAY-MAH50
UPC:
86

Other Details

5-Year Warranty with a 5-Day Repair Guarantee At iRayUSA we are first and foremost hunters and users of our products and we understand that failure is not an option. One of our primary objectives at iRayUSA is to greatly improve the customer service level for the end user. We plan on accomplishing this through offering our industry-first 1-week repair guarantee, and by only working with highly qualified Authorized Dealers. During the published warranty period, iRayUSA will repair or replace, at its discretion, any optic that becomes defective from normal use. If we cannot repair an optic in less than one week, we will offer a replacement in like or better condition. We know you’ve never seen this from a thermal manufacturer, neither have we, and that’s one of the reasons we started iRayUSA. Our warranty follows the product, and is not tied to the original owner. The warranty period is tied to the date of sale to the dealer or end user registration. This warranty only covers normal use and does not cover cosmetic damage, normal wear, intentional damage, theft, loss, any act of God or a condition caused by use other than intended. Any product that is modified, opened or tampered with will void any warranty coverage. Any serial number damage or alteration on the product will be considered modification. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. One week starts from the time of receipt of product at iRayUSA. Customers must ship the product to iRayUSA, iRayUSA will return the product at no cost. No returns will be accepted without an RMA. iRayUSA is not liable for any damages or loss incurred when shipping to iRayUSA Please note: Our products are built to be rugged and durable, but it is also important to remember that thermal sensors (microbolometers) are precise scientific instruments. Sensor damage caused by direct exposure to the sun or other intense heat/light sources is not protected under normal use. InfiRay Outdoor is known to have the highest quality sensors in the industry, distinguishing between extremely small differences in thermal energy; overwhelming a finely-tuned instrument with extreme amounts of thermal energy may cause damage - use caution when operating your thermal unit in daylight.
