Product Description

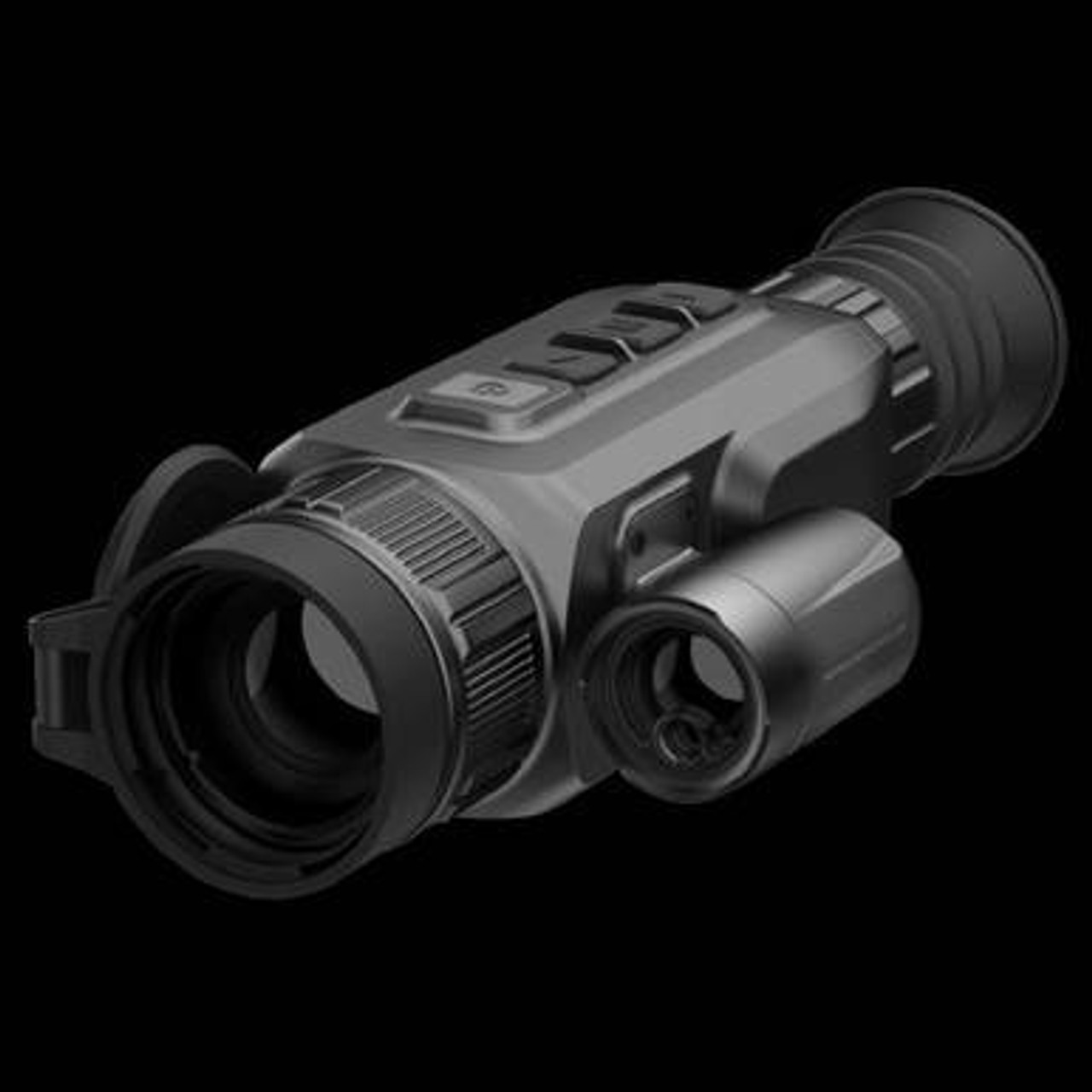

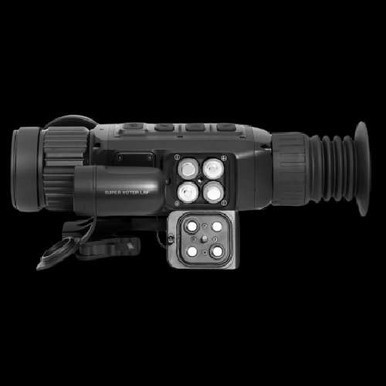

SUPER HOGSTER LRF 3.5-14.0x35mm Thermal Sight (BE43545T / BE43545L)
PRODUCT OVERVIEW
The all-new SUPER HOGSTER LRF™ 3.5-14.0x35mm Thermal Weapon Sight feature latest 12uµ LWIR spectral VOx
384x288 core with outstanding thermal sensitivity NETD ≤35mk, newly designed rigid Aluminum-Magnesium Alloy body and available in a choice of two highly reliable Quick-Detach mounts manufactured by LaRue Tactical® (BE43545L) or Bering Optics® (BE43545T).SUPER HOGSTER LRF™ 3.5–14.0x35mm comes with unique features. A notable one is the ability to power the scope using various batteries: rechargeable 1.5V Li-ion, 1.2V NiCad, 1.2V NiMH, or widely available inexpensive 1.5V AA Alkaline batteries. An optional external 5VDC power supply can be connected via a specially designed shock-, and dust-proof magnetic port and a 1-foot quick-release cable, which is included. A wide selection of power sources gives the user flexibility and peace of mind when the scope is ready for the next hunt. The industry's newest BDC Reticle #9 with a manually adjustable hashtags feature and the Reticle Customization App, is available to download to your mobile device. The built-in 32GB memory to record videos/photos (5 hours of video) along with the sound recording capability allows capturing superior quality footage. The compact and energy-efficient precision laser rangefinder operates in a user-friendly Constant Scan Mode and measures the ranges up to 1000 yards with an accuracy of 1 yard.
FEATURES
• Superior predator control at medium- and long-range distances up to 1000 yards
• Powered with rechargeable 1.5V Li-ion, 1.2V NiCad, 1.2V NiMH or 1.5V AA Alkaline batteries
• Laser Rangefinder to measure distances up to 1000 yards with exceptional accuracy ±1 yard
• 9 reticle patterns, including 4 BDC-type reticles
• Customized Reticle #9 with manually adjustable hashtags
• Reticle Customization App
• Excellent performer in high humidity
• Able to withstand strong recoil up to 6000 J.
• Picture-in-Picture function- 2X multiplied image on the top of the display
• Automatic shutter based thermal 12uμ VOx 384x488 core with Auto- or Manual calibration
• Switchable image polarity: White Hot / Black Hot / Red Hot / Rainbow / Highlight
• 4 color options for each reticle pattern
• Precise W/E adjustment increments is 0.67” at 3.5x (native magnification)
• Manual control of image sharpness, screen brightness, and image contrast
• Manual control image background balance of white (Cool or Warm) background
• Ability to save 4 profiles of zeroing calibration data
• A precise lens-focusing mechanism
• 5V DC external power supply option via the Magnetic port
• Blind Pixel repair tool option
• Standby mode
• Digital Compass
• Digital zoom rapid movement mode
• Digital zoom with 0.5x magnification movement mode
• Inclinometer
• Battery status indicator
• Nitrogen purged
• Video out
• 32Gb internal memory
• Built-in internal recording function in .mp4 (video) and .jpeg (image) formats
• Built-in microphone
• Timer
• Freeze Function for one shot zero
• Build-in magnetic port for video output and 5V DC external power connection
• Wi-Fi capable- allows media recording to the mobile device (iOS or Android App is required)
• Quick-Detach (QD) Tactical lockable Picatinny mount (BE43545T) with guaranteed zero retention
• LaRue Tactical® Quick-Detach (QD) lockable mount (BE43545L) with guaranteed zero retention
• 4-year manufacturer’s transferable warranty on parts and labor
APPS app for Apple or for Android.
The HOGINATOR application is designed to configure the ballistic reticle #9 of the Super Hogster LRF at preselected
ranges. This setup ensures that the user has the most accurate reticle based on the rifle and ammo combination to quickly
engage the target.
SPECIFICATIONS
Product Modification SUPER HOGSTER LRF
Product SKU# BE43545T / BE43545L
Optical Magnification, x 3.5x
Digital Multiplication, X 2X, 3X, 4X
Objective lens system 35mmF/1.0
Angular FOV at 3.0x (horizontal x vertical), degree 7.5° x 6.0°
Eye relief, mm 46
Focus range, yard 1 to infinity
Diopter Adjustment, D -5: +5
Reticle W/E increment value per pxl at a distance of 100m
(110yds) 0.67” at 3.5x magnification
Core resolution, pxl 384x288
Pixel pitch, µm 12
Image refresh rate, Hz 50
Thermal Sensitivity (NETD), mK ≤ 35
Display type and resolution, pxl OLED 1024x768
Start-up time, typical, sec. 20
Object type and size, approx., ft² / m² Hog 7.5 / 0.7 Coyote 5.5 / 0.5
Detection, approx., yds / m 990 /900 880 /800
Recognition, approx., yds / m 660 /600 550 /500
Dimensions with QR mount, approx., in / mm 8.7 x 4.05 x 3.31 / 220 x 103 x 84
Weight w/out batteries, approx., oz/g 26 / 745
Power supply 1.5V rechargeable AA (four) or 1.2V rechargeable AA (four) or
1.5V non-rechargeable AA (four) or 5V DC Magnet port
Estimated battery life without LRF (at 72°F) *, hour
1.5V Li-ion 3000mAh - 6.0
1.2V NiMH 2800mAh - 5.5
1.2V NiCad 2300mAh - 1.5
1.5V AA Alkaline - 3.0
Operating temperature, typical, °F/°С -14° to +122° / -25° to +50°
Water intrusion IP67
Humidity, % up to 98%
NOTE: *Battery life may vary depending on battery capacity, ambient temperature, and the number of product
features activated (Wi-Fi, video recording, brightness settings).
KIT INCLUDES
• SUPER HOGSTER LRF™ 3.5-44.0x35mm, 12uµ VOx 384x288 Thermal Weapon Sight
• Quick-Detach (QD) Picatinny mount
• Front lens protective cap
• Rubber eye guard
• 4pcs of 1.5V AA batteries
• Magnetic cable
• 2pcs Self-Heated target
• Carrying Case with a shoulder strap
• Lens Cleaning Cloth
• Instruction Manual
OPTIONAL ACCESSORIES
• 4pcs rechargeable 1.5V Li-ion 3000mAh batteries
• Charger for 1.5V Li-ion rechargeable batteries
