Goes with this AGM
Overview

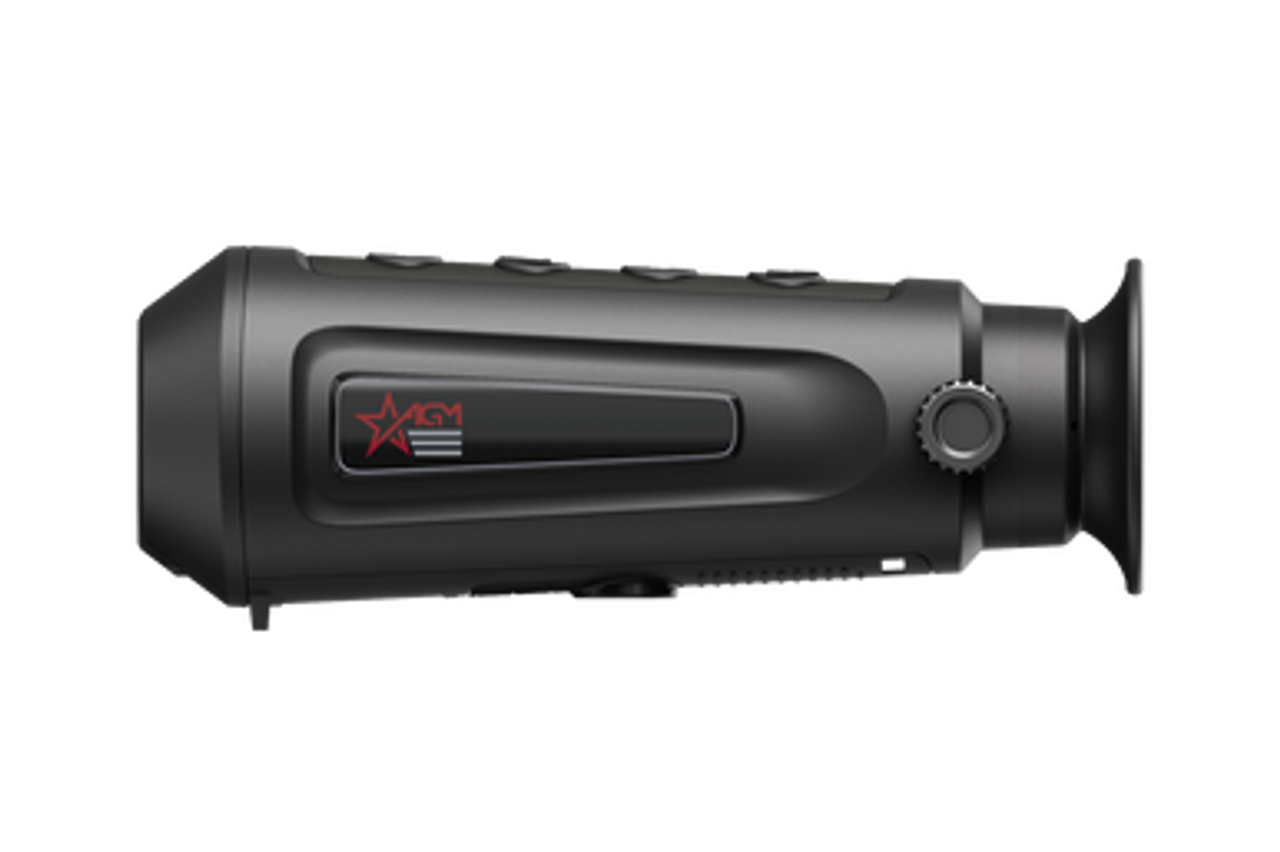

The AGM Asp-Micro TM160 thermal monocular has become synonymous with two words: Reliability and Simplicity. The Asp-Micro TM160 is a great entry-level thermal monocular for anyone wanting to experience the capabilities of thermal imaging. Equipped with a 160x120 resolution thermal sensor and a 720x540 LCOS display, it’s a great tool for hunters, campers and general outdoors enthusiasts who want or need to detect the presence of other animals or people in complete darkness. The range of uses include blood-tracking for hunters which aids in game retrieval, enhancing safety and awareness for hikers and camp sites and general nighttime curiosity. The Asp-Micro TM160 still comes equipped with many of the most popular software features that experienced thermal users have come desire: up to 10 hours of battery life from an internal rechargeable battery, Wi-Fi hotspot, AGM Connect app compatibility for exporting and sharing images and videos, 0.5-2X magnification, 8GB of internal storage with no need for a memory card and a 3 Year Transferable Warranty.
FUNCTIONS:
Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, and 4× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
Warning: California's Proposition 65
- 160×120 resolution, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR
- 720×540 resolution LCOS display
- Built-in rechargeable Lithium battery
- More than 10 hours continuous running (with Wi-Fi hotspot function off)
- Wi-Fi hotspot
- Type-C interface
- 3-Year warranty
CHARACTERISTICS
Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Refresh rate: Sensor 25 Hz
Resolution: 160x120
FOV: 24.7° x 18.7°
PACKAGE INCLUDES
- USB Cable
- Wrist Strap
- Packing Box
- Operators Manual
- Lens Tissue
- EU PLug
DOWNLOADS
Data Sheet
User Manual
EXPORT RESTRICTIONS:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
$439.00
QUICK ORDER
ADD TO CART
SPECIFICATIONS
Magnification
0.5x - 2x
Detector type
Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband
8μm to 14μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
Sensor 25 Hz / OLED 50 Hz
Aperture
F1.1
Resolution
160×120
Detection Range (6' object)
250 m/yd
NETD
less than 35 mk (@25°C), F#=1.1
Lens (focal length)
6.2 mm
Field of view (H × X)
24.7° x 18.7°
Digital zoom
1×, 2×, 4×
Display
720×540, 0.2 inch, LCOS
Storage
Built-in memory module (8 GB)
Record Video
On-board video recording
Capture Snapshot
Yes
Battery Type
Built-in rechargeable Lithium battery
Wi-Fi
Yes
Battery Operating Time
Up to 10 hours
Battery Capacity Display
Yes
Power supply
5 VDC/2 A, 1.5 W
Operating Temperature Range
-20°C to 55°C (-4°F to 131°F)
Weight
0.25 kg (0.55 lb)
Overall Dimensions
161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)
Protection Level
IP67
Specs
- Brand
- AGM
- SKU:
- 3093251001AM10
Frequently Asked Questions
What are thermal monoculars used for?
Hunters use them to scan for game in the dark, check a field before walking in, and find a deer after the shot by its body heat. The ASP-Micro TM160's wide 24.7° view and 0.5x base magnification make it handy for close work like blood tracking and looking around camp.
Is the AGM ASP-Micro TM160 a good thermal optic on a budget?
AGM built the TM160 as an entry-level thermal, and it covers the basics well: a 160x120 sensor, up to 10 hours per charge, 8 GB of storage, Wi-Fi and a 3-year transferable warranty. It detects heat out to 250 m. For identifying animals farther out, a 384 sensor is the next step up.
Is it illegal to have a thermal monocular?
Owning a thermal monocular is legal in the US. Hunting with one is regulated by each state, so check your state's rules on thermal optics and night hunting before you go out. Thermal devices also fall under US export rules, which is why we ship only to US addresses.
Does the AGM TM160 thermal monocular have night vision?
No. The TM160 is thermal only, meaning it reads heat instead of amplifying light. It works in total darkness, but it shows a heat picture rather than a normal image. If you want both in one handheld, the AGM Fuzion line adds a low-light camera next to the thermal sensor.
