Product Description

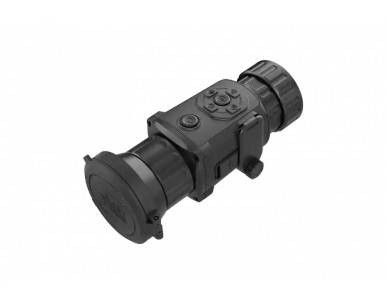

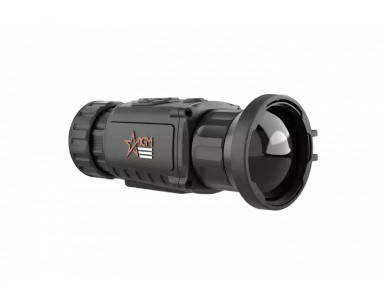

The AGM Rattler TC50-640 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Rattler TC50-640 has high sensitivity 12μm thermal detector with 640×512 resolution and 1024x768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
The product is mainly applied to scenarios such as patrolling, hunting, etc. The Rattler TC50-640 can easily be attached in front of rifle scopes with magnification up to 8x for long range use.
Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
Warning: California's Proposition 65
- Quick conversion of daytime optics into thermal imaging scope
- 12μm high sensitivity detector
- 640x512 thermal resolution
- 1024x768 resolution 0.39-inch OLED display
- 8x digital zoom
- Video recording and snapshot, built-in EMMC (16 GB)
- Supports distance measurement
- Adjustable color palettes
- Wi-Fi data transmission
- Waterproof, shockproof
- Up to 4.5 hours continuous working
- External power supply capability
- Limited 3-year non-transferable warranty
Detector type: 12 μm VOx Uncooled Focal Plane Arrays
Refresh rate: 50 Hz
Resolution: 640x512
FOV: 8.8° x 7.0°
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
SPECIFICATIONS
Palettes - Black Hot, White Hot, Red Hot, Fusion
Shock and vibration - 750 g/ms
Exit Pupil Diameter - 22 mm
Distance Measurement - Yes (Stadiometric Rangefinder)
Scene Mode - Jungle, Recognition
Hotspot - Yes
Observation Distance - 2,500 m
Detector type - 12 μm VOx Uncooled Focal Plane Arrays
Response Waveband - 8 μm to 14 μm
FFC (Flat Field Correction) - Auto, Manual, External Correction
Highest Temperature Spot Tracking - Yes
Standby Mode - Yes
Refresh rate - Sensor 50 Hz / OLED 50 Hz
Resolution - 640 x 512
Lens system - 50 mm, F1.0
Optical magnification - 1x
Power - 5 VDC/2 A, USB Type-C interface Supports external power supply
Mounting - Optional Front Quick Release Adapters for different front lens diameter or Quick
Field of view (H × X) - 8.8° x 7.0°
Monitor - 1024x768, 0.39 inch, OLED
Storage - Built-in 16 GB EMMC
Record Video - On-board video recording
Capture Snapshot - Yes
Battery Type - Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output - Yes (via USB)
Battery Operating Time - Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on)
Battery Capacity Display - Yes
Operating Temperature Range: -20°C to 55°C (-4°F to 131°F)
Weight - 0.49 kg (1.08 lb)
Overall Dimensions - 153 mm × 78 mm × 66 mm (6.0 × 3.1 × 2.6 in)
Protection Level - IP67
