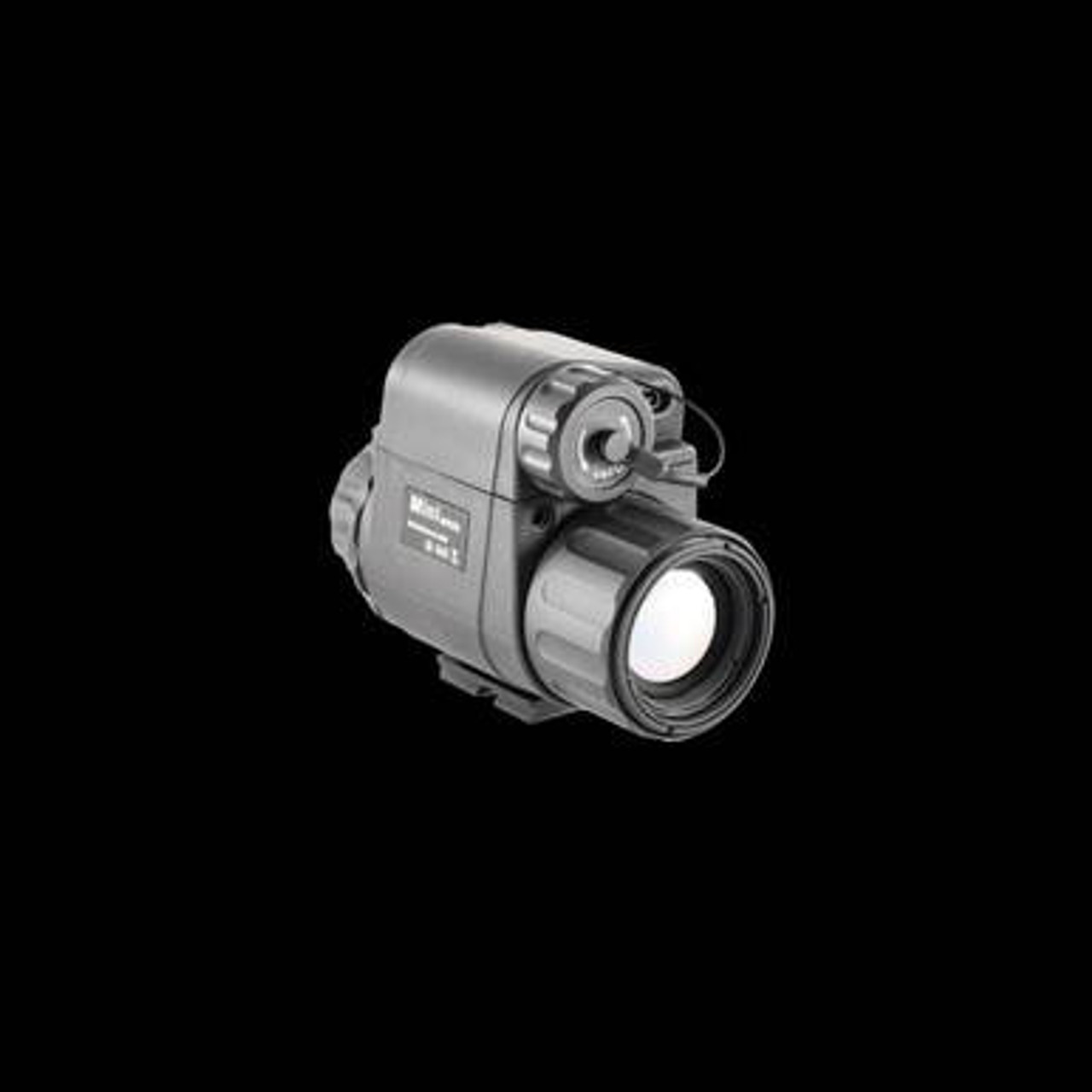

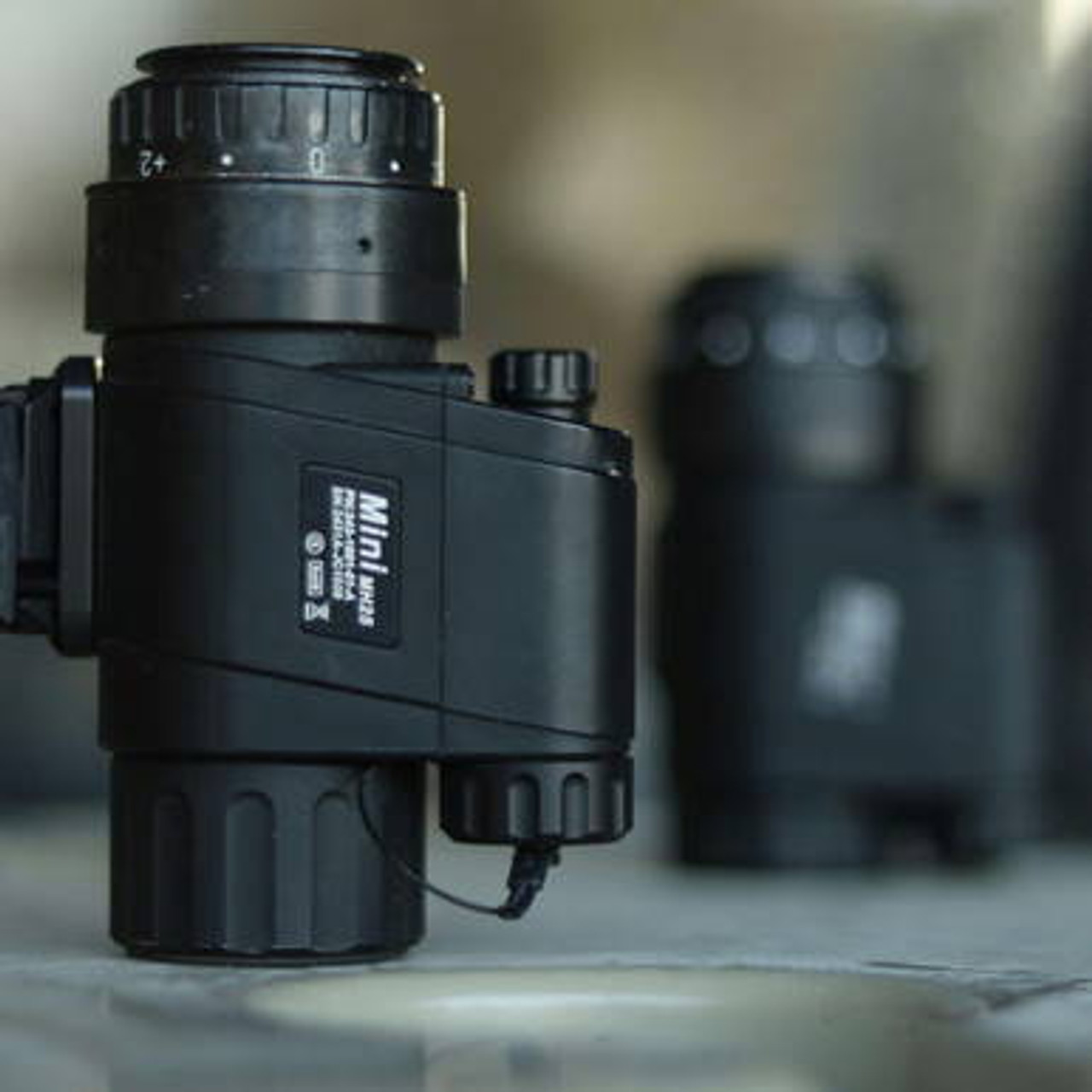

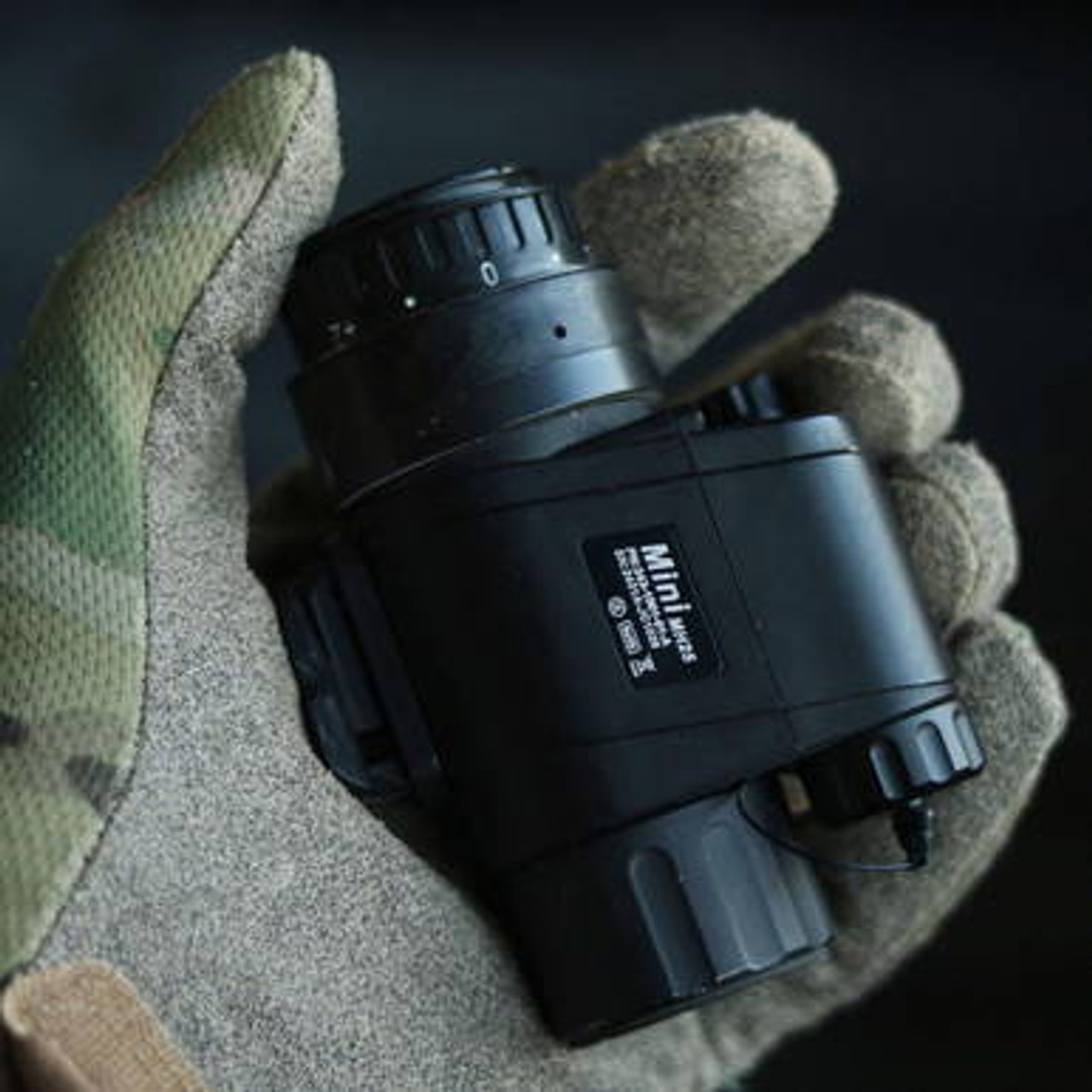

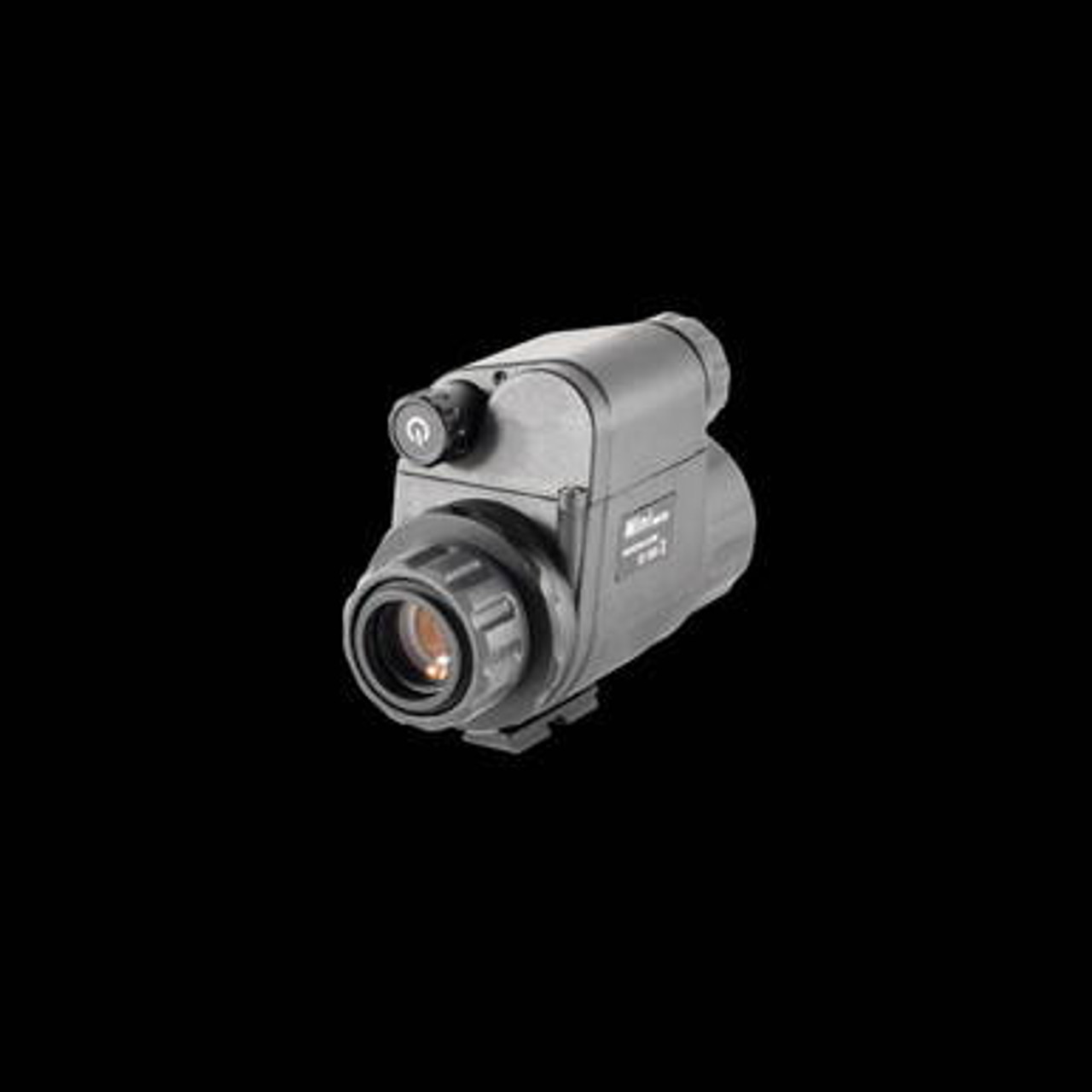

    • InfiRay MINI MH25 V2 640X512 25mm Thermal Monocular

    InfiRay Outdoor

    MSRP: $4,399.99
    $3,999.00
    (You save $400.99 )
    SKU:
    IRAY-MH25W
    UPC:
    850029093022
    Adding to cart… category.add_cart_announcement

    Product Description

    MINI MH25 640X512 25mm Thermal Monocular is a compact, lightweight thermal imager designed for handheld or helmet-mounted use. Its unique design allows for seamless operation as a handheld monocular, and it can easily transition to a helmet mount for hands-free use. The MH25 V2 is powered by a 50hz 12 μm sensor and features next-generation MATRIX III processing for an unmatched viewing experience. I addition to the features found on the original MH25, the MH25 V2 adds several highly requested features including an upgraded AMOLED display, an upgraded eyepiece, and onboard video and audio recording.

    Flexible Mounting Options and Friendly Operation

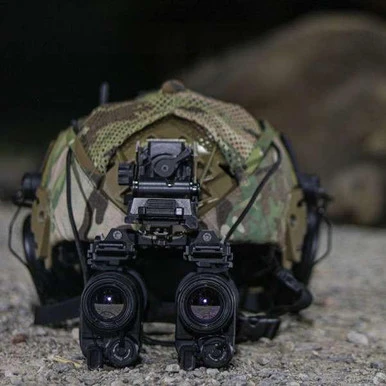

    For hands-free operation there are 2 mounting points designed to allow for a wide variety of dovetail helmet mounts. The Mini's display icons flip automatically when orientation is flipped.

    The MH25 is operated by an intuitive clearly labeled menu and user friendly rotary button. This one button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark.


    Power Supply Options
    The Mini is compatible with CR123A, CR123, 16340, and 16650 batteries. Using 1 x 16650 the Mini will run for 3 hours, and using the included power cable with a 10,000 mah USB battery the Mini will run for 18 hours. DO NOT USE 2 x CR123A batteries with the 16650 adapter, it will permanently disable your device.

    About InfiRay Sensors
    IRAY technology has been developing and producing infrared FPA detectors, thermal cores, and other thermal products outside of the US for more than a decade. IRay has completely independent intellectual property rights and is committed to providing professional thermal imaging solutions across the globe. More than 50% of IRay's employees are R&D engineers and IRay has been awarded 219 technical patents.

    • Optics

      Optical Magnification - 1X
      Digital Magnification - 8X, stepped
      Objective Focal Length - 25mm
      Objective Diameter - 25mm
      Objective F# - 1.0
      Objective Focusing Range - 2 meters to infinity
      Horizontal Angular Field of View - 17.5
      Vertical Angular Field of View - 13.1
      Detection Range - 1375 Yards
      Eyepiece Focal Length - 27mm
      Eye Relief - 20mm
      Exit Pupil - 14mm
      Diopter Range - -4 - +3
      Display Type - AMOLED
      Objective Lens Material - Germanium
      Focusing Mechanism - Manual Focus
      Display Resolution - 1280×960

    • Features & Performance

      Power Source - 16340 Battery
      Video Output - Analog RS-170/NTSC
      Image Capture -Yes
      Onboard Recording - Yes
      Bluetooth - Yes
      Wifi - Yes
      Connector Output - Power/Data
      Startup Time - Under 10 Seconds
      Warranty - 5 Years
      Run Time - 2.5+
      Connector Type - USB-C
      Mobile App - Yes
      Color Palettes - White Hot, Black Hot, Red Hot, Rainbow
      User-Updatable Firmware - YesStorage Capacity - 32GB
      External Power Source - USB

    • Environmental Specifications

      Ingress Protection - IP67
      Recoil Rating - None
      Operating Temperature Range: -4°F~122°F

    • Physical

      Housing Material - Aluminum/ABS
      Mounting Interface - MUM Rail
      Weight - 12.1
      Height - 1.77
      Width - 2.75
      Length - 5.30

    • Sensor Specifications

      Device Technology - Thermal Imaging
      Sensor Resolution - 640×512
      Sensor Pixel Size - 12μm
      Sensor Frame Rate - 50hz
      Thermal Sensitivity - <50mk
      Spectral Response - 8-12 Microns
      Sensor Type - InfiRay MICRO II
      Non-Uniformity Correction (NUC) - Manual, Automatic, Semi-Automatic











    Other Details

    5-Year Warranty with a 5-Day Repair Guarantee At iRayUSA we are first and foremost hunters and users of our products and we understand that failure is not an option. One of our primary objectives at iRayUSA is to greatly improve the customer service level for the end user. We plan on accomplishing this through offering our industry-first 1-week repair guarantee, and by only working with highly qualified Authorized Dealers. During the published warranty period, iRayUSA will repair or replace, at its discretion, any optic that becomes defective from normal use. If we cannot repair an optic in less than one week, we will offer a replacement in like or better condition. We know you’ve never seen this from a thermal manufacturer, neither have we, and that’s one of the reasons we started iRayUSA. Our warranty follows the product, and is not tied to the original owner. The warranty period is tied to the date of sale to the dealer or end user registration. This warranty only covers normal use and does not cover cosmetic damage, normal wear, intentional damage, theft, loss, any act of God or a condition caused by use other than intended. Any product that is modified, opened or tampered with will void any warranty coverage. Any serial number damage or alteration on the product will be considered modification. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. One week starts from the time of receipt of product at iRayUSA. Customers must ship the product to iRayUSA, iRayUSA will return the product at no cost. No returns will be accepted without an RMA. iRayUSA is not liable for any damages or loss incurred when shipping to iRayUSA
