Product Description

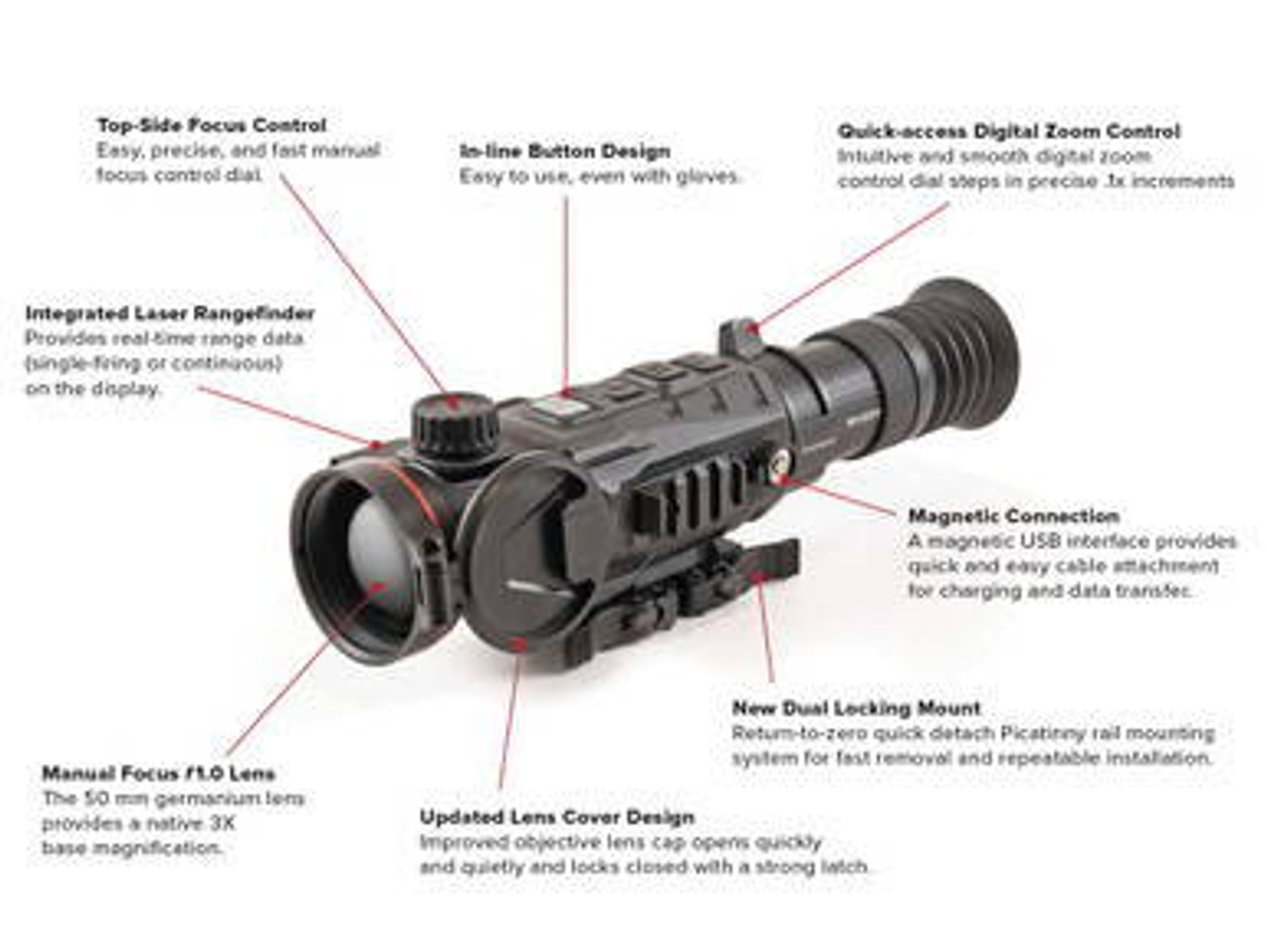

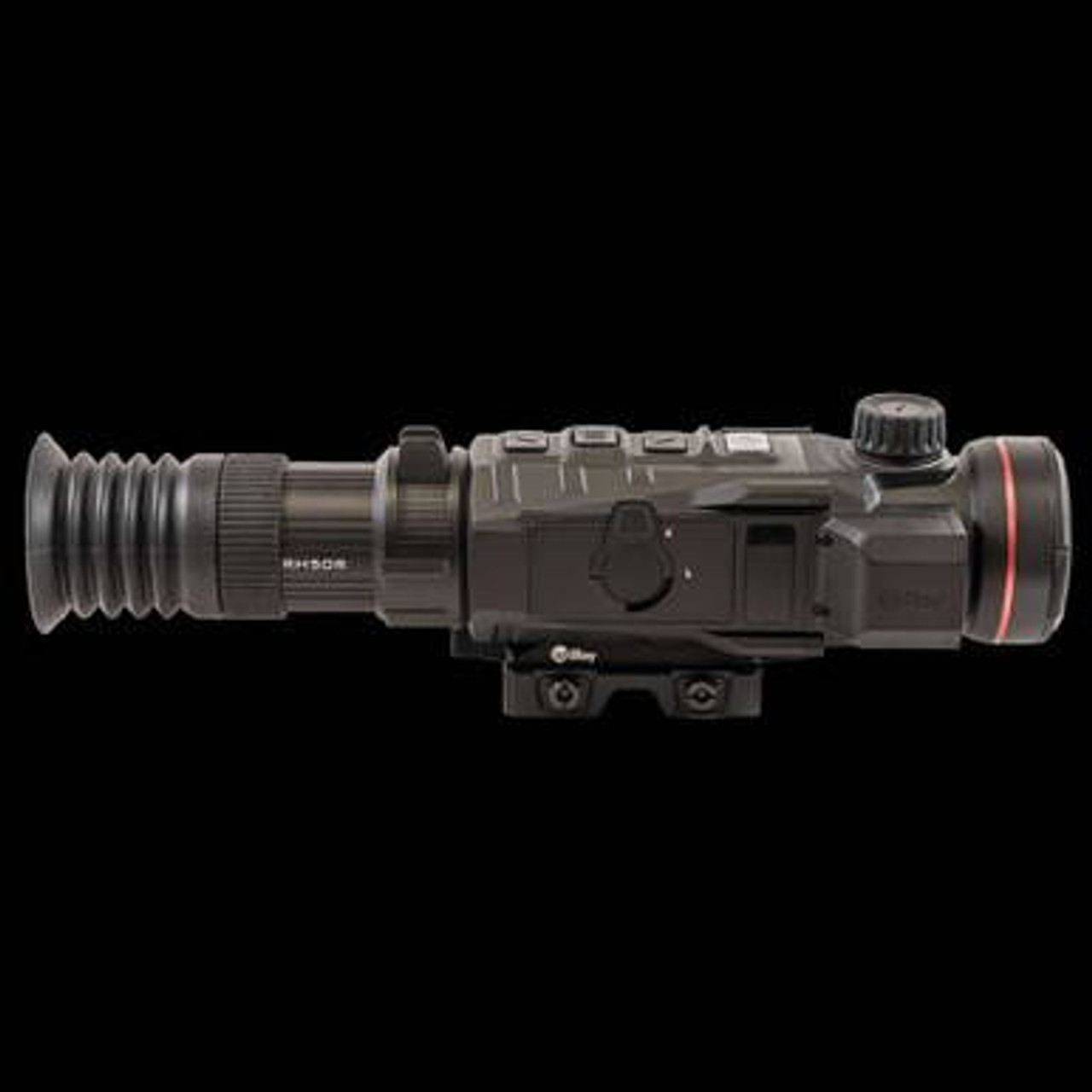

Built upon the original RICO Mk1 series, the RICO Mk2 LRF was designed with an integrated 1,200-yard capable rangefinder, a 60 Hz refresh rate, and increased sensitivity to an impressive ≤20 mK. The RICO Mk2 features a high-performance 12 µm Micro II core, a 1750-yard detection range, and an ultra-high-contrast 2560×2560 AMOLED HD display for an unparalleled viewing experience. The RICO Mk2 takes its image processing one step further with Advanced Image Correction and Automatic Image Optimization courtesy of its MATRIX III processor.

An intuitive and easy-to-use interface combines with a picture-in-picture function, 5+ hour run-time, magnesium housing, 1000 G/s2 shock-resistance, and 32 GB of internal memory. The RICO Mk2 also unlocks advanced features such as a rotating zoom lever, magnetic charging port, and recoil activated video.

Device Technology:	Thermal Imaging
Objective Focal Length:	50mm
Sensor Resolution:	640×512
Sensor Pixel Size:	12μm
Detection Range:	2400 Yards
Sensor Frame Rate:	60hz
Optical Magnification:	3X
Digital Magnification:	4X, stepped
Objective Diameter:	50mm
Objective F#:	1.0
Onboard Recording:	Yes

SKU:	RH50R
Manual:	Download

Optics

Objective Focal Length - 50mm

Detection Range - 2400 Yards

Optical Magnification - 3X

Digital Magnification - 4X, stepped

Objective Lens Material - Germanium

Horizontal Angular Field of View - 8.8°

Vertical Angular Field of View - 6.6°

Objective Diameter - 50mm

Objective F# - 1.0

Eye Relief - 60mm

Focusing Mechanism - Manual Focus

Diopter Range - -3 - +3

Display Type - AMOLED

Display Resolution - 2560×2560
Features & Performance

Reticle - 8 (7 Static, 1 DIY)

Color Palettes - Black Red, Black Green, White Red, White Green, Black White, White Black, Crimson, Viridian

Rangefinder - Integrated 1200 yd LRF

Picture-in-Picture - Yes

One-Shot Zero - Yes

Stand-by Mode - Yes

User-Updatable Firmware - Yes

Mobile App - Yes

Wifi - Yes

Image Capture - Yes

Connector Type - USB-C

Connector Output - Power/Data

Onboard Recording - Yes

Storage Capacity - 32GB

Power Source - USB-C External, IBP-5 Li-ion Battery Pack

Run Time - 5+

External Power Source - USB-C

Startup Time - <10 Seconds, Instant from Standby

Warranty - 5 Years
Environmental Specifications

Operating Temperature Range - -4°F~122°F

Ingress Protection - IP67

Recoil Rating - 1000 g/s² (300 Win./7mm Mag)
Physical

Length - 9.50

Width - 3.00

Height - 3.75

Weight - 36.63 Oz.

Housing Material - Magnesium Alloy

Mounting Interface - Picatinny MIL-STD 1913 Rail
Sensor Specifications

Sensor Type - InfiRay MICRO II

Device Technology - Thermal Imaging

Sensor Resolution - 640×512

Sensor Pixel Size - 12μm

Sensor Frame Rate - 60hz

Thermal Sensitivity - <20mk

Non-Uniformity Correction (NUC) - Manual, Automatic, Semi-Automatic

Note: In some instances the Quick-access Digital Zoom Control may become irratic or zoom on its own. you can reset the controller by performing the following procedure:

1. Slowly bring the zoom knob from the far left to the far right.
2. Long press Up button, Menu button, and Down button at same time 5-7 second, the zoom function will get reset.
3. check operation

If this does not work then contact IRAY for additional support at 800.769.7125

Other Details

5-Year Warranty with a 5-Day Repair Guarantee At iRayUSA we are first and foremost hunters and users of our products and we understand that failure is not an option. One of our primary objectives at iRayUSA is to greatly improve the customer service level for the end user. We plan on accomplishing this through offering our industry-first 1-week repair guarantee, and by only working with highly qualified Authorized Dealers. During the published warranty period, iRayUSA will repair or replace, at its discretion, any optic that becomes defective from normal use. If we cannot repair an optic in less than one week, we will offer a replacement in like or better condition. We know you’ve never seen this from a thermal manufacturer, neither have we, and that’s one of the reasons we started iRayUSA. Our warranty follows the product, and is not tied to the original owner. The warranty period is tied to the date of sale to the dealer or end user registration. This warranty only covers normal use and does not cover cosmetic damage, normal wear, intentional damage, theft, loss, any act of God or a condition caused by use other than intended. Any product that is modified, opened or tampered with will void any warranty coverage. Any serial number damage or alteration on the product will be considered modification. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. One week starts from the time of receipt of product at iRayUSA. Customers must ship the product to iRayUSA, iRayUSA will return the product at no cost. No returns will be accepted without an RMA. iRayUSA is not liable for any damages or loss incurred when shipping to iRayUSA
