Product Description
PRODUCT PARAMETERS
- DBH D6

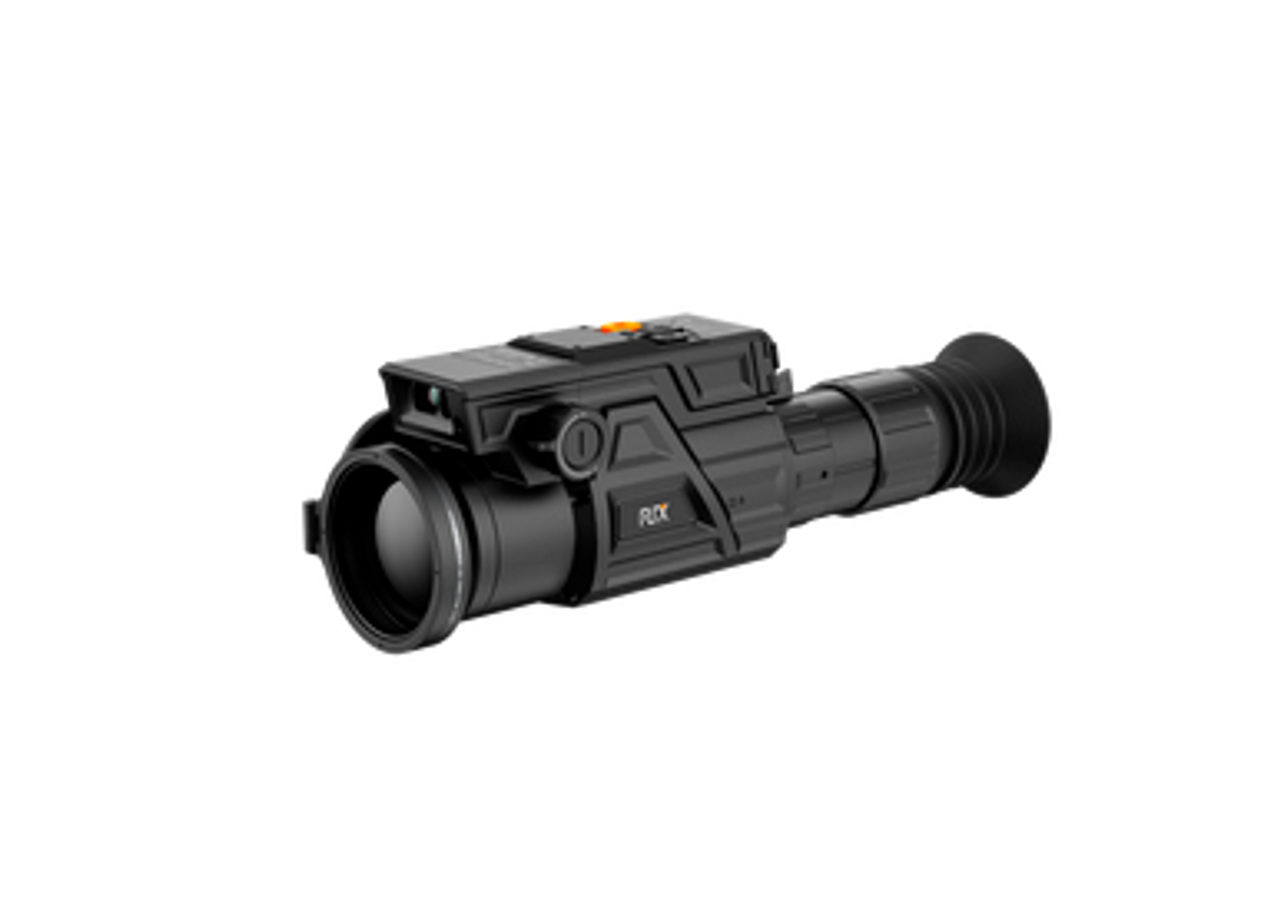

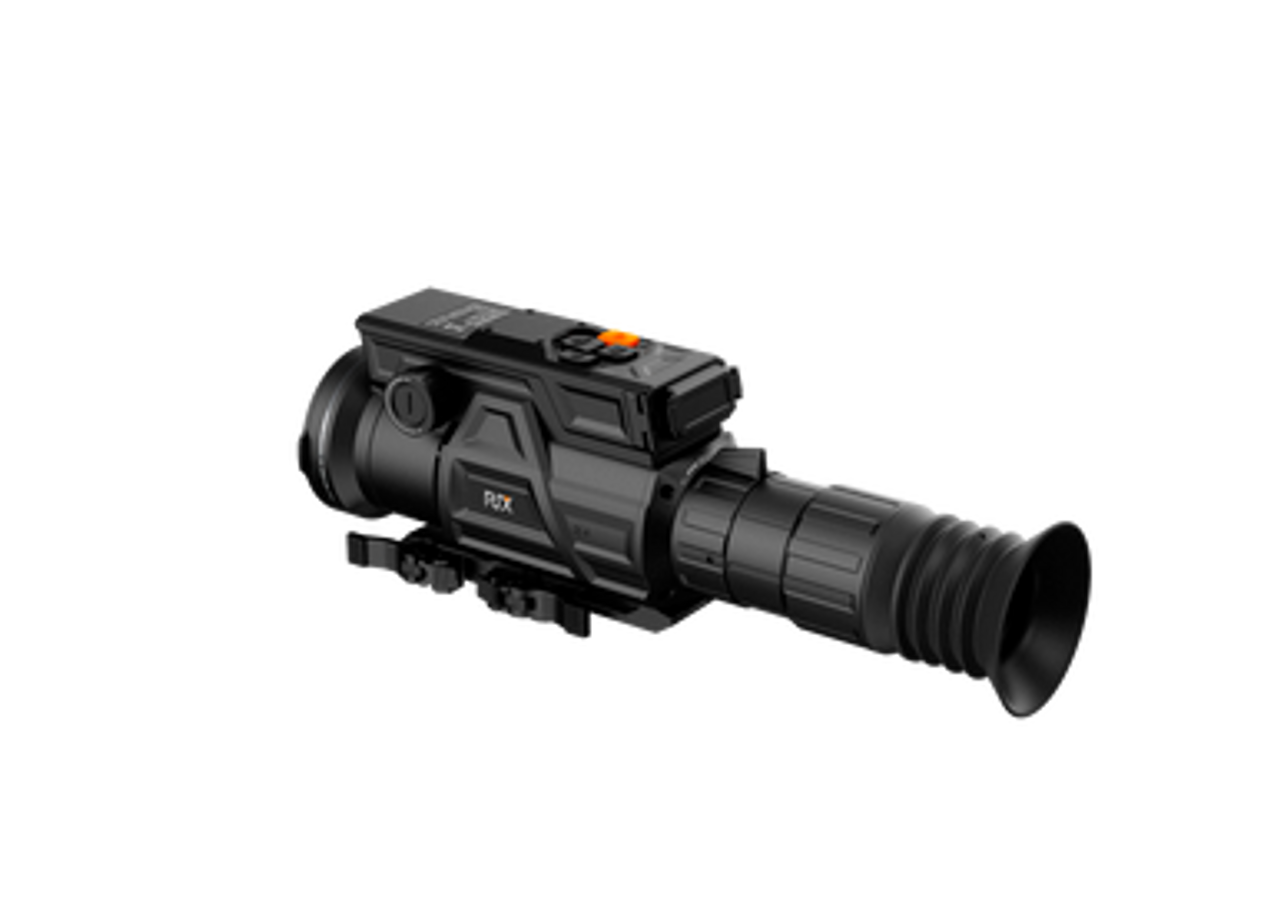

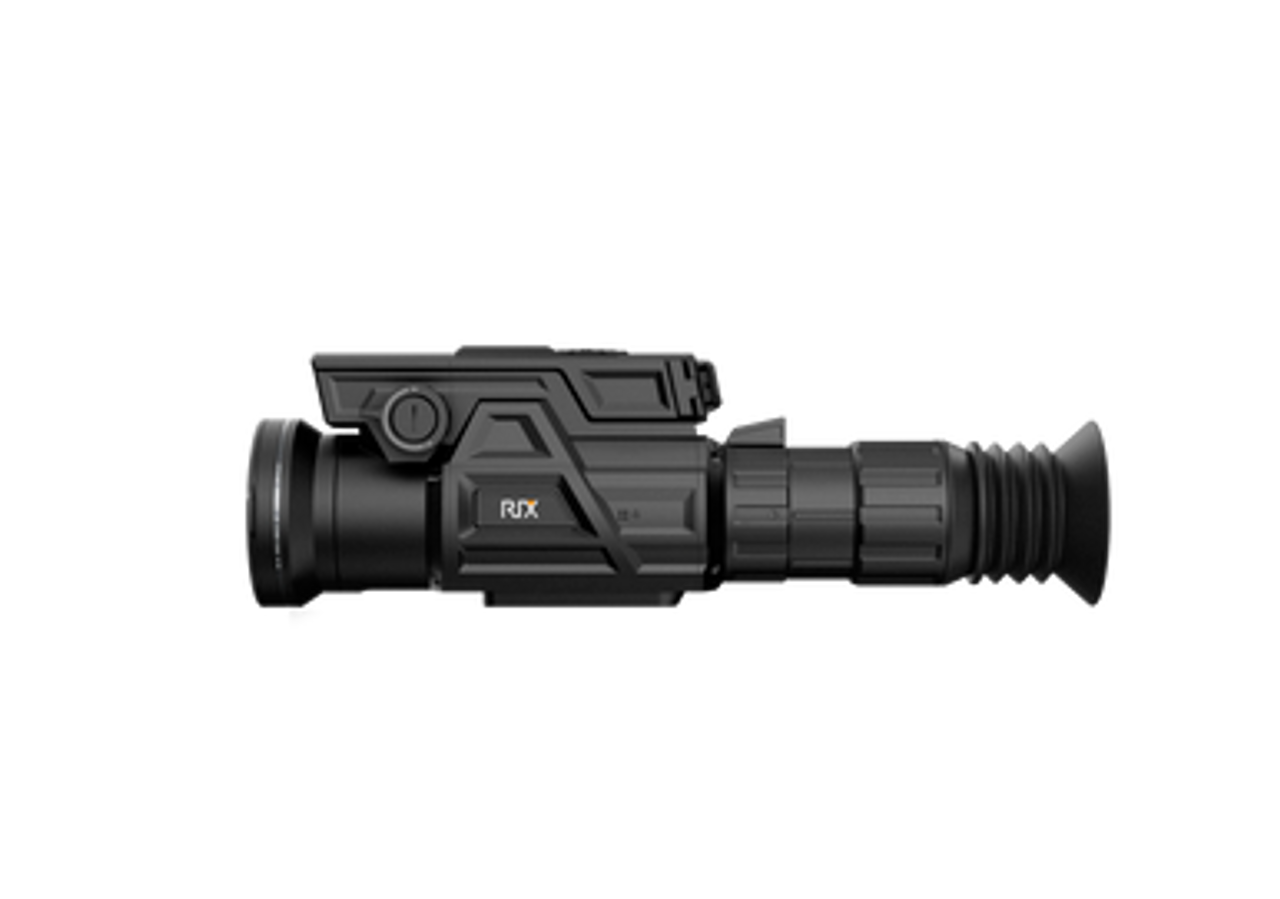

DBH D6
Sensor Specifications
Type: VOx Uncooled
Resolution: 640×512 pixels
Pixel Pitch: µm12
NETD: ≤20mK
Frame Rate: 60Hz
Optical Specifications
Objective Lens: 60 F1.0 mm
Optical Zoom: 3x
Field of View: 7.3°×5.8° degrees @ 100 yd
Digital Zoom: 1 to 6x stepped
Eye Relief: 60mm
Diopter Adjustment: -5 to +2 D
Detection Range: 3280 m/yd
Display Specifications
Type: OLED
Resolution: 2560 x 2560 pixels
LRF Specification
Type: 905nm
Max Range: 1200yd
Wi-Fi
Wireless Protocol: Wi-Fi
Frequency: 2.4GHz
Bluetooth
Frequency: 2402~2480MHz
Video Recorder
Video / Photo Resolution: 1280×1280 pixels
Video / Photo Format: .mp4 / .jpg
Built-in Memory: 64 GB
Physical Specifications
Degree of Protection: IP67 IP code
Operating Temperature Range: -4 to +122 °F
Weight: 2.9 lb
Dimensions: 10.3×3.3×3.8 inch
Connections and Compatibilities
Battery Type: 18650×2
Capacity: 3800 mAh
Operating Time on Battery Pack (at t=72°F): 8h
External Power Supply: 5V (Type C USB)
Max Recoil Power on Rifled Weapon (Eo): 1000 g/6000Joules
