Product Description
| Device Technology: | Thermal Imaging |
| Sensor Resolution: | 384×288 |
| Optical Magnification: | 1X |
| Detection Range: | 950 Yards |
| Digital Magnification: | 4X, stepped |
| Sensor Frame Rate: | 50hz |
| Sensor Pixel Size: | 17μm |
| Objective Diameter: | 19mm |
| Objective F#: | 1 |
| Objective Focal Length: | 19mm f/1.0 |
| Onboard Recording: | No |
| Datasheet: | Download |

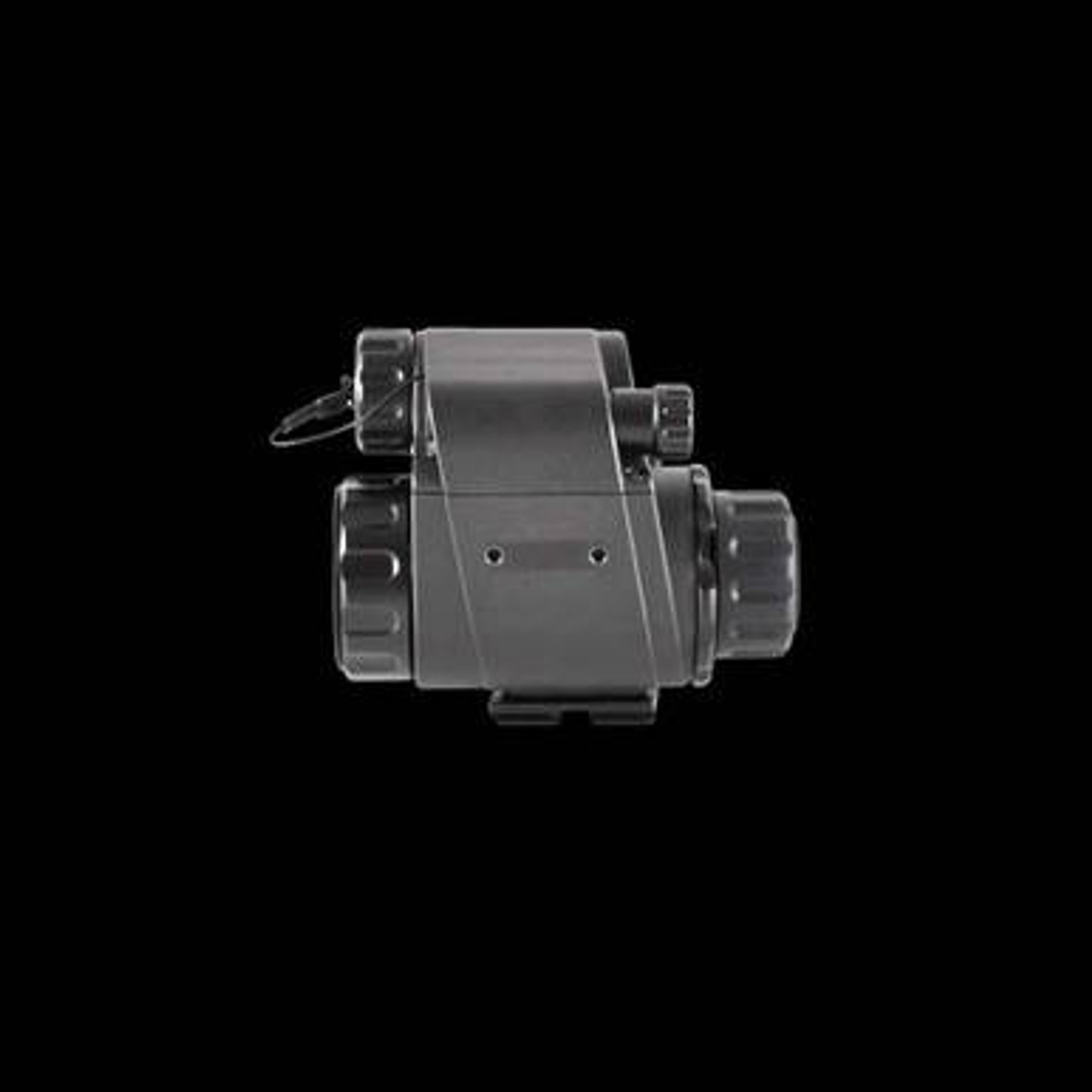

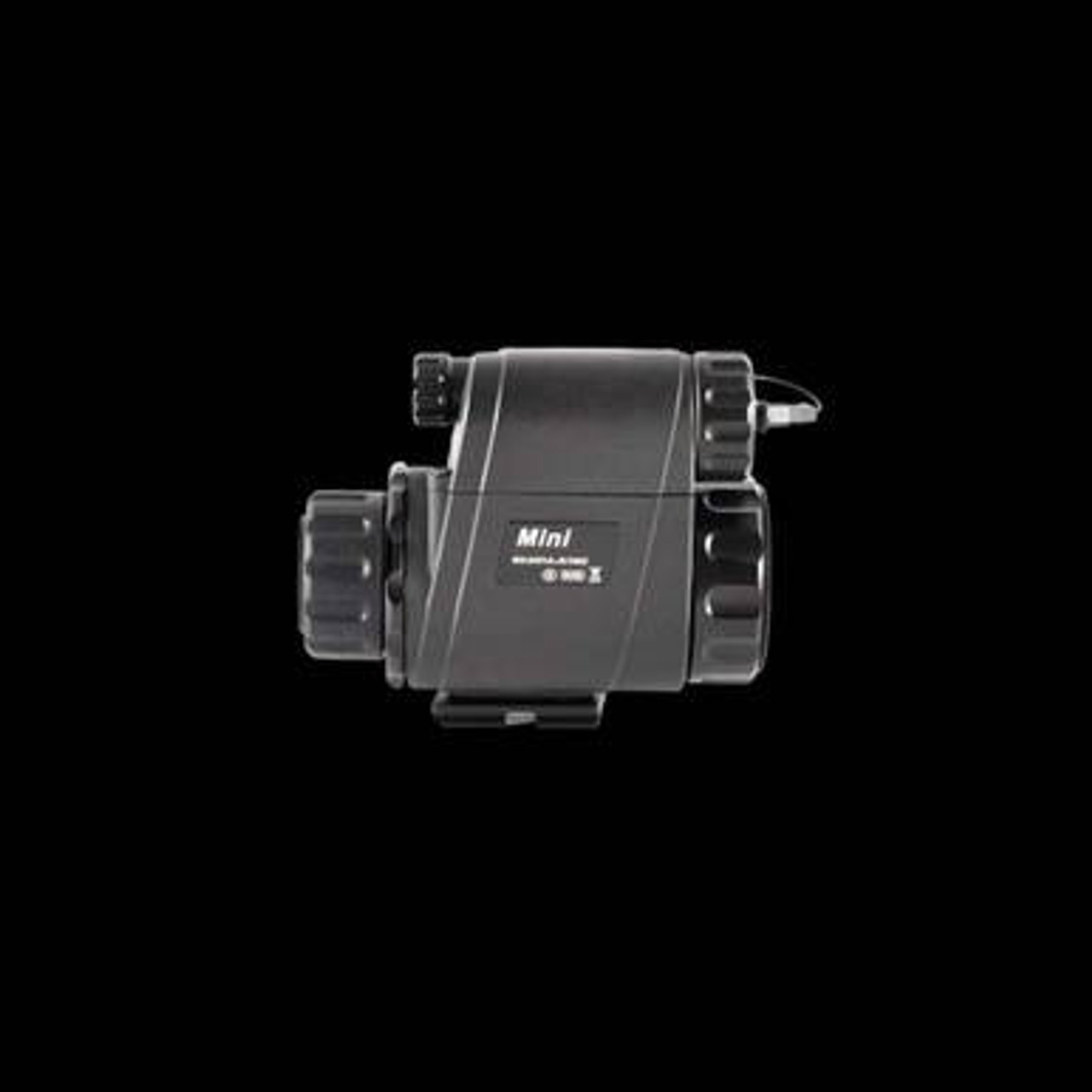

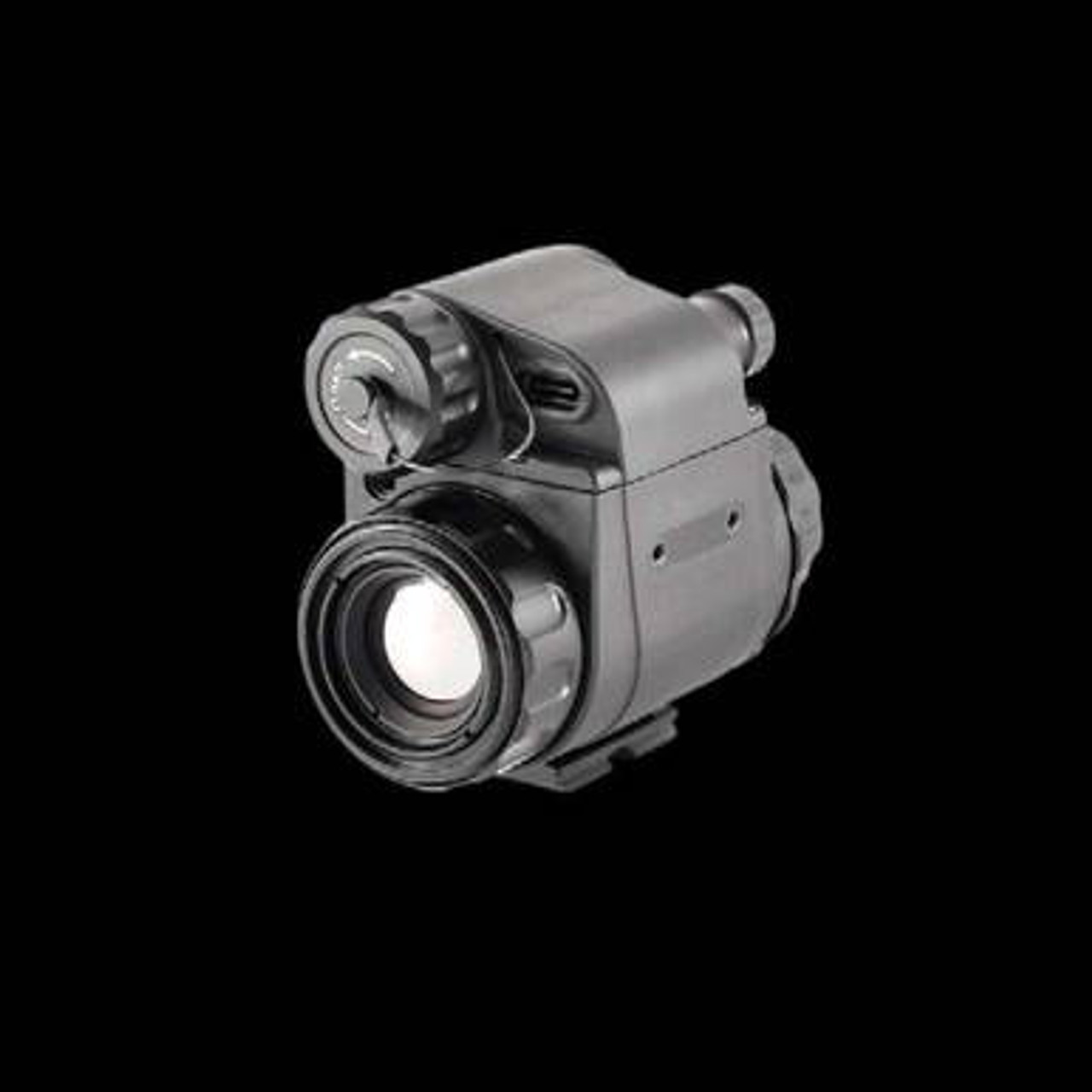

The MH19 is the smallest fully multi-functional 17 micron thermal imaging monocular on the market. It can be used as a handheld monocular or helmet mounted monocular. The IRay Mini features bluetooth, picture-in-picture, and compatibility with rechargeable 16650 batteries as well as external power supply.
Flexible Mounting Options and Friendly Operation
For hands-free operation there are 2 mounting points designed to allow for a wide variety of dovetail helmet mounts. The Mini's display icons flip automatically when orientation is flipped.
The MH25 is operated by an intuitive clearly labeled menu and user friendly rotary button. This one button operation has positive clicks with each selection and allows for quick and easy operation without having to search for any buttons in the dark.
Power Supply Options
Using the included battery extender the Mini is compatible with CR123A, CR123, 16340, and 16650 batteries. Using 1 16650 the Mini will run for 3 hours, and using the included power cable with a 10,000 mah USB battery the Mini will run for 18 hours.
About iRay Sensors
IRAY technology has been developing and producing infrared FPA detectors, thermal cores, and other thermal products outside of the US for more than a decade. IRay has completely independent intellectual property rights and is committed to providing professional thermal imaging solutions across the globe. More than 50% of IRay's employees are R&D engineers and IRay has been awarded 219 technical patents.
-
Environmental Specifications
Ingress Protection: IP67Recoil Rating: None -
Features & Performance
Warranty: 5 YearsPower Source: 1 X CRC123A or 1 X 16650Run Time: 16650 - 3hrs RCR123A - 1.5hrsVideo Output: Analog RS-170/NTSC viaImage Capture: NoOnboard Recording: NoWifi: NoCountry of Manufacture: ChinaConnector Type: USB-CStartup Time: Under 5 Seconds -
Optics
Exit Pupil: 14mmEye Relief: 20mmEyepiece Focal Length: 27mmDisplay Type: LCOSOptical Magnification: 1XDetection Range: 950 YardsDigital Magnification: 4X, steppedObjective Diameter: 19mmObjective F#: 1Horizontal Angular Field of View: 19Vertical Angular Field of View: 15Diopter Range: -4 - +3Objective Focal Length: 19mm f/1.0Display Resolution: 1280×960Objective Lens Material: GermaniumFocusing Mechanism: Manual Focus -
Physical
Housing Material: Aluminum/ABSLength: 4.6inWidth: 2.75inHeight: 1.77inWeight: 7.93 OzMounting Interface: MUM rail, Dovetail optional -
Sensor Specifications
Device Technology: Thermal ImagingSensor Resolution: 384×288Spectral Response: 8-12 MicronsSensor Frame Rate: 50hzSensor Pixel Size: 17μmThermal Sensitivity: <50mkSensor Type: InfiRay MICRO IINon-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
